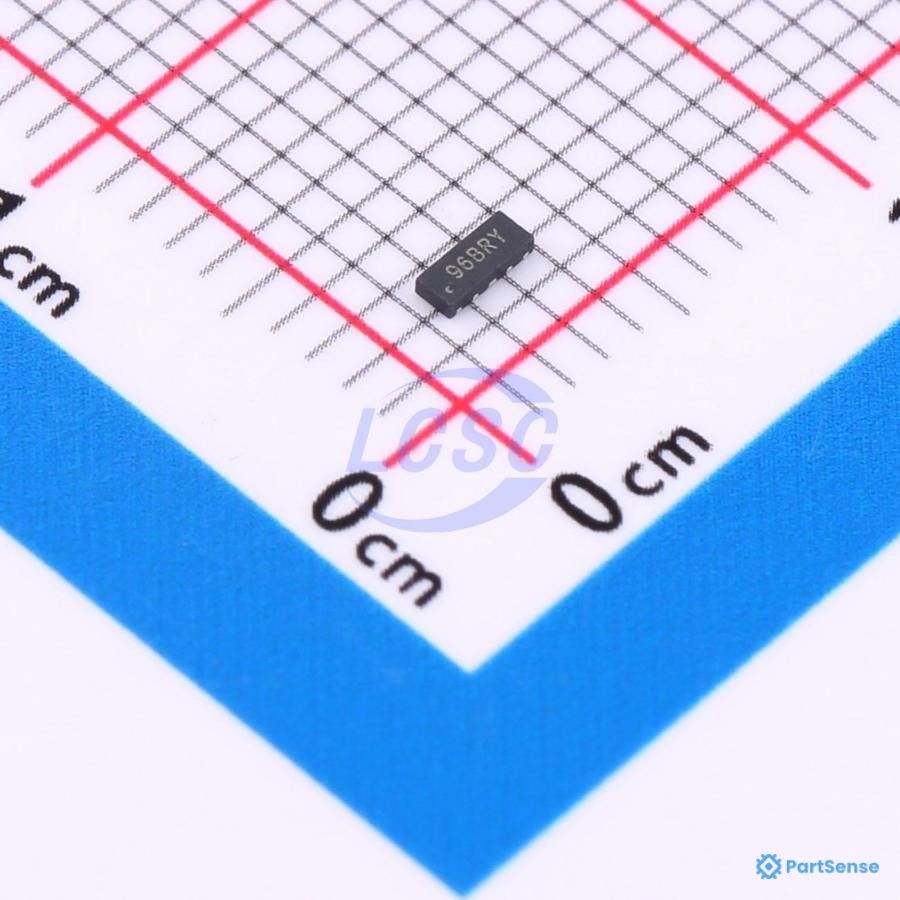

15V Clamp 4.5A Ipp Tvs Diode Surface Mount 10-USON (2.5x1)
Create a free account to add this component to your workspace, manage stock levels across multiple locations, and organize your bills of materials.
| Parameter | Value | |
|---|---|---|
| Polarity |
Unidirectional
|
|
| Reverse stand off voltage |
5V
|
|
| Clamping voltage |
15V
|
|
| Peak pulse current |
4.5A@8/20us
|
|
| Power |
60W@8/20us
|
|
| Voltage breakdown |
6V
|
|
| Reverse leakage current |
1µA
|
|
| Number of Channels |
Four channels
|
|
| Temperature |
-55°C to 125°C
|
|
| Level of protection |
IEC 61000-4-2
|
|
| Type |
ESD
|
|
| Capacitance |
600fF
|
|
| Power peak pulse |
60W
|
|
| Power line protection |
Yes
|
|
| Applications |
General
|
|
| Capacitance @ frequency |
300fF@1MHz
|
|
| Mounting Type |
SMD
|
|
| Package |
10-UFDFN; 10-USON (2.5x1)
|
Document details will be displayed in this section.
No RoHS/REACH compliance data available for this component yet.
Compare prices across distributors
| Quantity | LCSC | DigiKey |
|---|---|---|
| 20 |
$0.0429
Total: $0.86
|
Not Available
at this quantity
|
| 200 |
$0.0351
Total: $7.02
|
Not Available
at this quantity
|
| 600 |
$0.0312
Total: $18.72
|
Not Available
at this quantity
|
| 3,000 |
$0.0283
Total: $84.90
|
$0.03676
Total: $110.28
|
| 9,000 |
$0.026
Total: $234.00
|
$0.03676
Total: $330.84
|
| 30,000 |
$0.0248
Total: $744.00
|
$0.03676
Total: $1102.80
|
| Qty | Unit Price | Total |
|---|---|---|
| 20 | $0.0429 | $0.86 |
| 200 | $0.0351 | $7.02 |
| 600 | $0.0312 | $18.72 |
| 3000 | $0.0283 | $84.90 |
| 9000 | $0.026 | $234.00 |
| 30000 | $0.0248 | $744.00 |
| Qty | Unit Price | Total |
|---|---|---|
| 3000 | $0.03676 | $110.28 |
