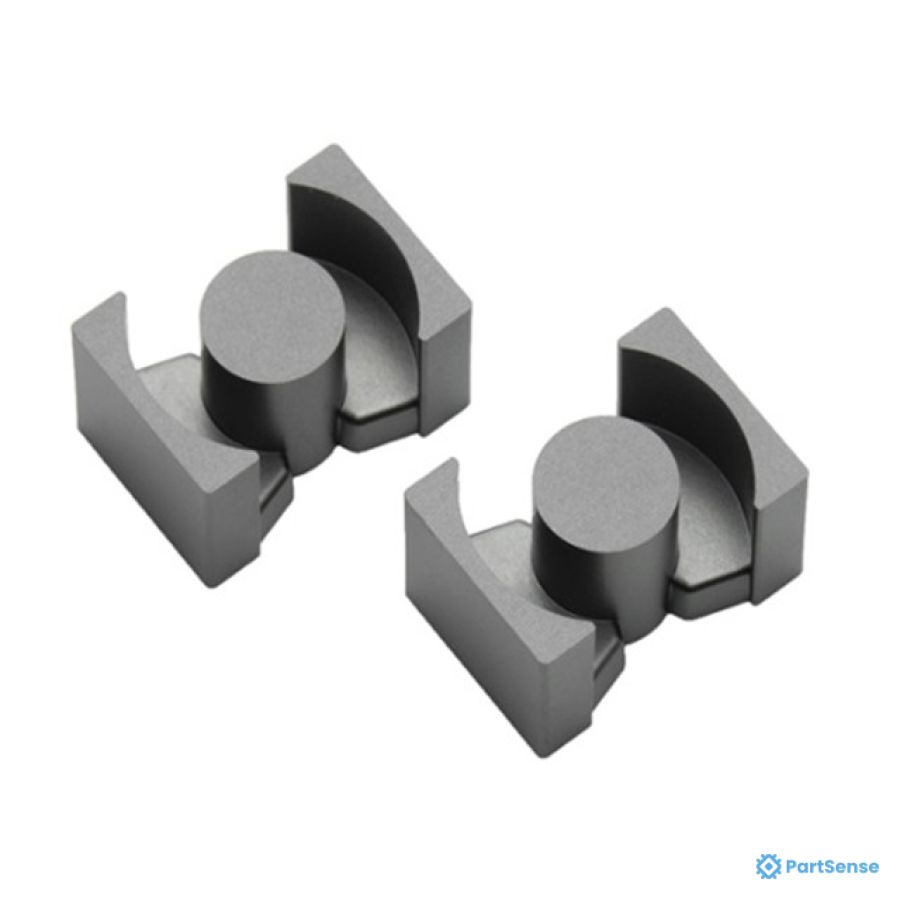

Uncoated PC95 Ferrite Core PQ Type 1.043" (26.50mm) Length 0.748" (19.00mm) Width Diameter 0.974" (24.75mm) Height
Create a free account to add this component to your workspace, manage stock levels across multiple locations, and organize your bills of materials.
| Parameter | Value | |
|---|---|---|
| Type |
PQ
|
|
| Package |
PQ 26 x 25
|
|
| Composition |
PC95
|
|
| Inductance |
6.52µH
|
|
| Tolerance |
±25%
|
|
| Gap |
Ungapped
|
|
| Core factor mm⁻¹ |
0.47
|
|
| Effective length mm |
55.5
|
|
| Effective area mm² |
118
|
|
| Effective magnetic volume mm³ |
6530
|
|
| Finish |
Uncoated
|
|
| Thickness |
0.974" (24.75mm)
|
|
| Length |
1043" (26.50mm)
|
|
| Width |
0.748" (19.00mm)
|
