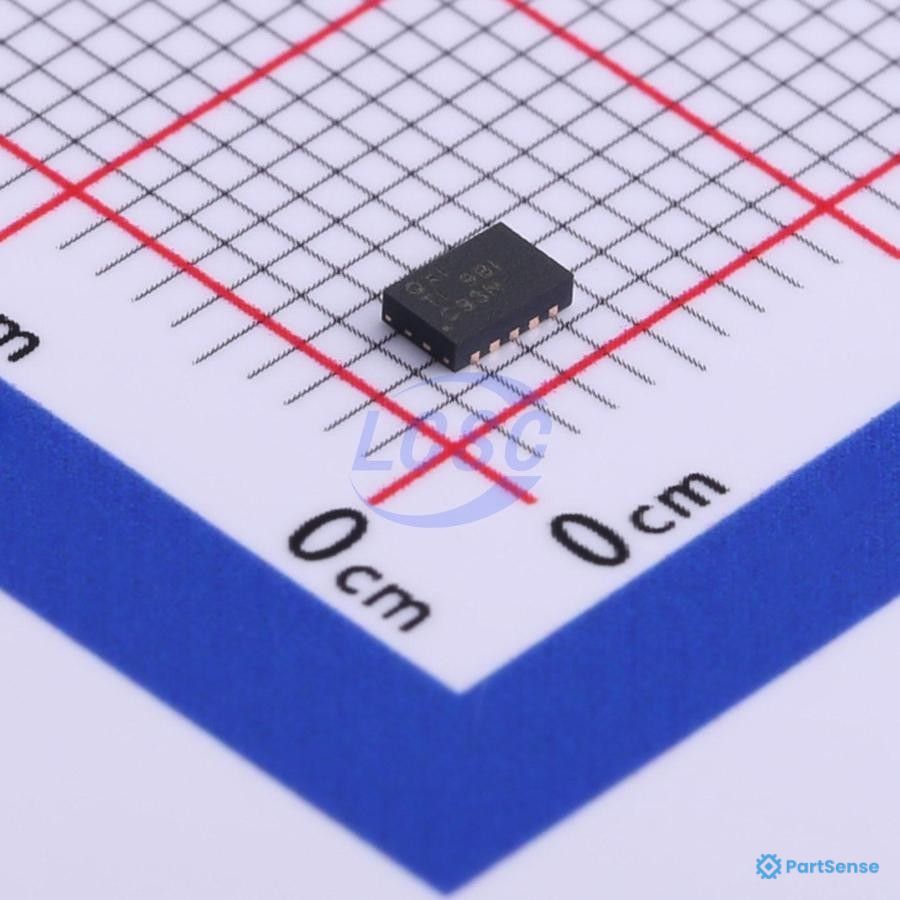

Texas Instruments PS74646498 - Battery Management 800mA Sgl-Inp Li-Ion Solar Batt Charger A 595-BQ24210DQCT
Images are property of their respective owners, including LCSC, DigiKey, Mouser, TME, element14, Farnell, Newark and Future Electronics
Battery Management

Texas Instruments BQ24210DQCR

Battery Management 800mA Sgl-Inp Li-Ion Solar Batt Charger A 595-BQ24210DQCT

Datasheet
3 distributors in stock 3 distributors MSL 2
Package / Case: 10-WFDFN Exposed Pad; 10-WSON (3x2) Voltage: 3.5V to 18V Current: 800mA; 9µA Temp: 0°C to 125°C
Component Details
Manufacturer Texas Instruments
MPN BQ24210DQCR
PartSense # PS74646498
Availability 3 in-stock / 3 distributors
Classification
Category Battery Management
Product Status Active
MSL Level 2

Start tracking your inventory today.

Create a free account to add this component to your workspace, manage stock levels across multiple locations, and organize your bills of materials.

  • Inventory visibility
  • Lot & batch tracking
  • Project organization
Parameter Value
The chip type
Charging IC
Input Voltage
3.5V to 18V
Current
800mA; 9µA
Charging saturation voltage
4.2V
End off voltage
800mV
Type of battery
Lithium Battery
Number of Cells
1
Temperature
0°C to 125°C
Battery temperature detection
Support
Features
Automatic recharge; Constant voltage charging; Overcurrent Protection; Programmable charging current; Short-Circuit Protection; Undervoltage lockout
Battery chemistry
Lithium Ion
Current charging
Constant - Programmable
Fault protection
Over Temperature; Short Circuit
Battery pack voltage
4.2V
Supply Voltage Maximum
18V
Mounting Type
SMD
Package
10-WFDFN Exposed Pad; 10-WSON (3x2)

Where to Buy the BQ24210DQCR

Price Comparison

Compare prices across distributors

Quantity LCSC DigiKey Mouser
1
$2.4577
Total: $2.46
$3.39
Total: $3.39
$3.39
Total: $3.39
10
$2.09
Total: $20.90
$2.546
Total: $25.46
$2.55
Total: $25.50
25
$2.09
Total: $52.25
$2.3352
Total: $58.38
$2.34
Total: $58.50
30
$1.8615
Total: $55.85
$2.3352
Total: $70.06
$2.34
Total: $70.20
100
$1.6266
Total: $162.66
$2.1027
Total: $210.27
$2.11
Total: $211.00
141
$1.6266
Total: $229.35
$2.13
Total: $300.33
$2.11
Total: $297.51
250
$1.6266
Total: $406.65
$1.99188
Total: $497.97
$2.00
Total: $500.00
500
$1.5197
Total: $759.85
$1.96604
Total: $983.02
$1.97
Total: $985.00
1,000
$1.4743
Total: $1474.30
$1.96604
Total: $1966.04
$1.92
Total: $1920.00
3,000
$1.4743
Total: $4422.90
$1.80226
Total: $5406.78
$1.80
Total: $5400.00
6,000
$1.4743
Total: $8845.80
$1.80226
Total: $10813.56
$1.78
Total: $10680.00
Prices shown are per unit in USD

LCSC

C524795
363 in stock
$2.4577 USD
Unit price (1 pc)

Volume pricing

Qty Unit Price Total
1 $2.4577 $2.46
10 $2.09 $20.90
30 $1.8615 $55.85
100 $1.6266 $162.66
500 $1.5197 $759.85
1000 $1.4743 $1474.30
Buy from LCSC

DigiKey

296-BQ24210DQCRTR-ND
98,507 in stock
$3.39 USD
Unit price (1 pc)

Volume pricing

Qty Unit Price Total
1 $3.39 $3.39
10 $2.546 $25.46
25 $2.3352 $58.38
100 $2.1027 $210.27
141 $2.13 $300.33
250 $1.99188 $497.97
500 $1.96604 $983.02
3000 $1.80226 $5406.78
Buy from DigiKey

Mouser

595-BQ24210DQCR
3,763 in stock
$3.39 USD
Unit price (1 pc)

Volume pricing

Qty Unit Price Total
1 $3.39 $3.39
10 $2.55 $25.50
25 $2.34 $58.50
100 $2.11 $211.00
250 $2.00 $500.00
500 $1.97 $985.00
1000 $1.92 $1920.00
3000 $1.80 $5400.00
6000 $1.78 $10680.00
Buy from Mouser
