Nexperia 74HC595PW-Q100,118

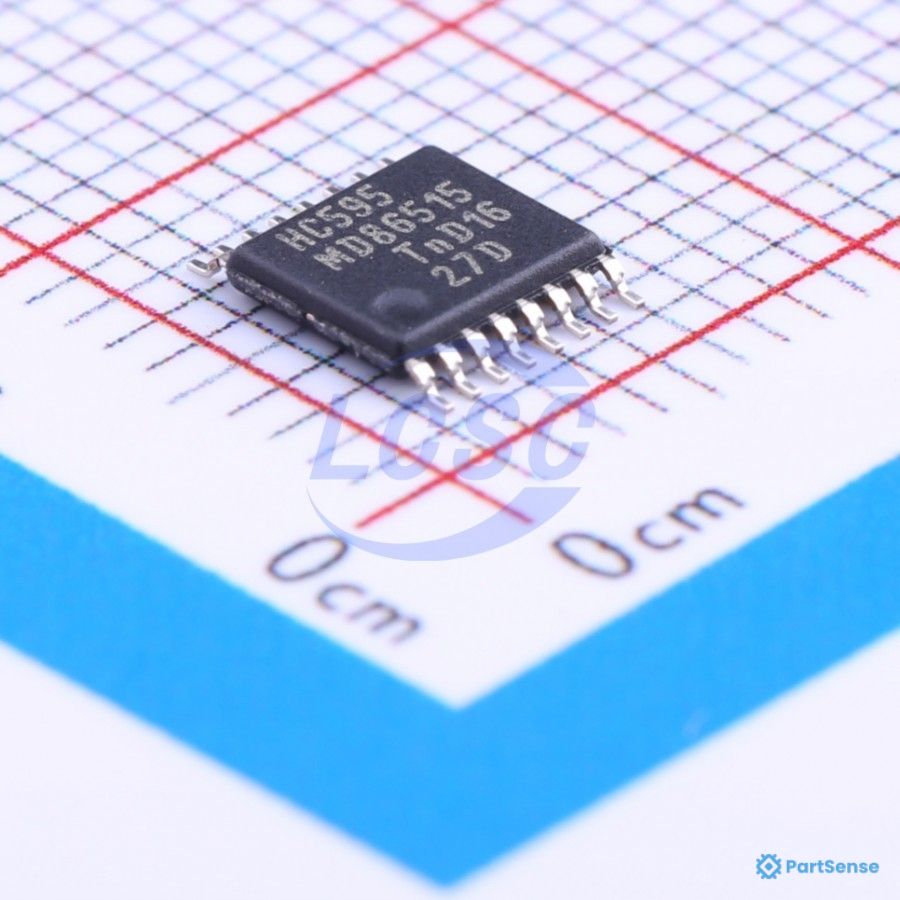

74HC Series 6 V 8-Bit Serial-In Serial or Parallel-Out Shift Register - TSSOP-16

Datasheet
6 distributors in stock 7 distributors MSL 1
Package / Case: 16-TSSOP; 16-TSSOP (0.173", 4.40mm Width); TSSOP Voltage: 2V Current: 35mA Power: 500mW Temp: -40°C to 125°C
Component Details
Manufacturer Nexperia
MPN 74HC595PW-Q100,118
PartSense # PS96742001
Availability 6 in-stock / 7 distributors
Classification
Category Counter Shift Registers
Product Status Active
MSL Level 1

Start tracking your inventory today.

Create a free account to add this component to your workspace, manage stock levels across multiple locations, and organize your bills of materials.

  • Inventory visibility
  • Lot & batch tracking
  • Project organization
Parameter Value
Ic output type
Tri State
Package
16-TSSOP; 16-TSSOP (0.173", 4.40mm Width); TSSOP
Supply Voltage Minimum
2V
No of elements
1 Element
Temperature
-40°C to 125°C
Pin Count
16
Automotive qualification standard
AEC-Q100
Logic ic base number
74595
Product range
74HC
No of bits per element
8 Bit
Qualification
AEC-Q100
Supply Voltage Maximum
6V
Shift register function
Parallel; Serial
Logic ic family
74HC
Base number
74HC595
Type
Shift Register; StandardCMOS
Output
Tri-State
Number of elements
1
Number of bits per element
8
Function
Serial to Parallel; Serial-to-Serial or Parallel
Input Voltage
2V to 6V
Grade
Automotive
Mounting Type
SMD
Frequency
108MHz
Series
74HC
Power
500mW
Propagation delay
15ns@6V,50pF
Output Current
35mA
Resolution
8
Features
Asynchronous clear function; Output enable
