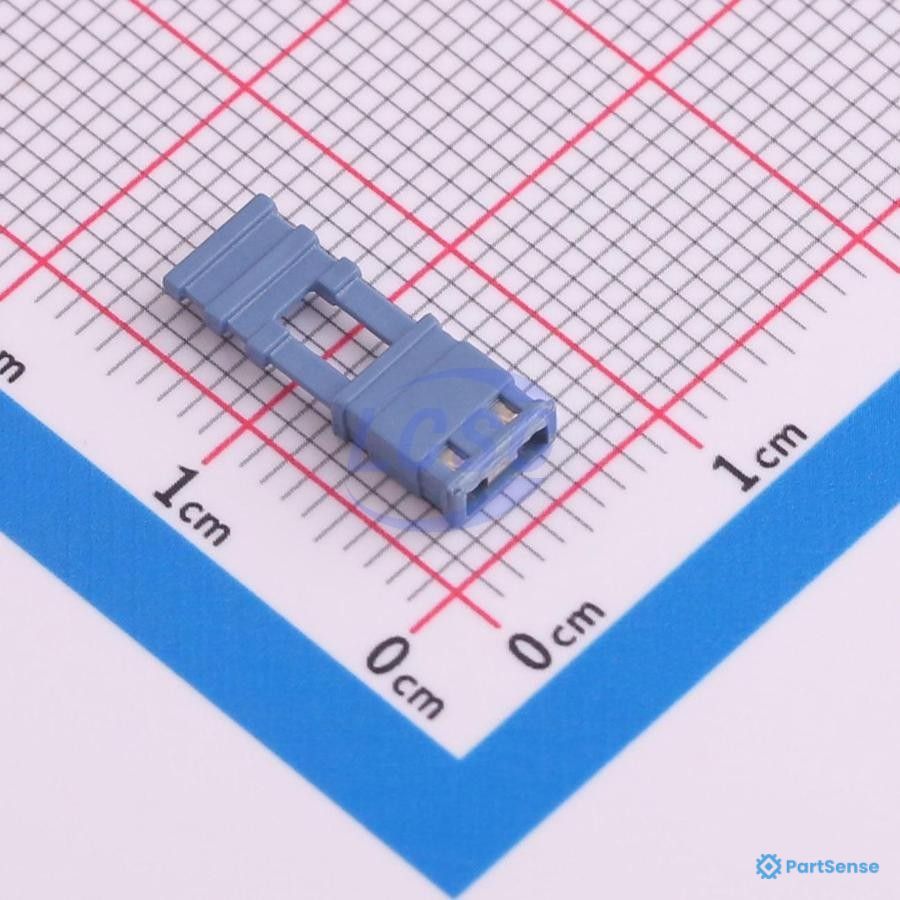

Harwin PS98069750 - 2 (1 x 2) Position Shunt Connector Blue Closed Top, Grip 0.100" (2.54mm) Gold
Images are property of their respective owners, including LCSC, DigiKey, Mouser, TME, element14, Farnell, Newark and Future Electronics
Headers & Wire Housings

Harwin M7683-05

2 (1 x 2) Position Shunt Connector Blue Closed Top, Grip 0.100" (2.54mm) Gold

Datasheet
6 distributors in stock 7 distributors MSL 1
Pitch: 2.54 to 2.54 mm Voltage: 250V Current: 3A
Component Details
Manufacturer Harwin
MPN M7683-05
PartSense # PS98069750
Availability 6 in-stock / 7 distributors
Classification
Category Headers & Wire Housings
Product Status Active
MSL Level 1

Start tracking your inventory today.

Create a free account to add this component to your workspace, manage stock levels across multiple locations, and organize your bills of materials.

  • Inventory visibility
  • Lot & batch tracking
  • Project organization
Parameter Value
For use with
M20 Connectors
Type
Closed Top; Grip; Jumper
No of positions
2; 2 Positions; 2 Ways
Pitch spacing
2.54 to 2.54 mm
Type of connector
Pin strips
Connector Type
Female; Jumper
Series
Indess
Current
3A
Pin Count
2
Contact plating
Gold-plated
Flammability rating
UL94V-0
Composition
PBT; Polyester
Packaging
Bulk
Contacts pitch
2.54mm
Product range
M20
Gender
Female Sockets
Number of positions or pins
2 (1 x 2)
Pitch
0.100" (2.54mm)
Thickness
0.551" (14.00mm)
Contact finish
Gold
Contact finish thickness
5.11µin (0.130µm)
Color
Blue
Operating Voltage
250V
