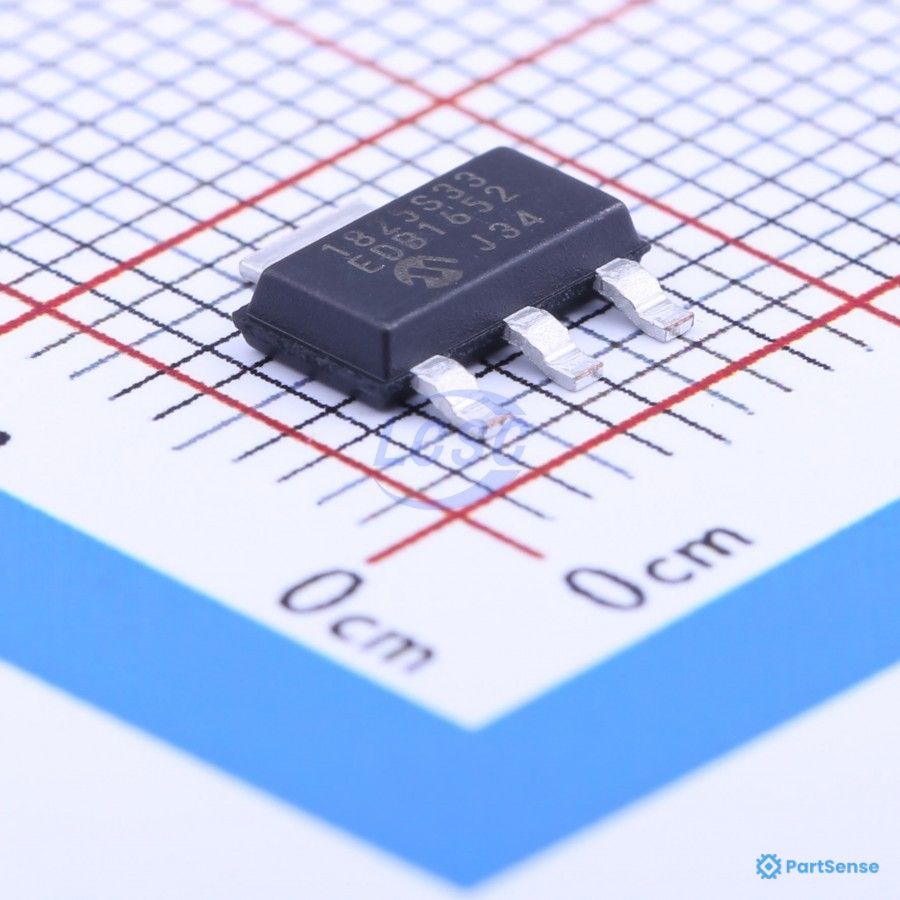

Microchip PS77600753 - Fixed LDO Voltage Regulator, 2.1V to 6V, 210mV Dropout, 3.3Vout, 500mAout, SOT-223-3
Images are property of their respective owners, including LCSC, DigiKey, Mouser, TME, element14, Farnell, Newark and Future Electronics
Linear Voltage Regulators

Microchip MCP1825S-3302E/DB

Fixed LDO Voltage Regulator, 2.1V to 6V, 210mV Dropout, 3.3Vout, 500mAout, SOT-223-3

Datasheet
This product is discontinued
6 distributors in stock 8 distributors MSL 1
Package / Case: SOT-223; SOT-223-3; SOT223-3; TO-261-4 Voltage: 2.1; 2.1V; 2.1V to 6V; 6; 6V Current: 500; 500mA Power: 60dB@(100Hz) Tolerance: ±2.5% Temp: -40; -40°C; -40°C to 125°C; 125; 125°C
Component Details
Manufacturer Microchip
MPN MCP1825S-3302E/DB
PartSense # PS77600753
Availability 6 in-stock / 8 distributors
Classification
Category Linear Voltage Regulators
MSL Level 1

Start tracking your inventory today.

Create a free account to add this component to your workspace, manage stock levels across multiple locations, and organize your bills of materials.

  • Inventory visibility
  • Lot & batch tracking
  • Project organization
Parameter Value
Configuration
Positive
Output
Fixed
Number of regulators
1
Input Voltage
2.1; 2.1V; 2.1V to 6V; 6; 6V
Output Voltage
3.3; 3.3V
Voltage Drop
210mV; 210mV@(500mA); 350mV; 350mV@500mA
Output Current
500; 500mA
Quiescent Current
120µA; 220µA
Psrr
60dB (100Hz)
Features
Enable control; Input under-voltage protection; Operating status indication; Over Temperature; Short Circuit; Thermal shutdown; Under Voltage Lockout (UVLO)
Temperature
-40; -40°C; -40°C to 125°C; 125; 125°C
Mounting Type
SMD
Package
SOT-223; SOT-223-3; SOT223-3; TO-261-4
Type of integrated circuit
Voltage regulator
Regulator Type
Fixed; LDO; Linear
Series
MCP1825S
Packaging
Tube
Number of Channels
1
Manufacturer standard package
78pcs.
Tolerance
±2.5%
Power supply rejection ratio
60dB@(100Hz)
Number of outputs
1
Dropout voltage typ @ current
210; 210mV
Product range
3.3V 500mA LDO Voltage Regulators
No of outputs
1; 1 Outputs
Polarity
Positive Output
Pin Count
3; 3 Pins
Automotive qualification standard
AEC-Q100
Dropout voltage vdo
210mV
Ldo regulator case style
SOT-223

Where to Buy the MCP1825S-3302E/DB
