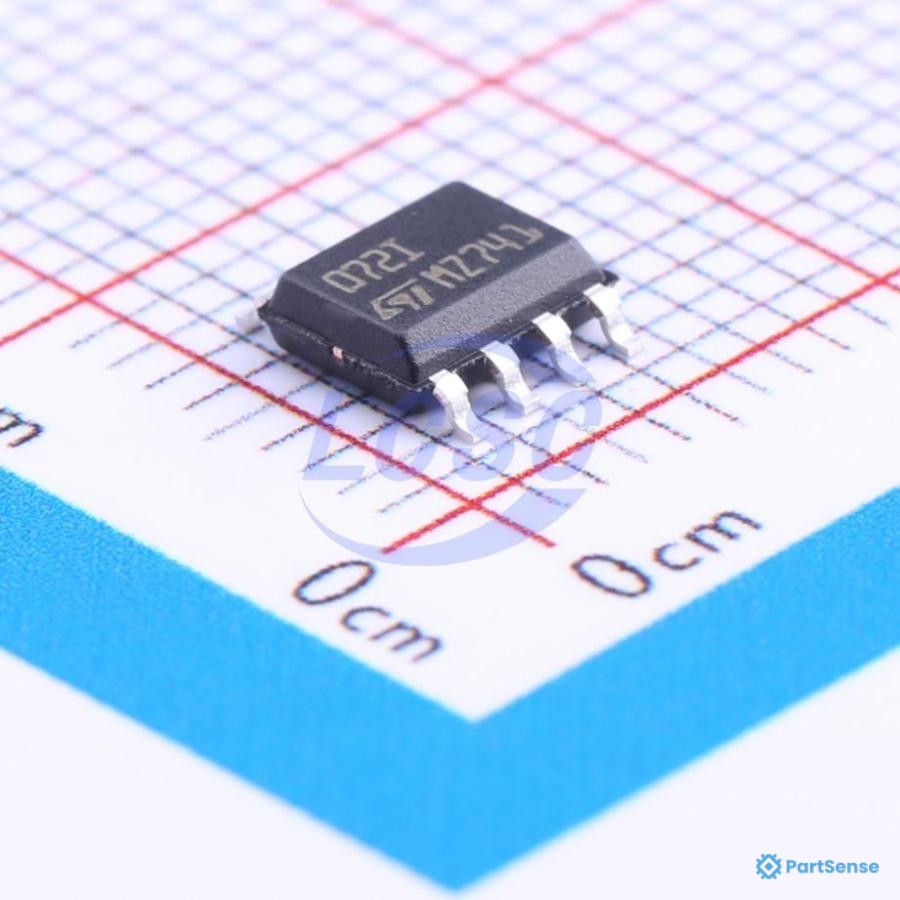

TL072 Series 36 V 4 MHz Low Noise JFET Dual Operational Amplifier - SOIC-8
Create a free account to add this component to your workspace, manage stock levels across multiple locations, and organize your bills of materials.
| Parameter | Value | |
|---|---|---|
| Number of Channels |
2
|
|
| Gain bandwidth product |
4MHz
|
|
| Ib input bias current |
20pA
|
|
| Vos input offset voltage |
3mV
|
|
| Common mode rejection ratio |
86dB
|
|
| Slew rate |
16 V/µs
|
|
| Quiescent Current |
1.4mA
|
|
| Input offset voltage drift |
10uV/°C
|
|
| Output Current |
40mA
|
|
| Temperature |
-40°C to 125°C
|
|
| Single supply |
6V to 36V
|
|
| Maximum power supply range |
36V
|
|
| Noise density |
15nV/√Hz@1kHz
|
|
| Input offset current |
5pA
|
|
| Type |
J-FET
|
|
| Number of circuits |
2
|
|
| Input Current |
20pA
|
|
| Input Voltage |
36V; 3mV; 6V
|
|
| Current supply |
1.4mA
|
|
| Grade |
Automotive
|
|
| Qualification |
AEC-Q100
|
|
| Mounting Type |
SMD
|
|
| Package |
8-SOIC (0.154", 3.90mm Width); SO8
|
|
| Type of integrated circuit |
Operational amplifier
|
|
| Bandwidth |
4MHz
|
|
| Features |
Low noise
|
|
| Input offset voltage |
3mV
|
|
| Packaging |
Reel; Tape
|
|
| Input bias current |
20pA
|
|
| Pin Count |
8
|
|
| No of amplifiers |
2 Amplifier
|
|
| Slew rate typ |
16 V/µs
|
|
| No of channels |
2
|
