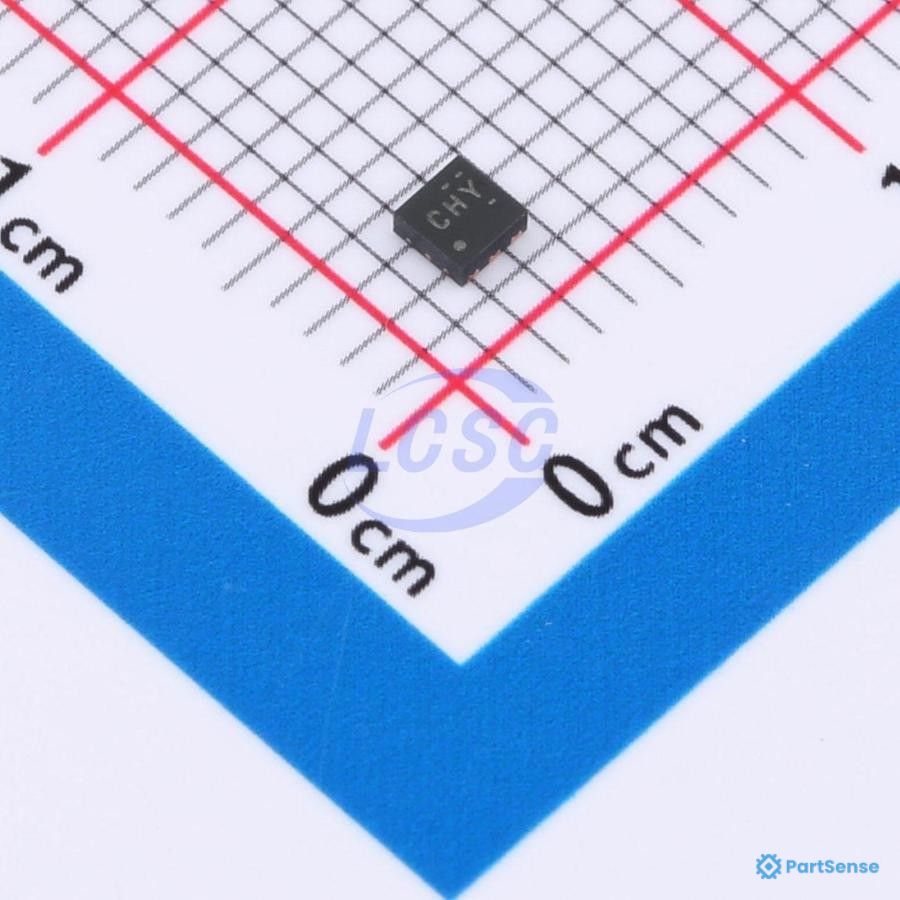

Power Switch/Driver 1:1 N-Channel 1.5A 6-WSON (2x2)
Create a free account to add this component to your workspace, manage stock levels across multiple locations, and organize your bills of materials.
| Parameter | Value | |
|---|---|---|
| Type |
General Purpose; High Side Switch; Inverting
|
|
| Number of Channels |
1
|
|
| Control input logic |
Active Low
|
|
| Maximum continuous current |
1.5A
|
|
| Input Voltage |
2.5V to 6.5V
|
|
| Drain-Source On-State Resistance |
100mΩ
|
|
| Temperature |
-40°C to 150°C
|
|
| Features |
Overtemperature protection (OTP); Slew Rate Controlled; Status Flag
|
|
| Number of outputs |
1
|
|
| Output |
1:1; N-Channel
|
|
| Configuration |
High Side
|
|
| Interface |
On/Off
|
|
| Voltage load |
2.5V to 6.5V
|
|
| Output Current |
1.5A
|
|
| Fault protection |
Current Limiting (Adjustable); Over Temperature; UVLO
|
|
| Mounting Type |
SMD
|
|
| Package |
6-WDFN Exposed Pad; 6-WSON (2x2)
|
Document details will be displayed in this section.
No RoHS/REACH compliance data available for this component yet.
Compare prices across distributors
| Quantity | LCSC | DigiKey | Mouser |
|---|---|---|---|
| 1 |
$0.5225
Total: $0.52
|
$0.86
Total: $0.86
|
$0.81
Total: $0.81
|
| 10 |
$0.5096
Total: $5.10
|
$0.613
Total: $6.13
|
$0.585
Total: $5.85
|
| 25 |
$0.5096
Total: $12.74
|
$0.552
Total: $13.80
|
$0.531
Total: $13.28
|
| 30 |
$0.5014
Total: $15.04
|
$0.552
Total: $16.56
|
$0.531
Total: $15.93
|
| 100 |
$0.4917
Total: $49.17
|
$0.4847
Total: $48.47
|
$0.471
Total: $47.10
|
| 250 |
$0.4917
Total: $122.93
|
$0.4526
Total: $113.15
|
$0.442
Total: $110.50
|
| 500 |
$0.4917
Total: $245.85
|
$0.4332
Total: $216.60
|
$0.425
Total: $212.50
|
| 1,000 |
$0.4917
Total: $491.70
|
$0.41769
Total: $417.69
|
$0.411
Total: $411.00
|
| 3,000 |
$0.4917
Total: $1475.10
|
$0.39753
Total: $1192.59
|
$0.391
Total: $1173.00
|
| 6,000 |
$0.4917
Total: $2950.20
|
$0.38788
Total: $2327.28
|
$0.387
Total: $2322.00
|
| 9,000 |
$0.4917
Total: $4425.30
|
$0.38305
Total: $3447.45
|
$0.387
Total: $3483.00
|
| 15,000 |
$0.4917
Total: $7375.50
|
$0.3777
Total: $5665.50
|
$0.387
Total: $5805.00
|
| 21,000 |
$0.4917
Total: $10325.70
|
$0.37457
Total: $7865.97
|
$0.387
Total: $8127.00
|
| Qty | Unit Price | Total |
|---|---|---|
| 1 | $0.5225 | $0.52 |
| 10 | $0.5096 | $5.10 |
| 30 | $0.5014 | $15.04 |
| 100 | $0.4917 | $49.17 |
| Qty | Unit Price | Total |
|---|---|---|
| 1 | $0.86 | $0.86 |
| 10 | $0.613 | $6.13 |
| 25 | $0.552 | $13.80 |
| 100 | $0.4847 | $48.47 |
| 250 | $0.4526 | $113.15 |
| 500 | $0.4332 | $216.60 |
| 1000 | $0.41769 | $417.69 |
| 3000 | $0.39753 | $1192.59 |
| 6000 | $0.38788 | $2327.28 |
| 9000 | $0.38305 | $3447.45 |
| 15000 | $0.3777 | $5665.50 |
| 21000 | $0.37457 | $7865.97 |
| Qty | Unit Price | Total |
|---|---|---|
| 1 | $0.81 | $0.81 |
| 10 | $0.585 | $5.85 |
| 25 | $0.531 | $13.28 |
| 100 | $0.471 | $47.10 |
| 250 | $0.442 | $110.50 |
| 500 | $0.425 | $212.50 |
| 1000 | $0.411 | $411.00 |
| 3000 | $0.391 | $1173.00 |
| 6000 | $0.387 | $2322.00 |
