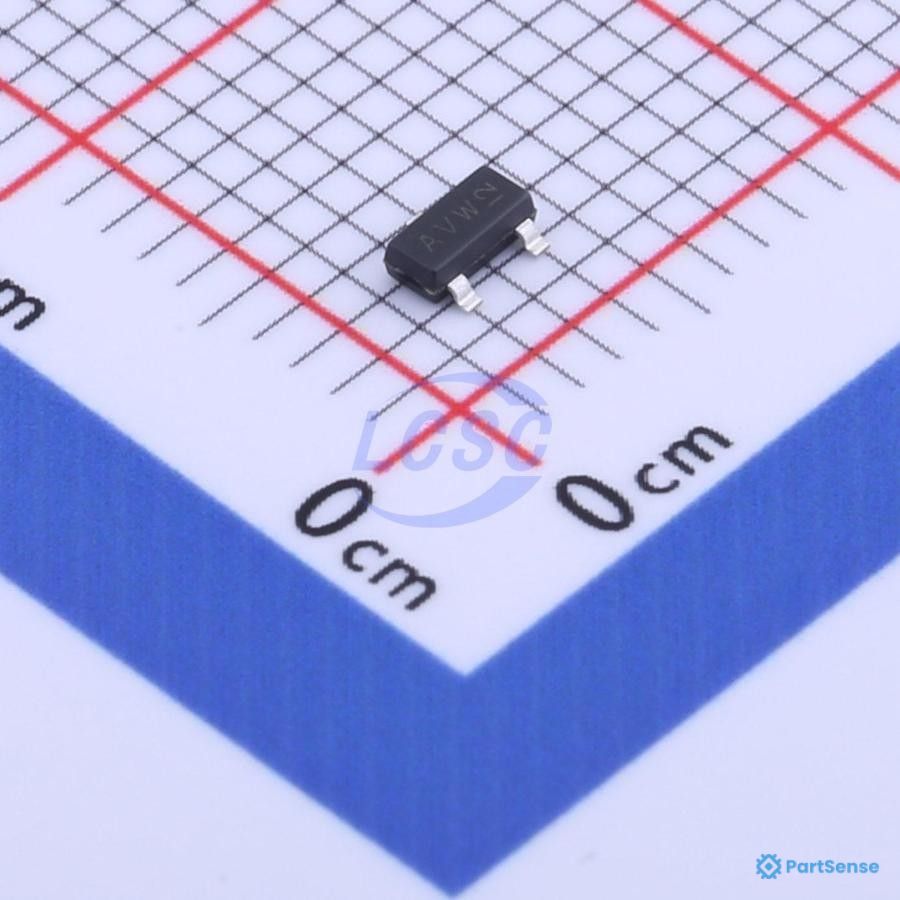

TL431 Series 36 V Surface Mount Adjustable Precision Shunt Regulator - SOT-23
Create a free account to add this component to your workspace, manage stock levels across multiple locations, and organize your bills of materials.
| Parameter | Value | |
|---|---|---|
| Type of integrated circuit |
Voltage reference source
|
|
| Reference voltage |
2.495kV to 36V
|
|
| Tolerance |
±1%
|
|
| Mounting Type |
SMD
|
|
| Package |
SOT23
|
|
| Temperature |
-40°C to 125°C
|
|
| Operating Voltage |
2.495kV to 36V
|
|
| Packaging |
Reel; Tape
|
|
| Output Current |
100mA
|
|
| Reference voltage max |
36V
|
|
| Input Voltage |
36V
|
|
| Pin Count |
3
|
|
| Automotive qualification standard |
AEC-Q100
|
|
| Voltage reference type |
Shunt - Adjustable
|
|
| Product range |
TL431
|
|
| Qualification |
AEC-Q100
|
|
| Reference voltage min |
2.495kV
|
|
| Output |
Adjustable
|
|
| Output Voltage |
2.495kV to 36V
|
|
| Type |
Parallel
|
|
| Minimum cathode current for regulation |
400µA
|
