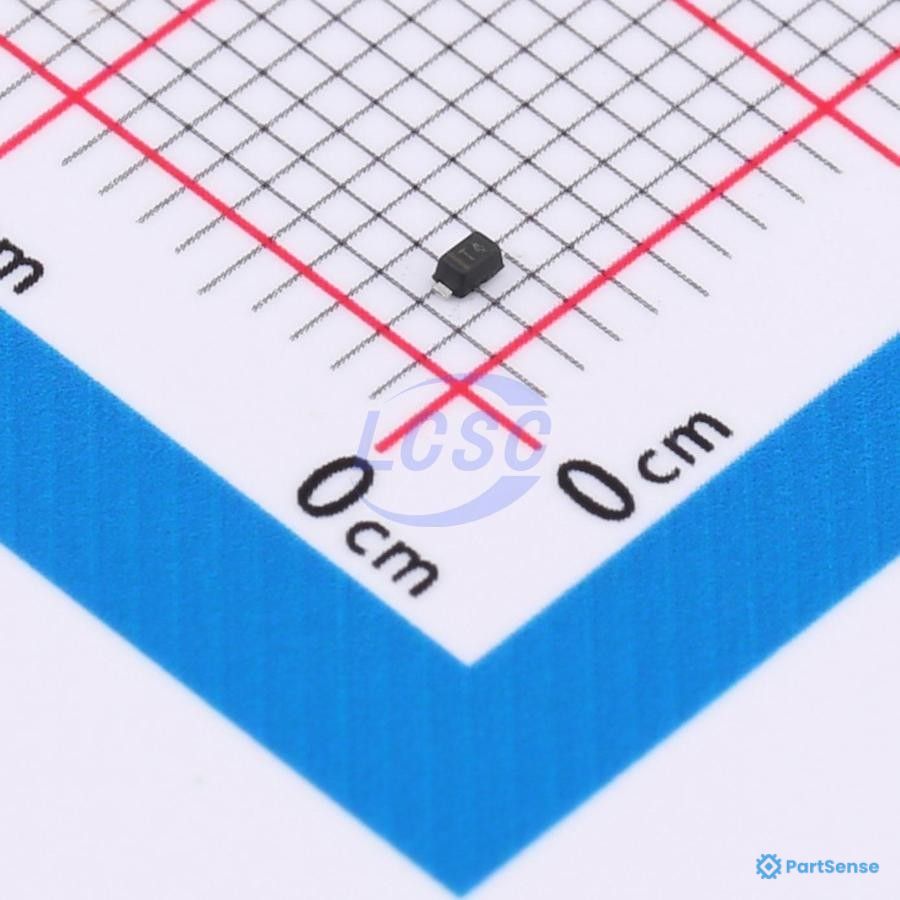

Diode: switching; SMD; 100V; 125mA; 4ns; SOD523F; Ufmax: 1.25V
Create a free account to add this component to your workspace, manage stock levels across multiple locations, and organize your bills of materials.
| Parameter | Value | |
|---|---|---|
| Technology |
Standard
|
|
| Reverse Voltage |
75; 75V
|
|
| Current average rectified |
200mA; 300; 300mA
|
|
| Forward Voltage |
1; 1.25V; 1V; 1V@10mA
|
|
| Type |
Any Speed; Small Signal =< 200mA (Io)
|
|
| Reverse recovery time |
4; 4ns
|
|
| Reverse leakage current |
5µA@75V
|
|
| Capacitance @ vr, f |
5pF@0V, 1MHz
|
|
| Mounting Type |
SMD
|
|
| Package |
SC-79; SOD-523F
|
|
| Temperature |
-55°C to 150°C; 150
|
|
| Type of diode |
Switching
|
|
| Reverse stand off voltage |
100V; 75V
|
|
| Load current |
100mA; 125mA
|
|
| Semiconductor structure |
Single diode
|
|
| Features of semiconductor devices |
Small signal; Superfast switching
|
|
| Capacitance |
2pF; 4pF
|
|
| Peak pulse current |
1A; 2A
|
|
| Packaging |
Reel; Tape
|
|
| Max load current |
200mA; 250mA
|
|
| Diode case style |
SOD-523F
|
|
| Product range |
1N4148W Series
|
|
| Configuration |
Single
|
|
| Pin Count |
2; 2 Pins
|
|
| Forward surge current |
2A
|
