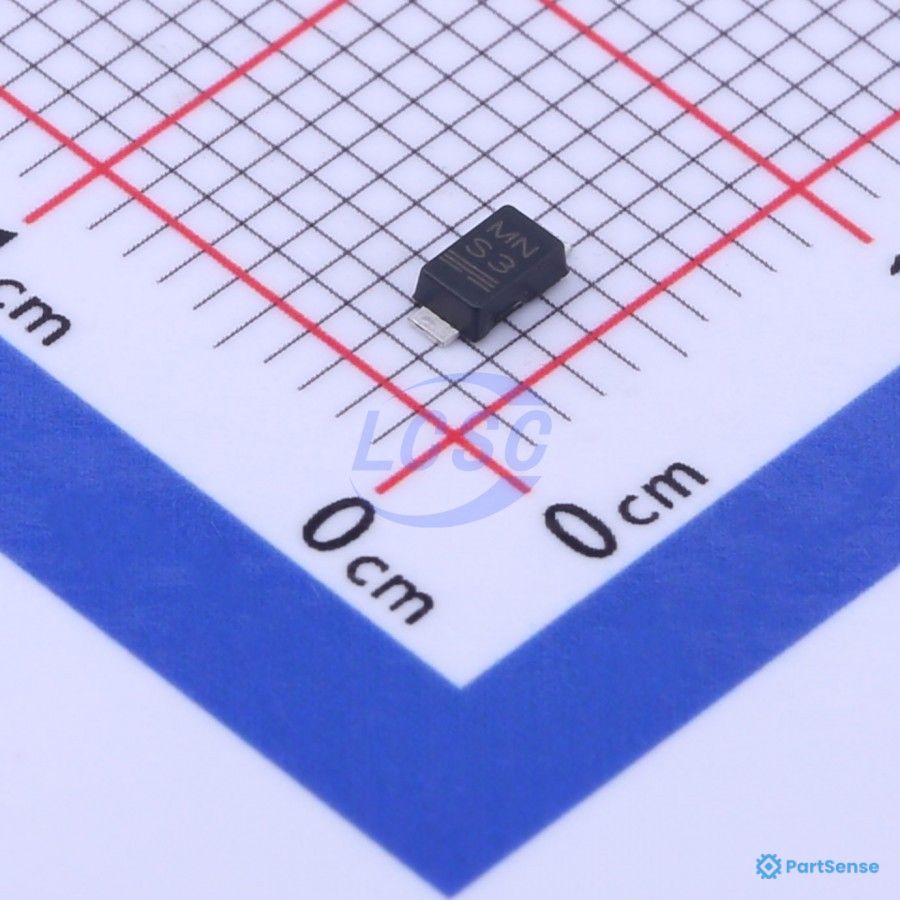

SL03 Series 1.1 A 30 V 130 uA SMT Small Signal Schottky Diode - DO-219AB
Create a free account to add this component to your workspace, manage stock levels across multiple locations, and organize your bills of materials.
| Parameter | Value | |
|---|---|---|
| Technology |
Schottky
|
|
| Reverse Voltage |
30; 30V
|
|
| Current average rectified |
1.1; 1.1A
|
|
| Forward Voltage |
430; 430mV; [email protected]; 450mV
|
|
| Reverse recovery time |
10ns; Fast Recovery =< 500ns; Unknown Value
|
|
| Reverse leakage current |
130µA@30V
|
|
| Grade |
Automotive
|
|
| Qualification |
AEC-Q101
|
|
| Mounting Type |
SMD
|
|
| Package |
DO-219AB; DO-219AB (SMF)
|
|
| Temperature |
125°C to 125°C
|
|
| Forward surge current |
40; 40A
|
|
| Pin Count |
2; 2 Pins
|
|
| Product range |
SL03
|
|
| Configuration |
1 Independent; Single
|
|
| Non repetitive peak forward surge current |
40A
|
|
| Type of diode |
Schottky rectifying
|
|
| Reverse stand off voltage |
20V
|
|
| Load current |
1.1A
|
|
| Semiconductor structure |
Single diode
|
|
| Peak pulse current |
40A
|
|
| Packaging |
7 inch reel
|
