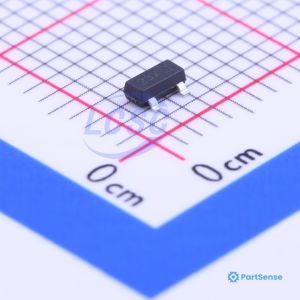

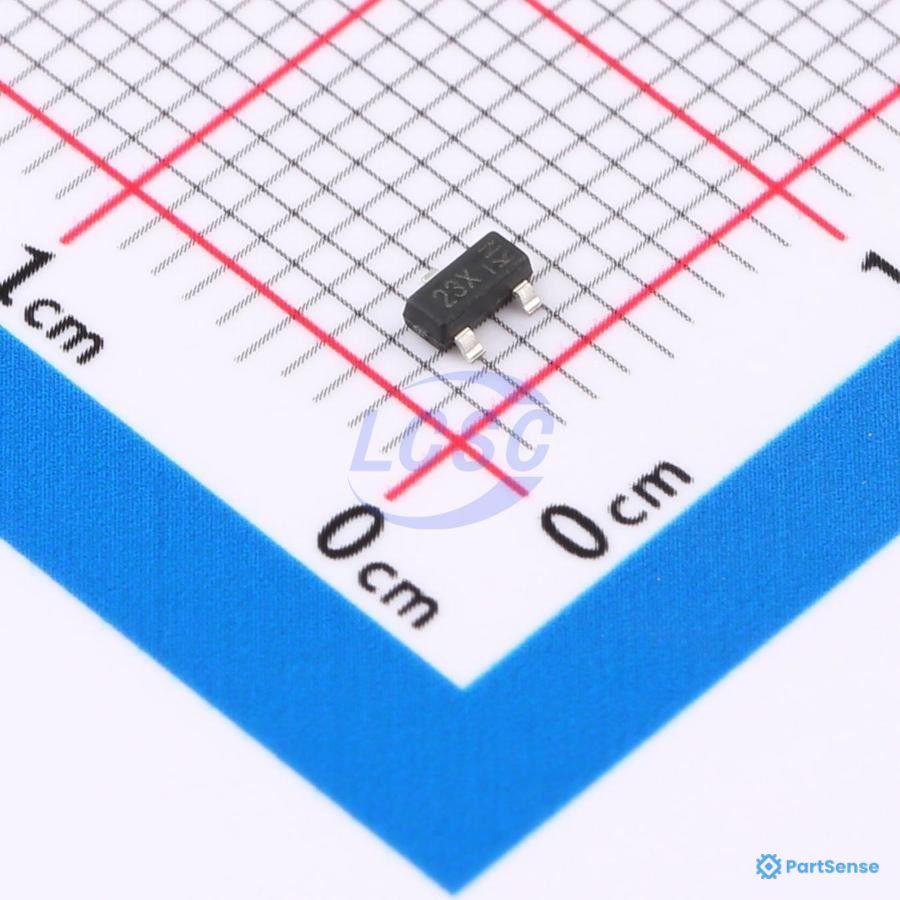

P-Channel 20 V 4.2A (Ta) 1.4W (Ta) Surface Mount SOT-23-3
Create a free account to add this component to your workspace, manage stock levels across multiple locations, and organize your bills of materials.
| Parameter | Value | |
|---|---|---|
| Number |
1 P-Channel
|
|
| Drain-Source Voltage |
20V
|
|
| Drain Current |
4.2A
|
|
| Drain-Source On-State Resistance |
52mΩ to 200mΩ
|
|
| Power |
1.4W; 1.4W (Ta)
|
|
| Gate Threshold Voltage |
900mV
|
|
| Gate Charge | ||
| Capacitance |
808pF; 85pF
|
|
| Reverse transfer capacitance |
77pF
|
|
| Temperature |
-55°C to 150°C; 150°C
|
|
| Type |
P-Channel
|
|
| Type of transistor |
P-MOSFET
|
|
| Polarity |
Unipolar
|
|
| Package |
SC-59; SOT-23-3; SOT23; TO-236-3
|
|
| Gate-Source Voltage |
±8V
|
|
| Mounting Type |
SMD
|
|
| Packaging |
7 inch reel; Tape
|
|
| Transistor Type |
Enhancement
|
|
| Rds test voltage |
4.5V
|
|
| Pin Count |
3
|
|
| Automotive qualification standard |
AEC-Q101
|
|
| On resistance rds |
40mΩ
|
|
| Technology |
MOSFET (Metal Oxide)
|
|
| Drive voltage |
1.8V; 4.5V
|
|
| Rds on @ id, vgs |
52mΩ
|
|
| Vgs @ id |
900mV@250µA
|
|
| Input capacitance @ vds |
808pF@15V
|
