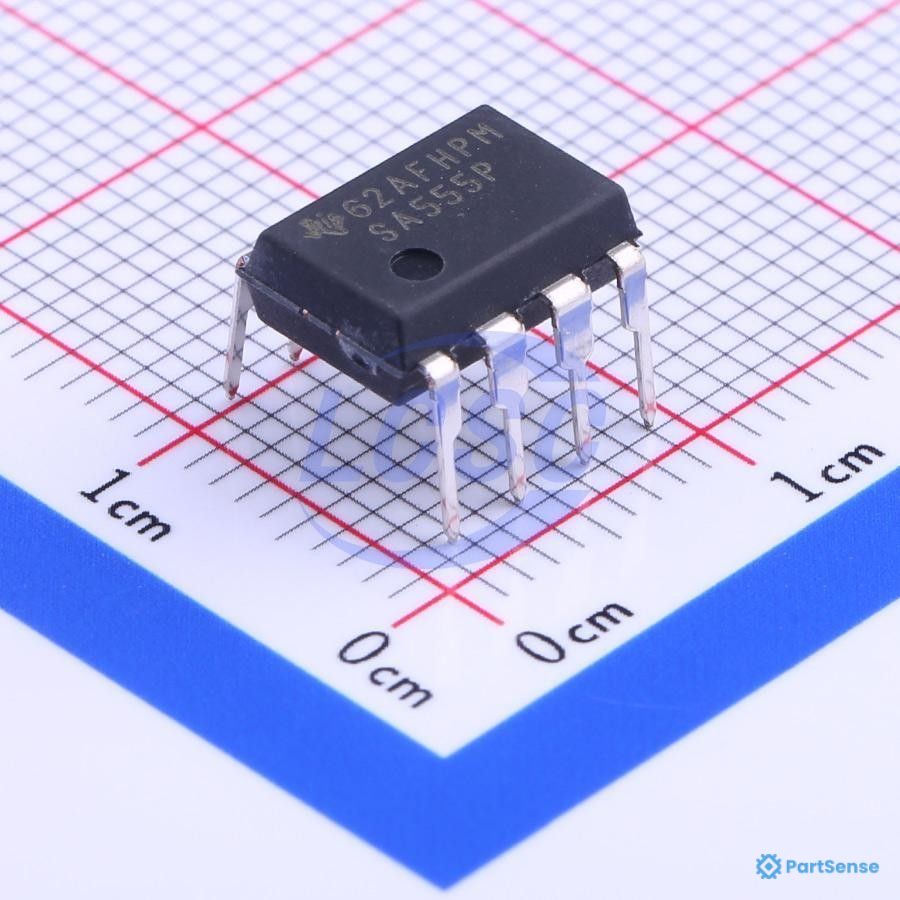

Texas Instruments PS30158165 - Timer, Oscillator & Pulse Generator IC, 500 kHz, Bipolar, Astable, Monostable, 4.5 V to 16 V, DIP-8
Images are property of their respective owners, including LCSC, DigiKey, Mouser, TME, element14, Farnell, Newark and Future Electronics

Texas Instruments SA555P

Timer, Oscillator & Pulse Generator IC, 500 kHz, Bipolar, Astable, Monostable, 4.5 V to 16 V, DIP-8

Datasheet
4 distributors in stock 5 distributors
Package / Case: 8-DIP (0.300", 7.62mm); 8-PDIP; DIP Voltage: 16; 16V Current: 200mA Temp: -40; -40°C; -40°C to 85°C; 85; 85°C
Component Details
Manufacturer Texas Instruments
MPN SA555P
PartSense # PS30158165
Availability 4 in-stock / 5 distributors
Classification
Product Status Active

Start tracking your inventory today.

Create a free account to add this component to your workspace, manage stock levels across multiple locations, and organize your bills of materials.

  • Inventory visibility
  • Lot & batch tracking
  • Project organization
Parameter Value
Supply Voltage Maximum
16; 16V
Temperature
-40; -40°C; -40°C to 85°C; 85; 85°C
Supply Voltage Minimum
4.5; 4.5V
Digital ic case
DIP
Pin Count
8; 8 Pins
Package
8-DIP (0.300", 7.62mm); 8-PDIP; DIP
Frequency
100kHz; 500; 500kHz
Timer number
1
Input Voltage
4.5V to 16V
Output Current
200mA
Current
2mA
Features
占空比可调振荡; 复位功能
Type
555 Type; Timer/Oscillator (Single)
Current supply
10mA
Mounting Type
THT
