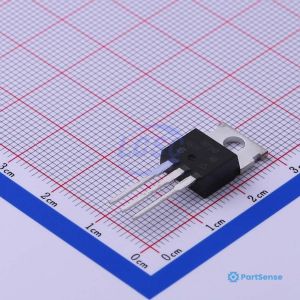

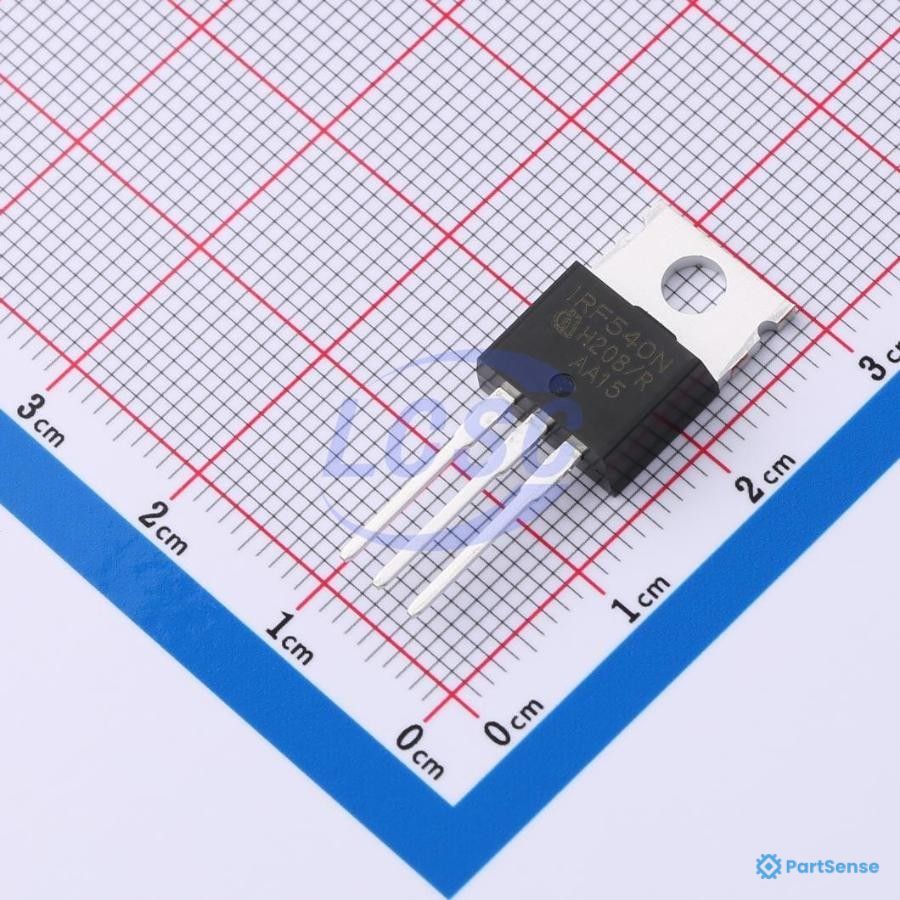

Power MOSFET, N Channel, 100 V, 33 A, 0.044 ohm, TO-220AB, Through Hole
Create a free account to add this component to your workspace, manage stock levels across multiple locations, and organize your bills of materials.
| Parameter | Value | |
|---|---|---|
| Number |
1 N-channel
|
|
| Drain-Source Voltage |
100; 100V
|
|
| Drain Current |
33; 33A
|
|
| Drain-Source On-State Resistance |
44mΩ
|
|
| Power |
130; 130W; 130W (Tc)
|
|
| Gate Threshold Voltage |
4; 4V
|
|
| Gate Charge |
71nC@10V
|
|
| Capacitance |
1.96nF; 250pF
|
|
| Reverse transfer capacitance |
40pF
|
|
| Temperature |
-55°C to 175°C; 175
|
|
| Type |
N-Channel
|
|
| Gate-Source Voltage |
±20V
|
|
| Type of transistor |
N-MOSFET
|
|
| Polarity |
Unipolar
|
|
| Package |
TO-220-3; TO220AB
|
|
| Mounting Type |
THT
|
|
| Packaging |
Tube
|
|
| Transistor Type |
Enhancement; N Channel
|
|
| Technology |
HEXFET; MOSFET (Metal Oxide)
|
|
| Rds test voltage |
10
|
|
| Pin Count |
3
|
|
| Product range |
HEXFET Series
|
|
| Drive voltage |
10V
|
|
| Rds on @ id, vgs |
44mΩ
|
|
| Vgs @ id |
4V@250µA
|
|
| Input capacitance @ vds |
1.96nF@25V
|
