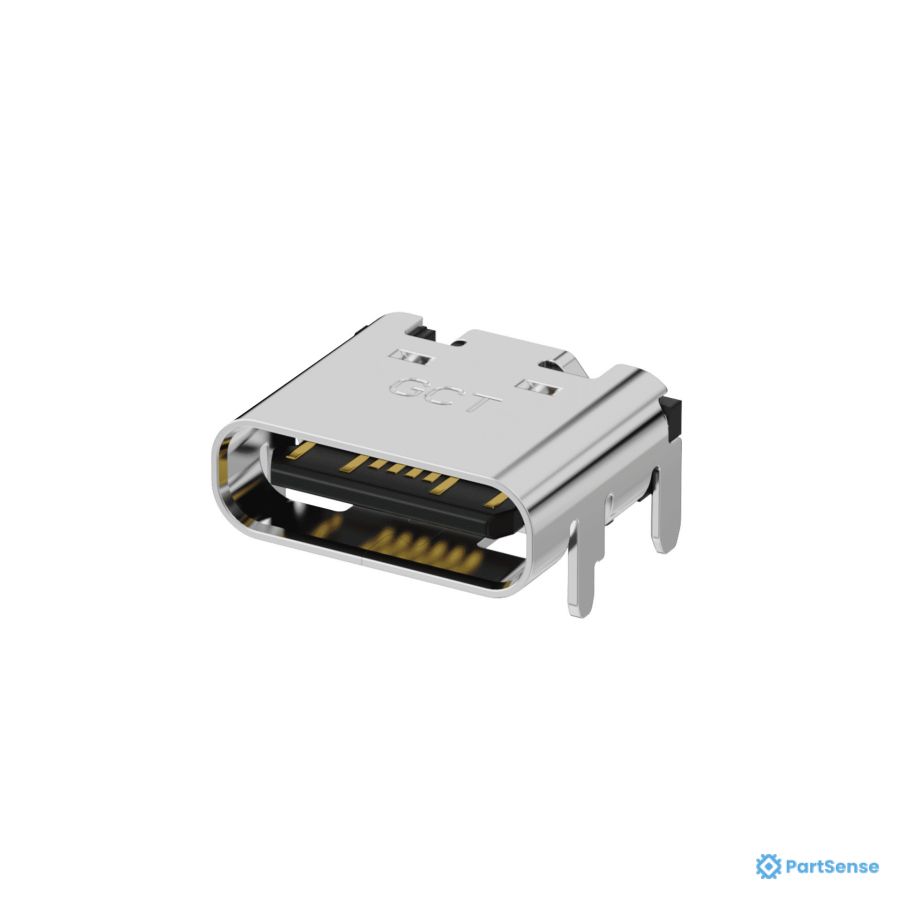

USB-C (USB TYPE-C) USB 2.0 Receptacle Connector 24 (16+8 Dummy) Position Surface Mount, Right Angle; Through Hole
Create a free account to add this component to your workspace, manage stock levels across multiple locations, and organize your bills of materials.
| Parameter | Value | |
|---|---|---|
| Connector Type |
USB-C (USB TYPE-C)
|
|
| Number of contacts |
24 (16+8 Dummy)
|
|
| Gender |
Receptacle
|
|
| Specifications |
USB 2.0
|
|
| Orientation |
Right Angle; SMD; THT
|
|
| Mounting Type |
Horizontal
|
|
| Termination Style |
Solder
|
|
| Features |
Board Guide; Solder Retention Tab
|
|
| Temperature |
-40°C to 85°C
|
|
| Number of ports |
1
|
|
| Current |
5A
|
|
| Operating Voltage |
48V
|
|
| Mating cycles |
20000
|
|
| Shielding |
Shielded
|
Document details will be displayed in this section.
Compare prices across distributors
| Quantity | DigiKey | Mouser | Newark | Future Electronics |
|---|---|---|---|---|
| 50,400 |
$0.5698
Total: $28717.92
|
$0.627
Total: $31600.80
|
$0.844
Total: $42537.60
|
$0.556
Total: $28022.40
|
| Qty | Unit Price | Total |
|---|---|---|
| 50400 | $0.5698 | $28717.92 |
| Qty | Unit Price | Total |
|---|---|---|
| 50400 | $0.627 | $31600.80 |
| Qty | Unit Price | Total |
|---|---|---|
| 50400 | $0.844 | $42537.60 |
| Qty | Unit Price | Total |
|---|---|---|
| 50400 | $0.556 | $28022.40 |
