onsemi TL431BCLPG

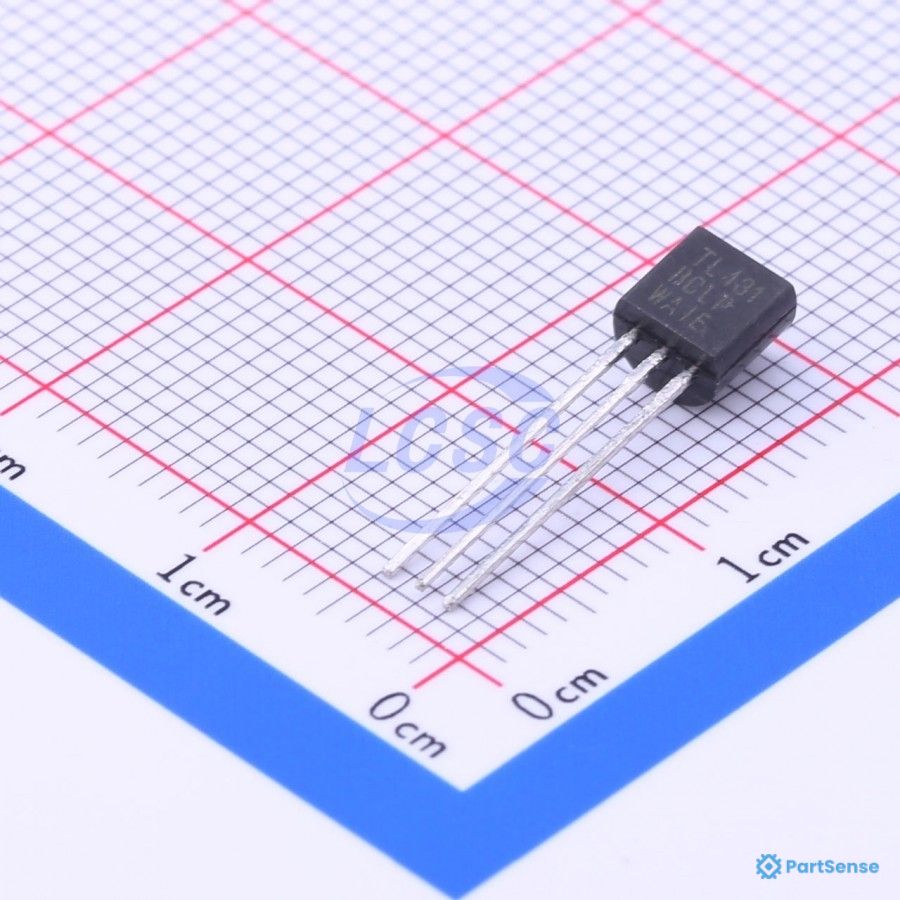

Voltage Reference, Precision, Shunt - Adjustable, TL431B Series, 2.495V to 36V, TO-226AA-3

Datasheet
This product is discontinued
1 distributor in stock 4 distributors MSL 1
Package / Case: TO-92 Voltage: 2.495kV; 2495 Current: 100mA Tolerance: 0.4; 0.4 %; ±0.4% Temp: 0; 0°C to 70°C; 70
Component Details
Manufacturer onsemi
MPN TL431BCLPG
PartSense # PS04989432
Availability 1 in-stock / 4 distributors
Classification
Category Voltage References
MSL Level 1

Start tracking your inventory today.

Create a free account to add this component to your workspace, manage stock levels across multiple locations, and organize your bills of materials.

  • Inventory visibility
  • Lot & batch tracking
  • Project organization
Parameter Value
Reference voltage min
2.495kV; 2495
Reference voltage
2.495kV to 36V
Product range
TL431B
Reference voltage max
36; 36V
Temperature
0; 0°C to 70°C; 70
Voltage reference type
Shunt - Adjustable
Tolerance
0.4; 0.4 %; ±0.4%
Pin Count
3; 3 Pins
Mounting Type
THT
Package
TO-92
Temperature Coefficient
±50ppm/°C
Input Voltage
36; 36V
Output
Adjustable
Output Voltage
2.495kV to 36V
Output Current
100mA
Type
Parallel
Minimum cathode current for regulation
1mA
