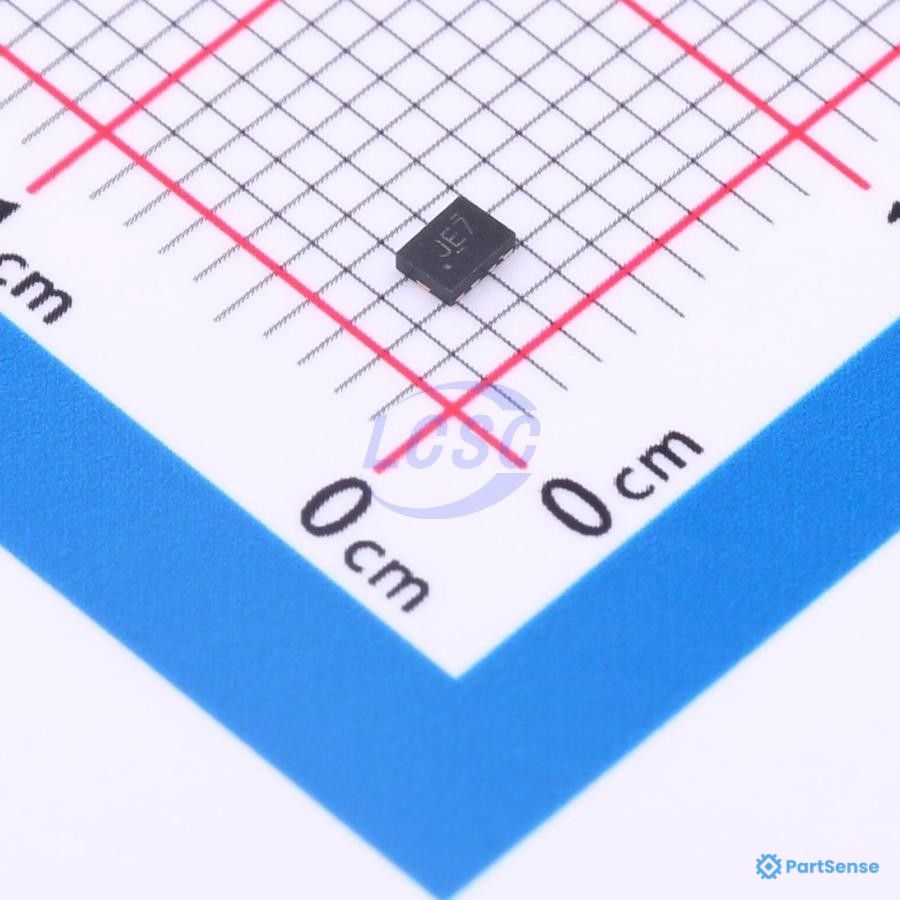

Texas Instruments PS66253436 - 2 Circuit IC Switch 2:1 900mOhm 10-UQFN (2.0x1.5)
Images are property of their respective owners, including LCSC, DigiKey, Mouser, TME, element14, Farnell, Newark and Future Electronics
Analog multiplexers and switches

Texas Instruments TS5A23159RSER

2 Circuit IC Switch 2:1 900mOhm 10-UQFN (2.0x1.5)

Datasheet
4 distributors in stock 7 distributors MSL 1
Package / Case: 10-UFQFN; 10-UQFN (2.0x1.5); UQFN10 Voltage: 1.65V to 5.5V Current: 20nA Power: Single Supply Temp: -40°C to 85°C
Component Details
Manufacturer Texas Instruments
MPN TS5A23159RSER
PartSense # PS66253436
Availability 4 in-stock / 7 distributors
Classification
Category Analog multiplexers and switches
MSL Level 1

Start tracking your inventory today.

Create a free account to add this component to your workspace, manage stock levels across multiple locations, and organize your bills of materials.

  • Inventory visibility
  • Lot & batch tracking
  • Project organization
Parameter Value
Switch circuit
2:1
Number of Channels
2
Ron
700mΩ
Input Voltage
1.65V to 5.5V
Con
55pF
Turn on time
8ns
Turn off time
8ns
Bandwidth
100MHz
Temperature
-40°C to 85°C
Features
Glitch-free switching; Power-off isolation
Multiplexer demultiplexer circuit
2:1
Number of circuits
2
Drain-Source On-State Resistance
900mΩ
Channel to channel matching
50mΩ
Switch time
0s to 0s
3db bandwidth
100MHz
Charge injection
-7pC
Channel capacitance , cd )
18pF
Current leakage )
20nA
Crosstalk
-64dB@1MHz
Mounting Type
SMD
Package
10-UFQFN; 10-UQFN (2.0x1.5); UQFN10
Type of integrated circuit
Analog switch
Kind of integrated circuit
Demultiplexer
Configuration
2:1; SPDT
Packaging
Reel; Tape
Resistance
1Ω
Manufacturer standard package
3000pcs.
On resistance max
900mΩ
Ic function
Analogue Multiplexer/Demultiplexer; Analogue Switch
On resistance typ
700mΩ
Pin Count
10
Power supply type
Single Supply
No of channels
2
