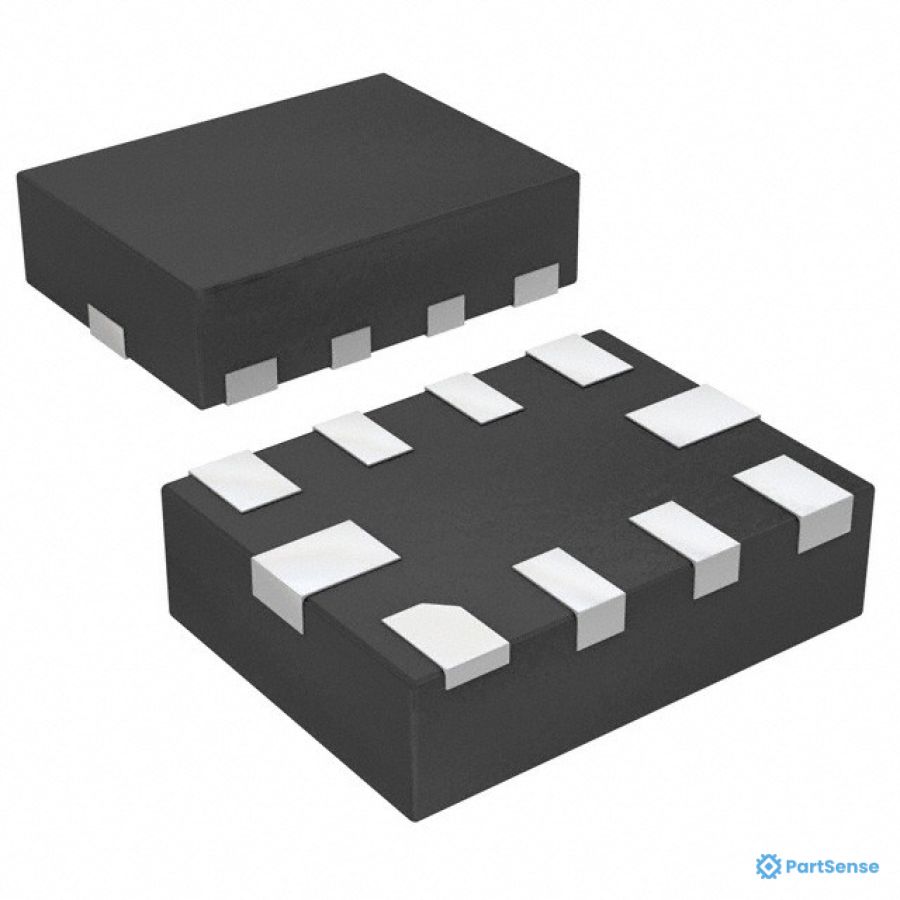

Analog Switch ICs 1O Dual SPDT Ana Sw ALT 595-TS5A23159RSER
Create a free account to add this component to your workspace, manage stock levels across multiple locations, and organize your bills of materials.
| Parameter | Value | |
|---|---|---|
| Switch circuit |
2:1
|
|
| Number of Channels |
2
|
|
| Ron |
900mΩ
|
|
| Input Voltage |
1.65V to 5.5V
|
|
| Con |
55pF
|
|
| Turn on time |
8ns
|
|
| Turn off time |
8ns
|
|
| Bandwidth |
100MHz
|
|
| Temperature |
-40°C to 85°C
|
|
| Features |
Bidirectional analog channel; Glitch-free switching; Power-off isolation
|
|
| Multiplexer demultiplexer circuit |
2:1
|
|
| Number of circuits |
2
|
|
| Drain-Source On-State Resistance |
900mΩ
|
|
| Channel to channel matching |
50mΩ
|
|
| Switch time |
0s to 0s
|
|
| 3db bandwidth |
100MHz
|
|
| Charge injection |
-7pC
|
|
| Channel capacitance , cd ) |
18pF
|
|
| Current leakage ) |
20nA
|
|
| Crosstalk |
-64dB@1MHz
|
|
| Mounting Type |
SMD
|
|
| Package |
10-UFQFN; 10-UQFN (2.0x1.5)
|
Document details will be displayed in this section.
Compare prices across distributors
| Quantity | LCSC | DigiKey |
|---|---|---|
| 1 |
$0.6168
Total: $0.62
|
Not Available
at this quantity
|
| 200 |
$0.2395
Total: $47.90
|
Not Available
at this quantity
|
| 500 |
$0.2299
Total: $114.95
|
Not Available
at this quantity
|
| 1,000 |
$0.2268
Total: $226.80
|
Not Available
at this quantity
|
| 3,000 |
$0.2268
Total: $680.40
|
$0.46002
Total: $1380.06
|
| 6,000 |
$0.2268
Total: $1360.80
|
$0.4492
Total: $2695.20
|
| 9,000 |
$0.2268
Total: $2041.20
|
$0.44379
Total: $3994.11
|
| 15,000 |
$0.2268
Total: $3402.00
|
$0.43778
Total: $6566.70
|
| 21,000 |
$0.2268
Total: $4762.80
|
$0.43428
Total: $9119.88
|
| Qty | Unit Price | Total |
|---|---|---|
| 1 | $0.6168 | $0.62 |
| 200 | $0.2395 | $47.90 |
| 500 | $0.2299 | $114.95 |
| 1000 | $0.2268 | $226.80 |
| Qty | Unit Price | Total |
|---|---|---|
| 3000 | $0.46002 | $1380.06 |
| 6000 | $0.4492 | $2695.20 |
| 9000 | $0.44379 | $3994.11 |
| 15000 | $0.43778 | $6566.70 |
| 21000 | $0.43428 | $9119.88 |
