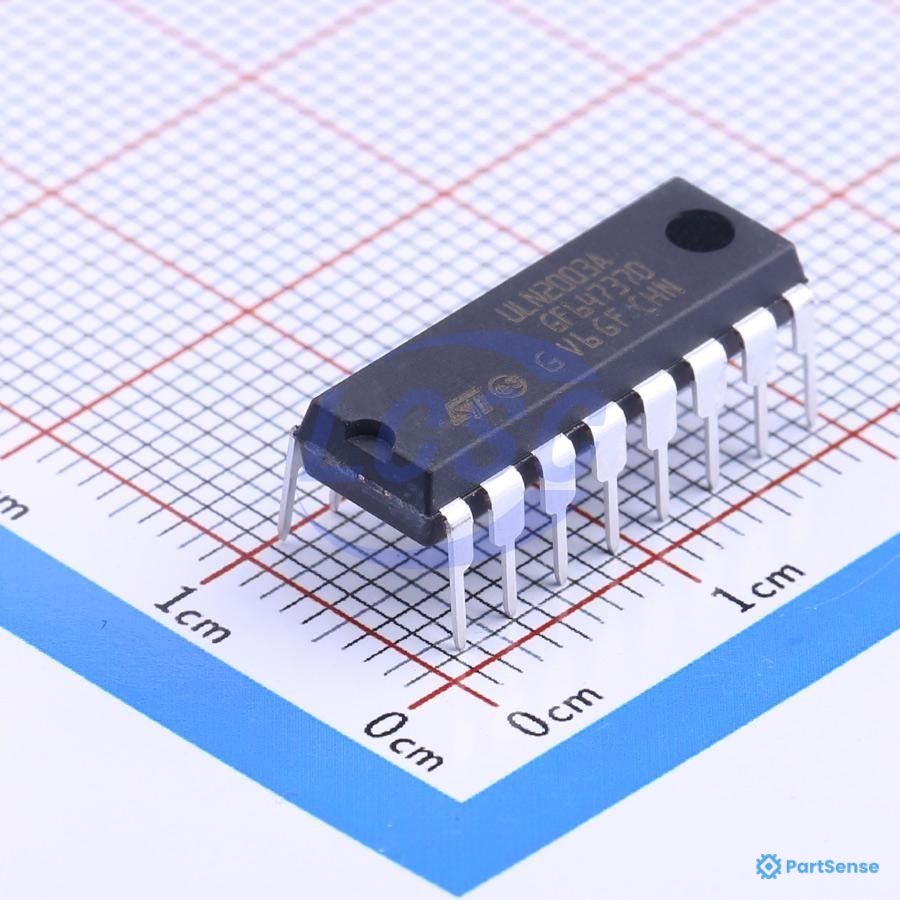

ULN Series 50 V 500 mA High Voltage High Current Seven Darlington Array - DIP-16
Create a free account to add this component to your workspace, manage stock levels across multiple locations, and organize your bills of materials.
| Parameter | Value | |
|---|---|---|
| Number of Channels |
Seven channels
|
|
| Collector-Emitter Voltage |
50V
|
|
| Collector Current |
500mA; 50µA
|
|
| Input Voltage |
30V
|
|
| Temperature |
-40°C to 85°C; 85°C
|
|
| Reverse leakage current |
50µA
|
|
| Collector-Emitter Saturation Voltage |
1.6V
|
|
| Input Current |
65µA; 820µA
|
|
| Forward Voltage |
1.7V
|
|
| Input capacitiance |
15pF
|
|
| Type |
BJT
|
|
| Output Voltage |
50; 50V
|
|
| No of outputs |
7
|
|
| Polarity |
NPN
|
|
| DC Current Gain |
1000 hFE
|
|
| Rf transistor case |
DIP
|
|
| Pin Count |
16
|
|
| Output Current |
500; 500mA
|
|
| Product range |
Darlington Array
|
|
| Supply Voltage Maximum |
3
|
|
| Mounting Type |
THT
|
|
| Type of integrated circuit |
Driver
|
|
| Kind of integrated circuit |
Darlington; Transistor array
|
|
| Package |
16-DIP (0.300", 7.62mm); DIP16
|
|
| Applications |
5V TTL/CMOS; For inductive load
|
|
| Transistor Type |
7 NPN Darlington
|
|
| Vce saturation @ ib, ic |
1.6V@500µA, 350mA
|
