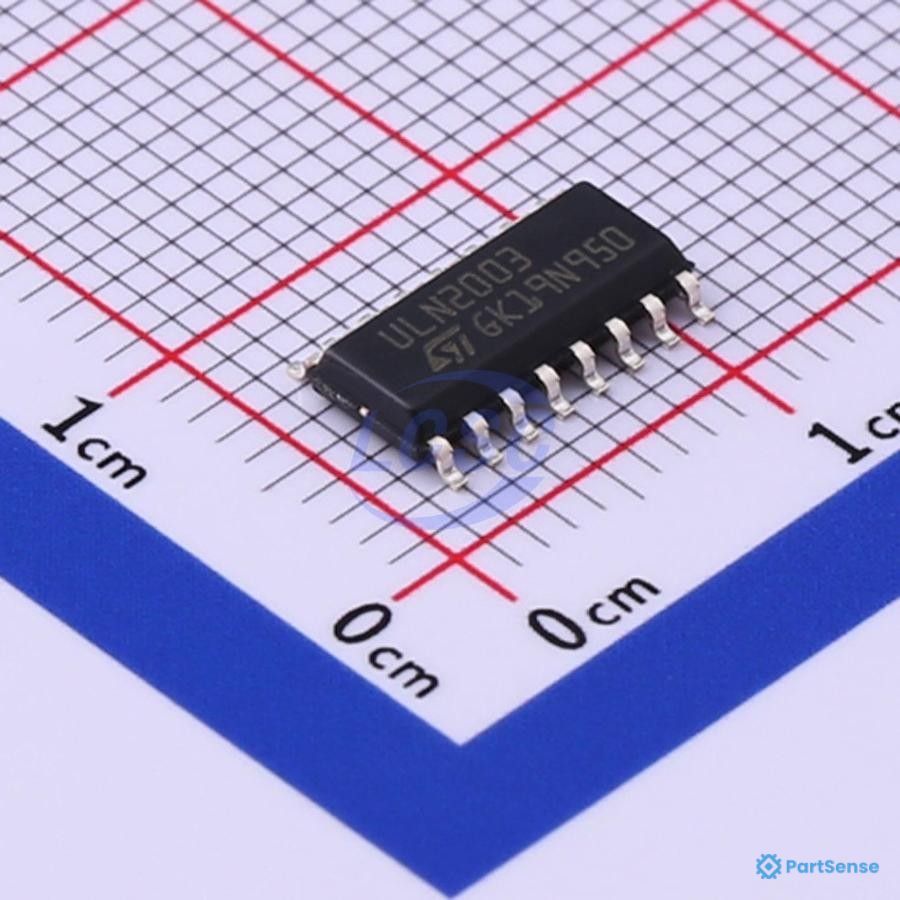

STMicroelectronics PS57787497 - ULN Series 50V 500 mA High Voltage High Current Seven Darlington Array - SOIC-16
Images are property of their respective owners, including LCSC, DigiKey, Mouser, TME, element14, Farnell, Newark and Future Electronics
Drivers - integrated circuits

STMicroelectronics ULN2003D1013TR

ULN Series 50V 500 mA High Voltage High Current Seven Darlington Array - SOIC-16

Datasheet
7 distributors in stock 8 distributors MSL 1
Package / Case: 16-SOIC (0.154", 3.90mm Width); NSOIC; SO16 Voltage: 50V Current: 500mA Temp: -40°C to 85°C; 85°C
Component Details
Manufacturer STMicroelectronics
MPN ULN2003D1013TR
PartSense # PS57787497
Availability 7 in-stock / 8 distributors
Classification
Category Drivers - integrated circuits
Product Status Active
MSL Level 1
