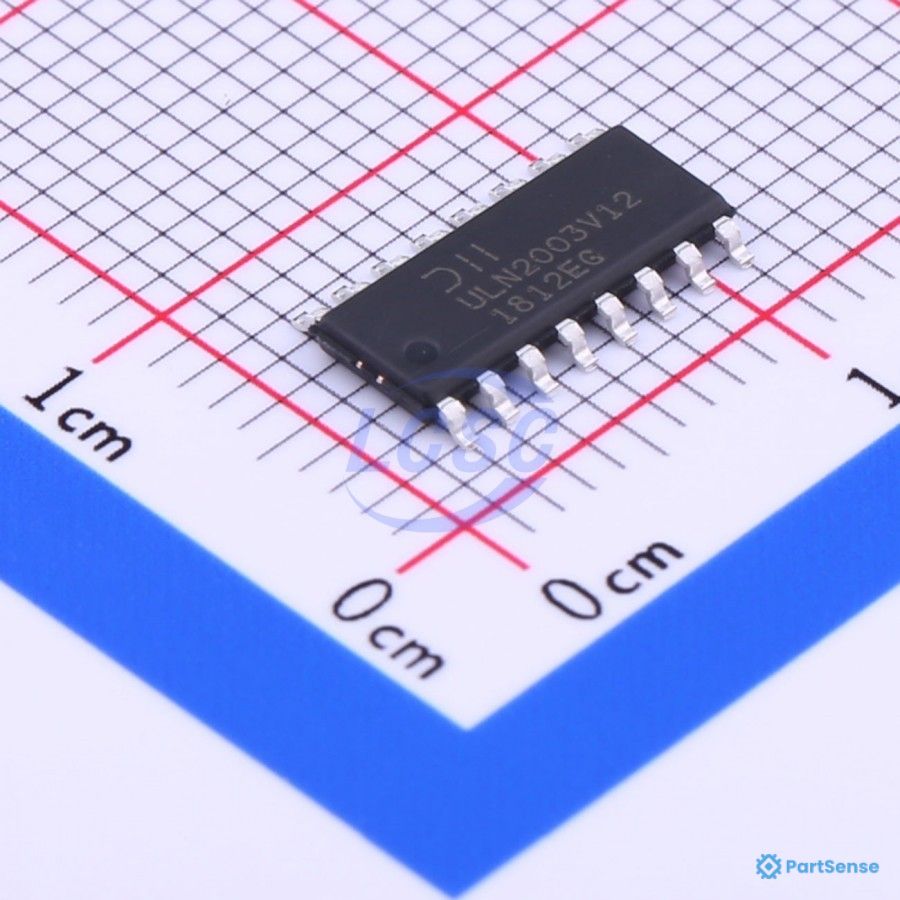

ULN2003V12 Series 7 Channel 3.3 to 5 V Relay Inductive Load Sink Driver -SOIC-16
Create a free account to add this component to your workspace, manage stock levels across multiple locations, and organize your bills of materials.
| Parameter | Value | |
|---|---|---|
| Package |
16-SOIC (0.154", 3.90mm Width); SOIC
|
|
| Temperature |
-40°C to 105°C; -40°C to 125°C; -55°C to 150°C
|
|
| Pin Count |
16
|
|
| Output Current |
140mA
|
|
| Supply Voltage Maximum |
5V
|
|
| Number of Channels |
Seven channels
|
|
| Collector-Emitter Voltage |
20V; 50V
|
|
| Collector Current |
1A; 50µA
|
|
| Input Voltage |
5.5V
|
|
| Collector-Emitter Saturation Voltage |
750mV
|
|
| Input Current |
12µA; 250nA
|
|
| Forward Voltage |
1.2V
|
|
| Type |
BJT
|
|
| Transistor Type |
7 NPN Darlington
|
|
| Vce saturation @ ib, ic |
1.6V@500µA, 350mA
|
|
| Mounting Type |
SMD
|
