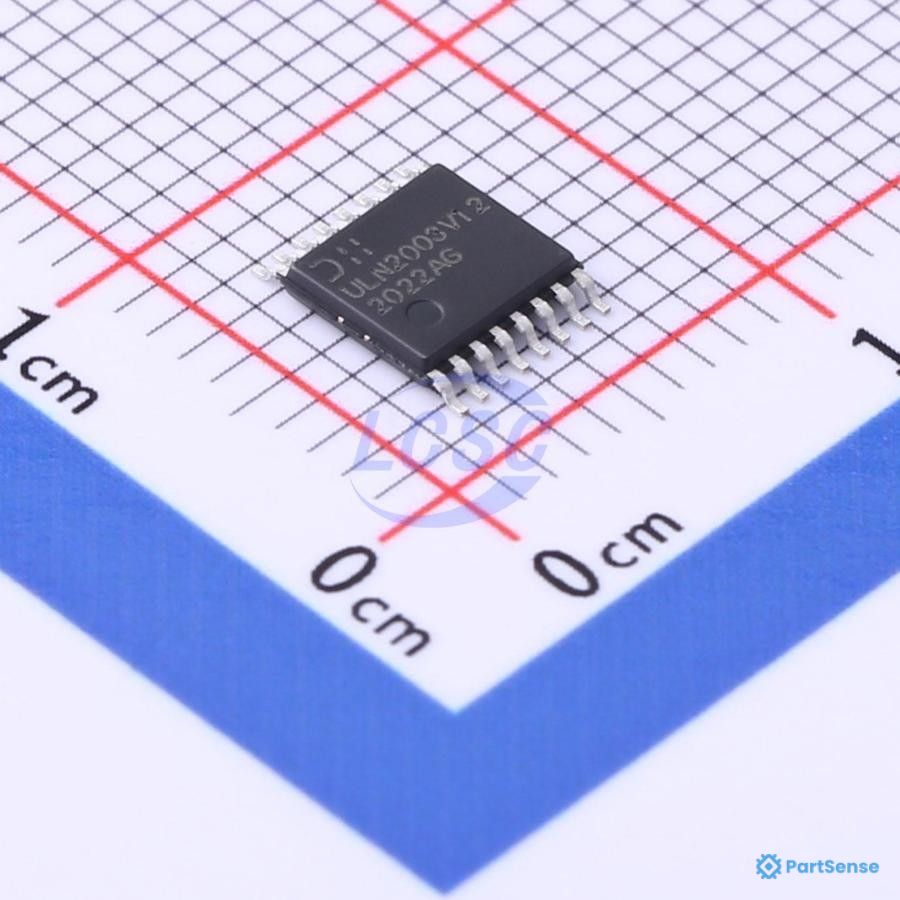

Diodes PS63051784 - ULN2003V12 Series 7 Channel 3.3 to 5 V Relay Inductive Load Sink Driver-TSSOP-16
Images are property of their respective owners, including LCSC, DigiKey, Mouser, TME, element14, Farnell, Newark and Future Electronics
Gate Drivers

Diodes ULN2003V12T16-13

ULN2003V12 Series 7 Channel 3.3 to 5 V Relay Inductive Load Sink Driver-TSSOP-16

Datasheet
3 distributors in stock 7 distributors MSL 3
Package / Case: 16-TSSOP; 16-TSSOP (0.173", 4.40mm Width); TSSOP Voltage: 5V Current: 140mA Temp: -40°C to 105°C; -40°C to 125°C; -55°C to 150°C
Component Details
Manufacturer Diodes
MPN ULN2003V12T16-13
PartSense # PS63051784
Availability 3 in-stock / 7 distributors
Classification
Category Gate Drivers
Product Status Active
MSL Level 3

Start tracking your inventory today.

Create a free account to add this component to your workspace, manage stock levels across multiple locations, and organize your bills of materials.

  • Inventory visibility
  • Lot & batch tracking
  • Project organization
Parameter Value
Package
16-TSSOP; 16-TSSOP (0.173", 4.40mm Width); TSSOP
Temperature
-40°C to 105°C; -40°C to 125°C; -55°C to 150°C
Pin Count
16
Output Current
140mA
Supply Voltage Maximum
5V
Number of Channels
Seven channels
Collector-Emitter Voltage
20V; 50V
Input Voltage
5.5V
Collector-Emitter Saturation Voltage
750mV
Input Current
12µA; 250nA
Forward Voltage
1.2V
Type
BJT
Transistor Type
7 NPN Darlington
Vce saturation @ ib, ic
1.6V@500µA, 350mA
Collector Current
50µA
Mounting Type
SMD
