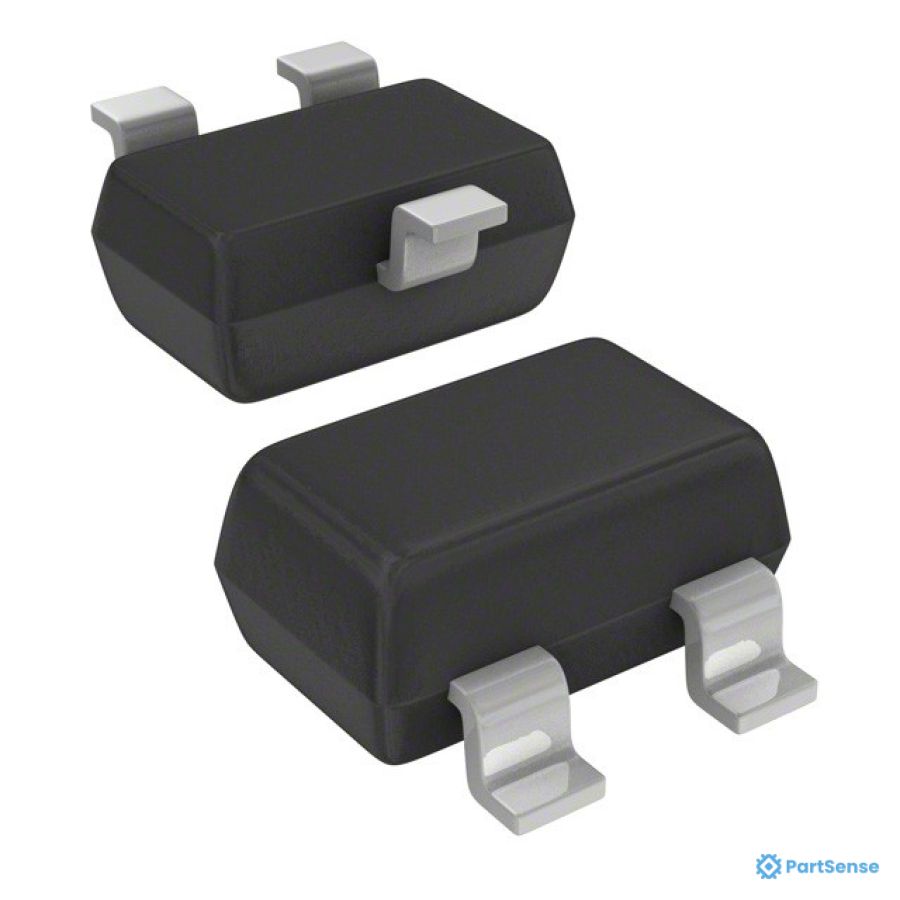

N-Channel 50 V 200mA (Ta) 200mW (Ta) Surface Mount SOT-323
Create a free account to add this component to your workspace, manage stock levels across multiple locations, and organize your bills of materials.
| Parameter | Value | |
|---|---|---|
| Type |
N-Channel
|
|
| Technology |
MOSFET (Metal Oxide)
|
|
| Drain-Source Voltage |
50V
|
|
| Drain Current |
200mA
|
|
| Drive voltage |
10V; 2.5V
|
|
| Rds on @ id, vgs |
1.6Ω
|
|
| Vgs @ id |
1.5V@250µA
|
|
| Gate-Source Voltage |
±20V
|
|
| Input capacitance @ vds |
50pF@10V
|
|
| Power |
200mW (Ta)
|
|
| Temperature |
-55°C to 150°C
|
|
| Mounting Type |
SMD
|
|
| Package |
SC-70; SOT-323
|
Document details will be displayed in this section.
No RoHS/REACH compliance data available for this component yet.
| Qty | Unit Price | Total |
|---|---|---|
| 1 | $0.00 | $0.00 |
| Qty | Unit Price | Total |
|---|---|---|
| 1 | $0.40 | $0.40 |
| 10 | $0.273 | $2.73 |
| 100 | $0.173 | $17.30 |
| 500 | $0.109 | $54.50 |
| 1000 | $0.095 | $95.00 |
| 3000 | $0.083 | $249.00 |
| 6000 | $0.071 | $426.00 |
| 9000 | $0.063 | $567.00 |
| 24000 | $0.047 | $1128.00 |
