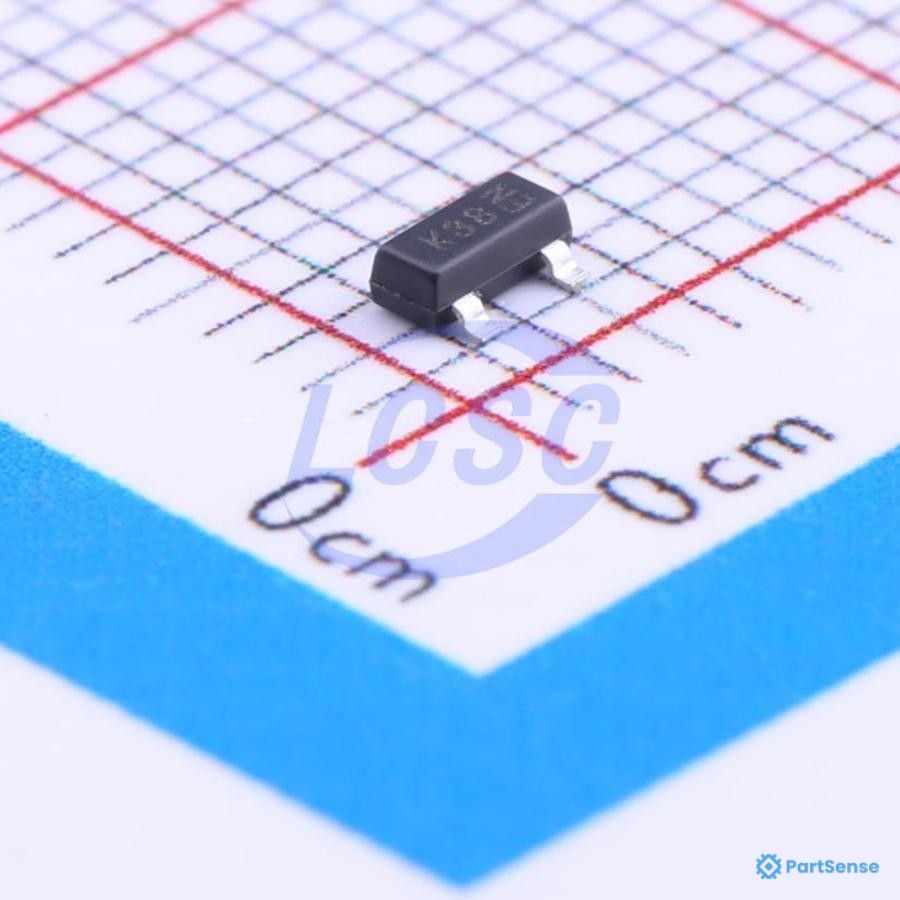

Diodes BSS138Q-7-F

Single N-Channel 50 V 3.5 Ohm 300 mW Silicon Surface Mount Mosfet - SOT-23

Datasheet
4 distributors in stock 8 distributors MSL 1
Package / Case: SC-59; SOT-23-3; SOT23; TO-236-3 Voltage: 50; 50V Current: 200; 200mA Power: 300; 300mW; 300mW (Ta) Temp: -55°C to 150°C; 150; 150°C
Component Details
Manufacturer Diodes
MPN BSS138Q-7-F
PartSense # PS02779635
Availability 4 in-stock / 8 distributors
Classification
Category MOSFETs
Product Status Active
MSL Level 1

Start tracking your inventory today.

Create a free account to add this component to your workspace, manage stock levels across multiple locations, and organize your bills of materials.

  • Inventory visibility
  • Lot & batch tracking
  • Project organization
Parameter Value
Type of transistor
N-MOSFET
Polarity
N Channel; Unipolar
Drain-Source Voltage
50; 50V
Drain Current
200; 200mA
Power
300; 300mW; 300mW (Ta)
Package
SC-59; SOT-23-3; SOT23; TO-236-3
Gate-Source Voltage
±20V
Drain-Source On-State Resistance
1.4Ω to 3.5Ω
Mounting Type
SMD
Packaging
7 inch reel; Tape
Transistor Type
Enhancement; N Channel
Applications
Automotive industry
Automotive qualification standard
AEC-Q101
Transistor case style
SOT-23
Temperature
-55°C to 150°C; 150; 150°C
Rds test voltage
10; 10V
Gate Threshold Voltage
1.2; 1.2V; 1.2V@250µA
Pin Count
3; 3 Pins
Qualification
AEC-Q101
On resistance rds
1.4Ω
Type
N-Channel
Technology
MOSFET (Metal Oxide)
Drive voltage
10V
Rds on @ id, vgs
3.5Ω
Vgs @ id
1.5V@250µA
Input capacitance @ vds
50pF@10V
Grade
Automotive
Number
1 N-Channel
Capacitance
25pF; 50pF
Reverse transfer capacitance
8pF
