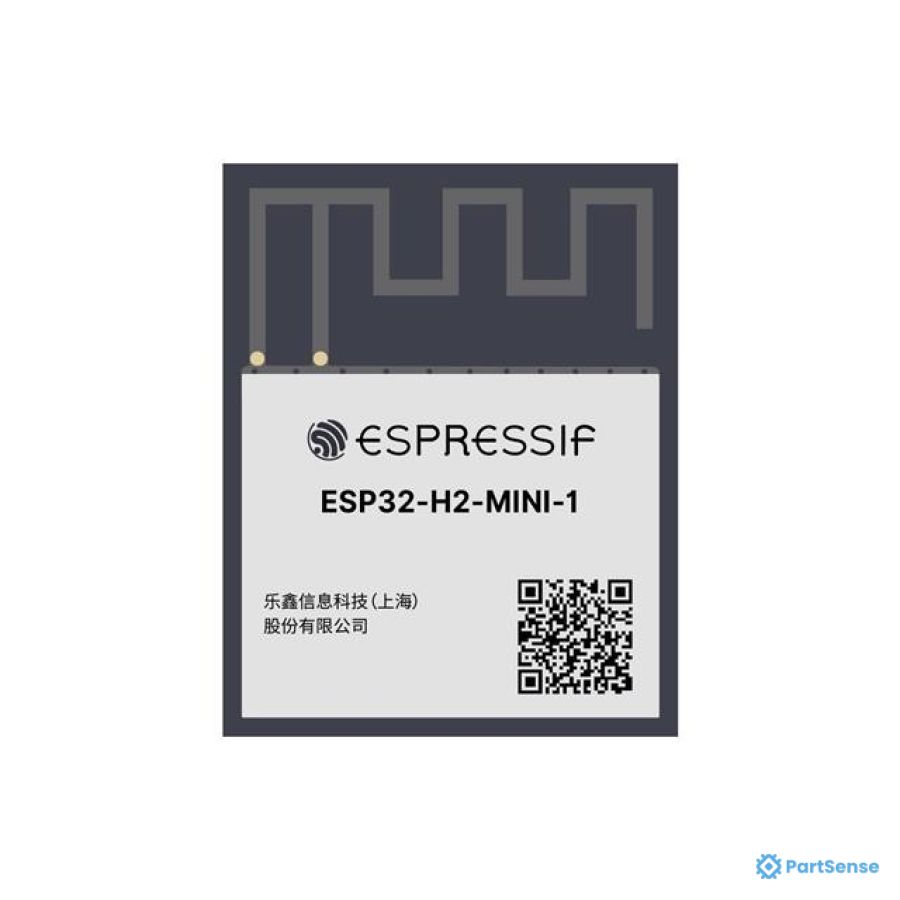

802.15.4, Bluetooth Bluetooth v5.3, Zigbee® Transceiver Module 2.4GHz Integrated, Trace Surface Mount
Create a free account to add this component to your workspace, manage stock levels across multiple locations, and organize your bills of materials.
| Parameter | Value | |
|---|---|---|
| Features |
On-board temperature sensor
|
|
| RF Family/Standard |
802.15.4; Bluetooth
|
|
| Interface |
Bluetooth v5.3; GPIO; I2C; I2S; JTAG; PWM; SPI; UART; USB; Zigbee
|
|
| Modulation |
O-QPSK
|
|
| Frequency |
2.4GHz
|
|
| Data Rate |
150Mbps
|
|
| Transmitting Power |
18.5dBm
|
|
| Sensitivity |
-105.5dBm
|
|
| Type |
Integrated; Trace
|
|
| Memory |
2MB Flash
|
|
| Input Voltage |
3V to 3.6V
|
|
| Receiving Current |
25mA to 29mA
|
|
| Transmitting Current |
26mA to 123mA
|
|
| Mounting Type |
SMD
|
|
| Temperature |
-40°C to 105°C
|
|
| Package |
61-SMD Module
|
Document details will be displayed in this section.
No RoHS/REACH compliance data available for this component yet.
Compare prices across distributors
| Quantity | LCSC | DigiKey | Mouser |
|---|---|---|---|
| 1 |
$13.0568
Total: $13.06
|
$3.75
Total: $3.75
|
$3.75
Total: $3.75
|
| 10 |
$13.0568
Total: $130.57
|
$3.75
Total: $37.50
|
$3.65
Total: $36.50
|
| 25 |
$13.0568
Total: $326.42
|
$3.75
Total: $93.75
|
$3.13
Total: $78.25
|
| 200 |
$5.2107
Total: $1042.14
|
$3.75
Total: $750.00
|
$3.13
Total: $626.00
|
| 500 |
$5.0359
Total: $2517.95
|
$3.75
Total: $1875.00
|
$3.13
Total: $1565.00
|
| 1,000 |
$4.9508
Total: $4950.80
|
$3.75
Total: $3750.00
|
$2.73
Total: $2730.00
|
| 2,600 |
$4.9508
Total: $12872.08
|
$3.75
Total: $9750.00
|
$2.64
Total: $6864.00
|
| Qty | Unit Price | Total |
|---|---|---|
| 1 | $13.0568 | $13.06 |
| 200 | $5.2107 | $1042.14 |
| 500 | $5.0359 | $2517.95 |
| 1000 | $4.9508 | $4950.80 |
| Qty | Unit Price | Total |
|---|---|---|
| 1 | $3.75 | $3.75 |
| Qty | Unit Price | Total |
|---|---|---|
| 1 | $3.75 | $3.75 |
| 10 | $3.65 | $36.50 |
| 25 | $3.13 | $78.25 |
| 1000 | $2.73 | $2730.00 |
| 2600 | $2.64 | $6864.00 |
