onsemi ESD5Z5.0T1G

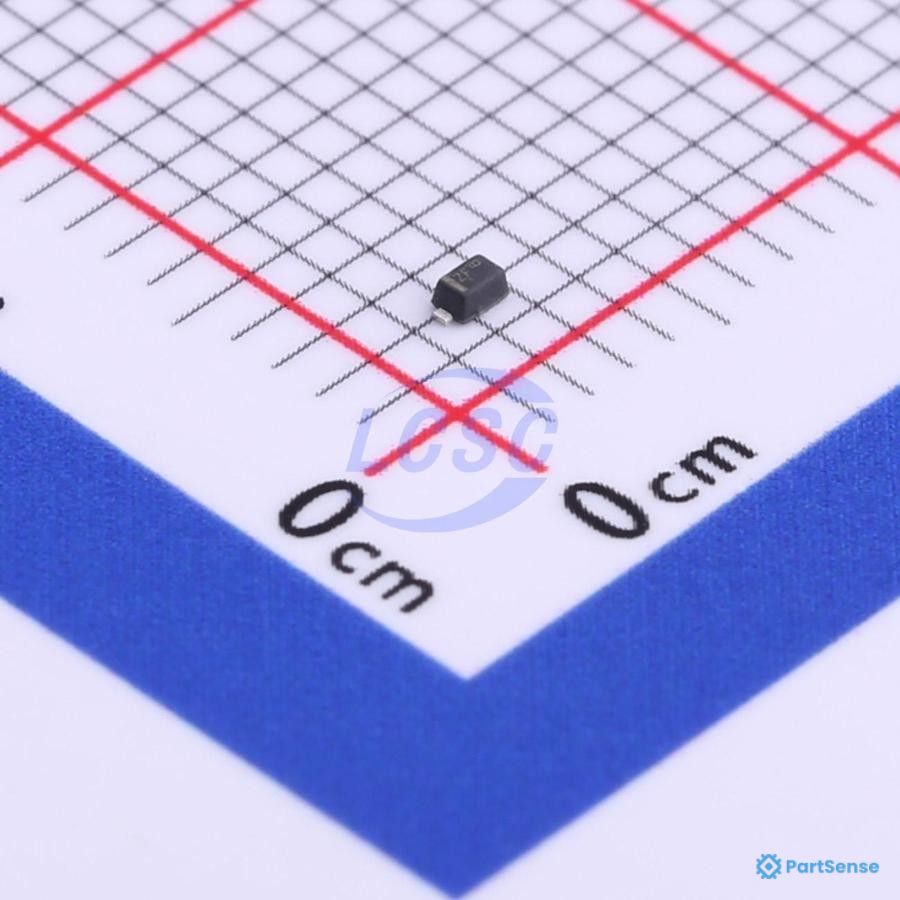

18.6V Clamp 9.4A (8/20µs) Ipp Tvs Diode Surface Mount SOD-523

Datasheet
3 distributors in stock 7 distributors MSL 1
Package / Case: SC-79; SOD-523 Voltage: 5V Current: 9.4A Power: 174W; 200mW Temp: -55°C to 150°C
Component Details
Manufacturer onsemi
MPN ESD5Z5.0T1G
PartSense # PS89413702
Availability 3 in-stock / 7 distributors
Classification
Category Protection diodes - arrays
Product Status Active
MSL Level 1

Start tracking your inventory today.

Create a free account to add this component to your workspace, manage stock levels across multiple locations, and organize your bills of materials.

  • Inventory visibility
  • Lot & batch tracking
  • Project organization
Parameter Value
Polarity
Unidirectional
Reverse stand off voltage
5V
Clamping voltage
11.6V to 18.6V
Peak pulse current
9.4A
Power
174W; 200mW
Voltage breakdown
6.2V
Reverse leakage current
50nA
Number of Channels
1
Temperature
-55°C to 150°C
Level of protection
IEC 61000-4-4
Type
ESD
Capacitance
80pF
Unidirectional channels
1
Power peak pulse
174W
Power line protection
No
Applications
General Purpose
Capacitance @ frequency
80pF@1MHz
Mounting Type
SMD
Package
SC-79; SOD-523
Type of diode
TVS
Semiconductor structure
Unidirectional
Packaging
Reel; Tape
Version
ESD
Operating Voltage
5
Pin Count
2
Automotive qualification standard
AEC-Q101
Product range
ESD5Z
Diode case style
SOD-523
Gate trigger voltage max
2.5V
Peak on state voltage
1.9V
Peak non repetitive surge current
8A
Current
10mA
Peak gate power
5W
On state rms current
600mA
Triac case style
TO-92
Gate trigger current max , igt
7mA
