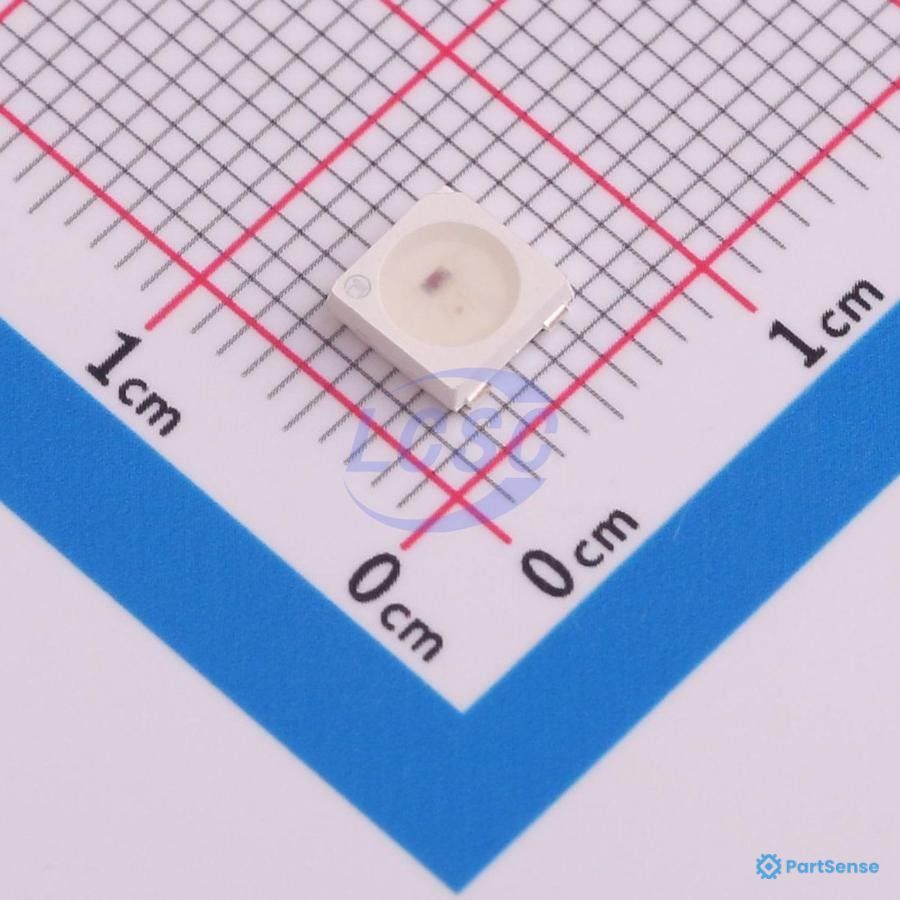

Programmable LED; RGB; SMD; PLCC4; 3.7÷5.3VDC; 5x5x1.57mm
Create a free account to add this component to your workspace, manage stock levels across multiple locations, and organize your bills of materials.
| Parameter | Value | |
|---|---|---|
| Wavelength Dominant |
471nm to 621nm
|
|
| Data Rate |
800Kbit/s
|
|
| Input Voltage |
3.7V to 5.3V
|
|
| Quiescent Current |
600µA
|
|
| Temperature |
-40°C to 65°C
|
|
| Fixed frequency pwm mode |
2kHz
|
|
| Length |
5mm
|
|
| Width |
5mm
|
|
| Thickness |
1.57mm
|
|
| Features |
Built-in power-on reset circuit; Integrated intelligent reverse connection protection function
|
|
| Wavelength Peak |
471nm to 621nm
|
|
| Luminous Intensity |
215mcd; 310mcd; 780mcd
|
|
| Transmission delay |
300ns
|
|
| Fall time |
120us
|
|
| Type of diode |
programmable LED
|
|
| Lens Color |
RGB
|
|
| Mounting Type |
SMD
|
|
| Package |
5050; PLCC4
|
|
| Operating Voltage |
3.7V to 5.3V
|
|
| Dimensions |
5mm × 5mm × 1.57mm
|
|
| Wavelength |
465nm to 630nm
|
|
| Led version |
Tricolour
|
|
| Luminosity of red colour |
0.3cd to 0.5cd
|
|
| Luminosity of blue colour |
0.2cd to 0.3cd
|
|
| Luminosity of green colour |
0.6cd to 1cd
|
|
| No of colours |
16.7m
|
|
| Kind of controller |
WS2811
|
Document details will be displayed in this section.
No RoHS/REACH compliance data available for this component yet.
Compare prices across distributors
| Quantity | LCSC | TME |
|---|---|---|
| 2 |
Not Available
at this quantity
|
$0.384
Total: $0.77
|
| 5 |
$0.097
Total: $0.49
|
$0.384
Total: $1.92
|
| 10 |
$0.097
Total: $0.97
|
$0.192
Total: $1.92
|
| 50 |
$0.0776
Total: $3.88
|
$0.192
Total: $9.60
|
| 100 |
$0.0776
Total: $7.76
|
$0.128
Total: $12.80
|
| 150 |
$0.0679
Total: $10.19
|
$0.128
Total: $19.20
|
| 500 |
$0.0607
Total: $30.35
|
$0.115
Total: $57.50
|
| 1,000 |
$0.0607
Total: $60.70
|
$0.109
Total: $109.00
|
| 2,000 |
$0.0607
Total: $121.40
|
$0.102
Total: $204.00
|
| 2,500 |
$0.0548
Total: $137.00
|
$0.102
Total: $255.00
|
| 5,000 |
$0.0519
Total: $259.50
|
$0.096
Total: $480.00
|
| Qty | Unit Price | Total |
|---|---|---|
| 5 | $0.097 | $0.49 |
| 50 | $0.0776 | $3.88 |
| 150 | $0.0679 | $10.19 |
| 500 | $0.0607 | $30.35 |
| 2500 | $0.0548 | $137.00 |
| 5000 | $0.0519 | $259.50 |
| Qty | Unit Price | Total |
|---|---|---|
| 2 | $0.384 | $0.77 |
| 10 | $0.192 | $1.92 |
| 100 | $0.128 | $12.80 |
| 500 | $0.115 | $57.50 |
| 1000 | $0.109 | $109.00 |
| 2000 | $0.102 | $204.00 |
| 5000 | $0.096 | $480.00 |
