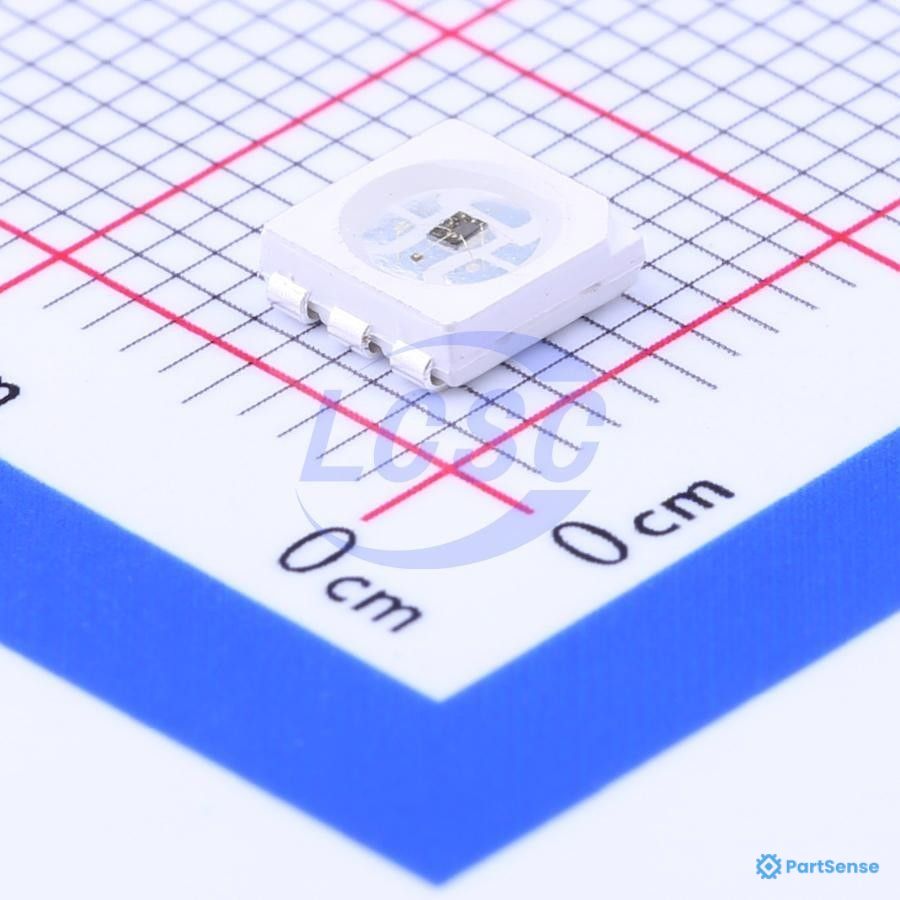

Programmable LED; RGB; SMD; PLCC6; 1.8÷2.2/3÷3.2/3÷3.4VDC
Create a free account to add this component to your workspace, manage stock levels across multiple locations, and organize your bills of materials.
| Parameter | Value | |
|---|---|---|
| Wavelength Dominant |
465nm to 475nm; 520nm to 530nm; 620nm to 630nm
|
|
| Data Rate |
800Kbit/s
|
|
| Input Voltage |
4.5V to 5.5V
|
|
| Quiescent Current |
700µA
|
|
| Temperature |
-20°C to 70°C
|
|
| Fixed frequency pwm mode |
2kHz
|
|
| Length |
5.4mm
|
|
| Width |
5mm
|
|
| Thickness |
1.57mm
|
|
| Features |
Built-in one-way transmission function; Built-in power-on reset circuit
|
|
| Luminous Intensity |
1250mcd; 350mcd; 650mcd
|
|
| Transmission delay |
300ns
|
|
| Fall time |
120us
|
|
| Type of diode |
programmable LED
|
|
| Lens Color |
RGB
|
|
| Mounting Type |
SMD
|
|
| Package |
5050; PLCC6
|
|
| Operating Voltage |
1.8...2.2/3...3.2/3...3.4V DC
|
|
| Dimensions |
5mm × 5mm × 1.6mm
|
|
| Wavelength |
465nm to 630nm
|
|
| Led lens |
Transparent
|
|
| Led version |
Tricolour
|
|
| Luminosity of red colour |
0.55cd to 0.7cd
|
|
| Luminosity of blue colour |
0.2cd to 0.4cd
|
|
| Luminosity of green colour |
1.1cd to 1.4cd
|
|
| No of colours |
16.7m
|
Document details will be displayed in this section.
No RoHS/REACH compliance data available for this component yet.
Compare prices across distributors
| Quantity | LCSC | TME |
|---|---|---|
| 2 |
Not Available
at this quantity
|
$0.54
Total: $1.08
|
| 5 |
$0.1178
Total: $0.59
|
$0.54
Total: $2.70
|
| 10 |
$0.1178
Total: $1.18
|
$0.27
Total: $2.70
|
| 50 |
$0.0934
Total: $4.67
|
$0.27
Total: $13.50
|
| 100 |
$0.0934
Total: $9.34
|
$0.18
Total: $18.00
|
| 150 |
$0.0811
Total: $12.17
|
$0.18
Total: $27.00
|
| 500 |
$0.0811
Total: $40.55
|
$0.162
Total: $81.00
|
| 1,000 |
$0.0685
Total: $68.50
|
$0.153
Total: $153.00
|
| 2,000 |
$0.0612
Total: $122.40
|
$0.144
Total: $288.00
|
| 5,000 |
$0.0575
Total: $287.50
|
$0.135
Total: $675.00
|
| Qty | Unit Price | Total |
|---|---|---|
| 5 | $0.1178 | $0.59 |
| 50 | $0.0934 | $4.67 |
| 150 | $0.0811 | $12.17 |
| 1000 | $0.0685 | $68.50 |
| 2000 | $0.0612 | $122.40 |
| 5000 | $0.0575 | $287.50 |
| Qty | Unit Price | Total |
|---|---|---|
| 2 | $0.54 | $1.08 |
| 10 | $0.27 | $2.70 |
| 100 | $0.18 | $18.00 |
| 500 | $0.162 | $81.00 |
| 1000 | $0.153 | $153.00 |
| 2000 | $0.144 | $288.00 |
| 5000 | $0.135 | $675.00 |
