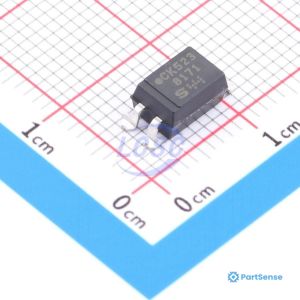

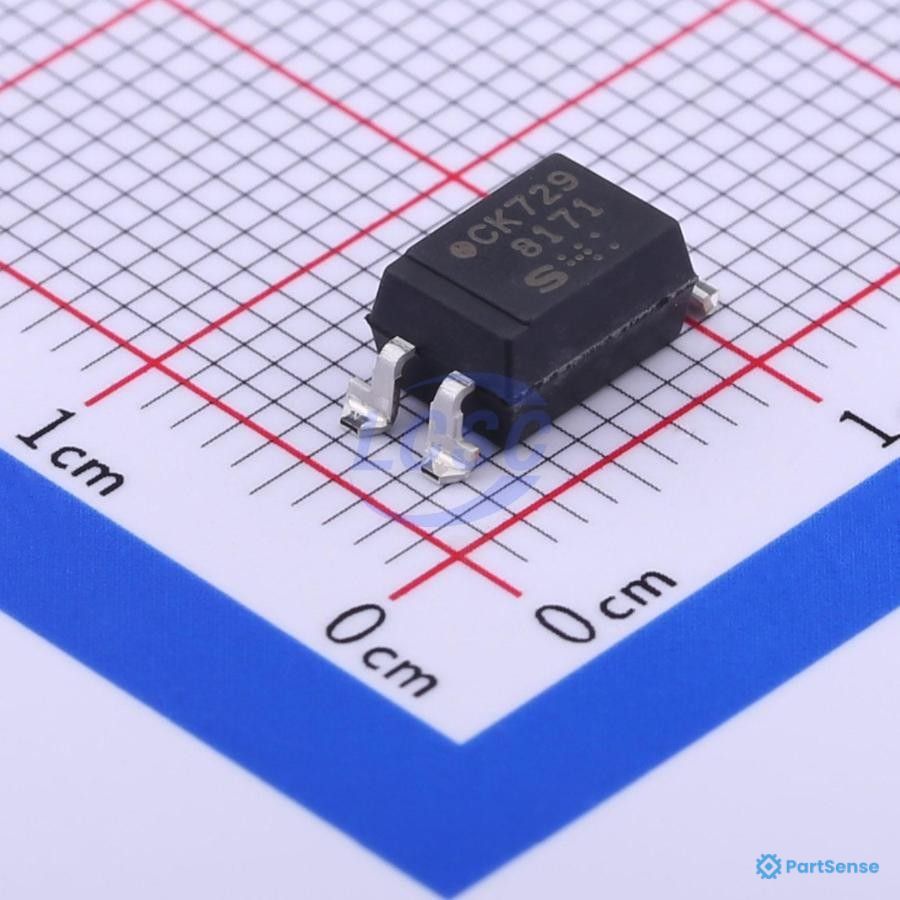

Optoisolator Transistor Output 5000Vrms 1 Channel 4-SMD
Create a free account to add this component to your workspace, manage stock levels across multiple locations, and organize your bills of materials.
| Parameter | Value | |
|---|---|---|
| Input Voltage |
DC
|
|
| Output |
Phototransistor
|
|
| Forward Voltage |
1.2V
|
|
| Output Current |
50mA
|
|
| Isolation Voltage |
5kV
|
|
| Reverse Voltage |
6V
|
|
| Load voltage |
80V
|
|
| Number of outputs |
1
|
|
| Collector-Emitter Saturation Voltage |
200mV; 200mV@1mA,10mA
|
|
| Rise time |
4µs@2mA,100Ω
|
|
| Fall time |
3us; 3µs@2mA,100Ω; 4us
|
|
| Temperature |
-30°C to 100°C
|
|
| Number of Channels |
1
|
|
| Current Transfer Ratio |
±100%@500µA; ±600%@500µA
|
|
| Type |
DC
|
|
| Output Voltage |
80V
|
|
| Current dc forward |
10mA
|
|
| Mounting Type |
SMD
|
|
| Package |
4-SMD; Gull Wing
|
Document details will be displayed in this section.
Compare prices across distributors
| Quantity | LCSC | DigiKey | Mouser |
|---|---|---|---|
| 1 |
$0.5096
Total: $0.51
|
Not Available
at this quantity
|
$1.38
Total: $1.38
|
| 10 |
$0.4003
Total: $4.00
|
Not Available
at this quantity
|
$0.966
Total: $9.66
|
| 30 |
$0.3541
Total: $10.62
|
Not Available
at this quantity
|
$0.966
Total: $28.98
|
| 100 |
$0.2956
Total: $29.56
|
Not Available
at this quantity
|
$0.706
Total: $70.60
|
| 500 |
$0.2694
Total: $134.70
|
Not Available
at this quantity
|
$0.588
Total: $294.00
|
| 1,000 |
$0.254
Total: $254.00
|
Not Available
at this quantity
|
$0.57
Total: $570.00
|
| 2,000 |
$0.254
Total: $508.00
|
Not Available
at this quantity
|
$0.483
Total: $966.00
|
| 4,000 |
$0.254
Total: $1016.00
|
Not Available
at this quantity
|
$0.353
Total: $1412.00
|
| 8,000 |
$0.254
Total: $2032.00
|
$0.4179
Total: $3343.20
|
$0.353
Total: $2824.00
|
| Qty | Unit Price | Total |
|---|---|---|
| 1 | $0.5096 | $0.51 |
| 10 | $0.4003 | $4.00 |
| 30 | $0.3541 | $10.62 |
| 100 | $0.2956 | $29.56 |
| 500 | $0.2694 | $134.70 |
| 1000 | $0.254 | $254.00 |
| Qty | Unit Price | Total |
|---|---|---|
| 8000 | $0.4179 | $3343.20 |
| Qty | Unit Price | Total |
|---|---|---|
| 1 | $1.38 | $1.38 |
| 10 | $0.966 | $9.66 |
| 100 | $0.706 | $70.60 |
| 500 | $0.588 | $294.00 |
| 1000 | $0.57 | $570.00 |
| 2000 | $0.483 | $966.00 |
| 4000 | $0.353 | $1412.00 |
