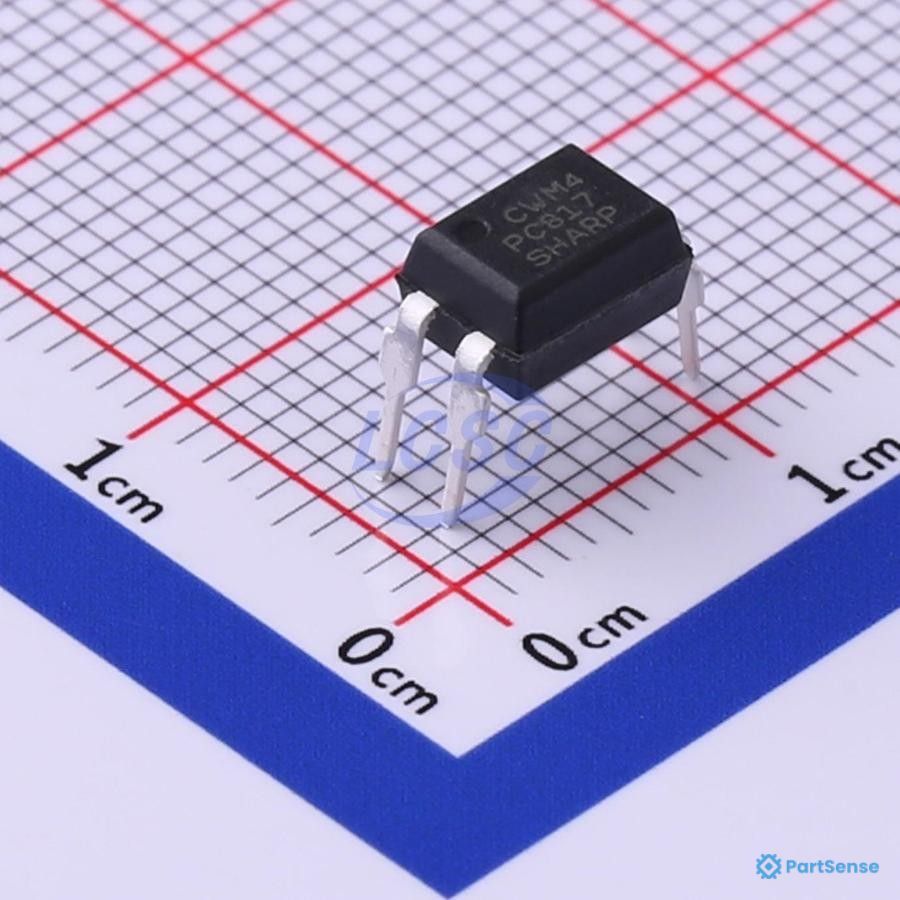

Optoisolator Transistor Output 5000Vrms 1 Channel 4-DIP
Create a free account to add this component to your workspace, manage stock levels across multiple locations, and organize your bills of materials.
| Parameter | Value | |
|---|---|---|
| Type |
DC
|
|
| Output |
Phototransistor
|
|
| Forward Voltage |
1.2V
|
|
| Output Current |
50mA
|
|
| Isolation Voltage |
5kV
|
|
| Reverse Voltage |
6V
|
|
| Load voltage |
80V
|
|
| Collector-Emitter Saturation Voltage |
200mV; 200mV@20mA,1mA
|
|
| Rise time |
4us
|
|
| Fall time |
3us; 4us
|
|
| Temperature |
-30°C to 100°C
|
|
| Current Transfer Ratio |
±50%; ±50%@5mA; ±600%; ±600%@5mA
|
|
| Power |
200mW
|
|
| Forward Current |
50mA
|
|
| Number of Channels |
1
|
|
| Output Voltage |
80V
|
|
| Current dc forward |
50mA
|
|
| Mounting Type |
THT
|
|
| Package |
4-DIP (0.300", 7.62mm)
|
Document details will be displayed in this section.
Compare prices across distributors
| Quantity | LCSC | DigiKey | Mouser |
|---|---|---|---|
| 1 |
Not Available
at this quantity
|
Not Available
at this quantity
|
$0.43
Total: $0.43
|
| 5 |
$0.095
Total: $0.48
|
Not Available
at this quantity
|
$0.43
Total: $2.15
|
| 10 |
$0.095
Total: $0.95
|
Not Available
at this quantity
|
$0.284
Total: $2.84
|
| 50 |
$0.0761
Total: $3.81
|
Not Available
at this quantity
|
$0.284
Total: $14.20
|
| 100 |
$0.0761
Total: $7.61
|
Not Available
at this quantity
|
$0.189
Total: $18.90
|
| 200 |
$0.0605
Total: $12.10
|
Not Available
at this quantity
|
$0.189
Total: $37.80
|
| 500 |
$0.0534
Total: $26.70
|
Not Available
at this quantity
|
$0.13
Total: $65.00
|
| 1,000 |
$0.0534
Total: $53.40
|
Not Available
at this quantity
|
$0.12
Total: $120.00
|
| 2,000 |
$0.0478
Total: $95.60
|
Not Available
at this quantity
|
$0.12
Total: $240.00
|
| 2,500 |
$0.0478
Total: $119.50
|
Not Available
at this quantity
|
$0.111
Total: $277.50
|
| 4,000 |
$0.0449
Total: $179.60
|
Not Available
at this quantity
|
$0.111
Total: $444.00
|
| 5,000 |
$0.0449
Total: $224.50
|
Not Available
at this quantity
|
$0.104
Total: $520.00
|
| 10,000 |
$0.0449
Total: $449.00
|
Not Available
at this quantity
|
$0.098
Total: $980.00
|
| 25,000 |
$0.0449
Total: $1122.50
|
Not Available
at this quantity
|
$0.089
Total: $2225.00
|
| 240,000 |
$0.0449
Total: $10776.00
|
$0.0693
Total: $16632.00
|
$0.089
Total: $21360.00
|
| Qty | Unit Price | Total |
|---|---|---|
| 5 | $0.095 | $0.48 |
| 50 | $0.0761 | $3.81 |
| 200 | $0.0605 | $12.10 |
| 500 | $0.0534 | $26.70 |
| 2000 | $0.0478 | $95.60 |
| 4000 | $0.0449 | $179.60 |
| Qty | Unit Price | Total |
|---|---|---|
| 240000 | $0.0693 | $16632.00 |
| Qty | Unit Price | Total |
|---|---|---|
| 1 | $0.43 | $0.43 |
| 10 | $0.284 | $2.84 |
| 100 | $0.189 | $18.90 |
| 500 | $0.13 | $65.00 |
| 1000 | $0.12 | $120.00 |
| 2500 | $0.111 | $277.50 |
| 5000 | $0.104 | $520.00 |
| 10000 | $0.098 | $980.00 |
| 25000 | $0.089 | $2225.00 |
