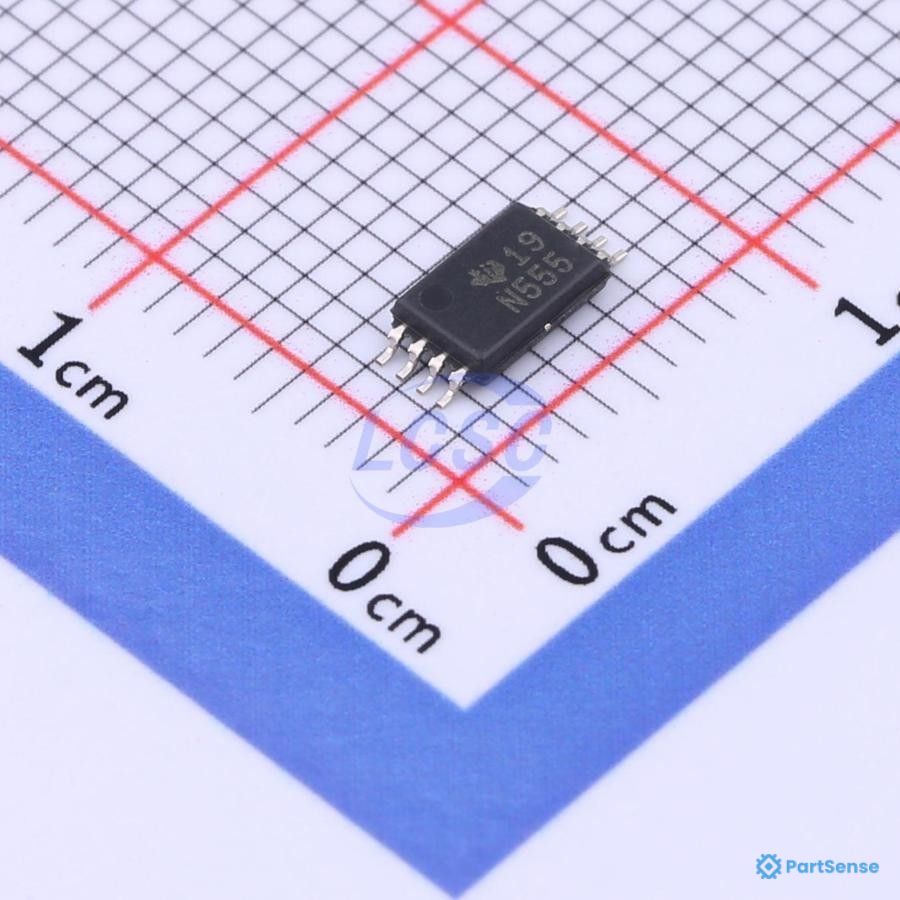

Texas Instruments NE555PW

555 Type, Timer/Oscillator (Single) IC 100kHz 8-TSSOP

Datasheet
This product is discontinued
2 distributors in stock 3 distributors MSL 1
Package / Case: 8-TSSOP (0.173", 4.40mm Width) Voltage: 4.5V to 16V Current: 200mA Temp: 0°C to 70°C
Component Details
Manufacturer Texas Instruments
MPN NE555PW
PartSense # PS05100313
Availability 2 in-stock / 3 distributors
Classification
Category Watchdog and reset circuits
MSL Level 1

Start tracking your inventory today.

Create a free account to add this component to your workspace, manage stock levels across multiple locations, and organize your bills of materials.

  • Inventory visibility
  • Lot & batch tracking
  • Project organization
Parameter Value
Timer number
1
Input Voltage
4.5V to 16V
Output Current
200mA
Current
2mA
Temperature
0°C to 70°C
Features
Adjustable duty cycle oscillation; Reset function
Type
555 Type; Timer/Oscillator (Single)
Frequency
100kHz
Current supply
10mA
Package
8-TSSOP (0.173", 4.40mm Width)
Mounting Type
SMD
