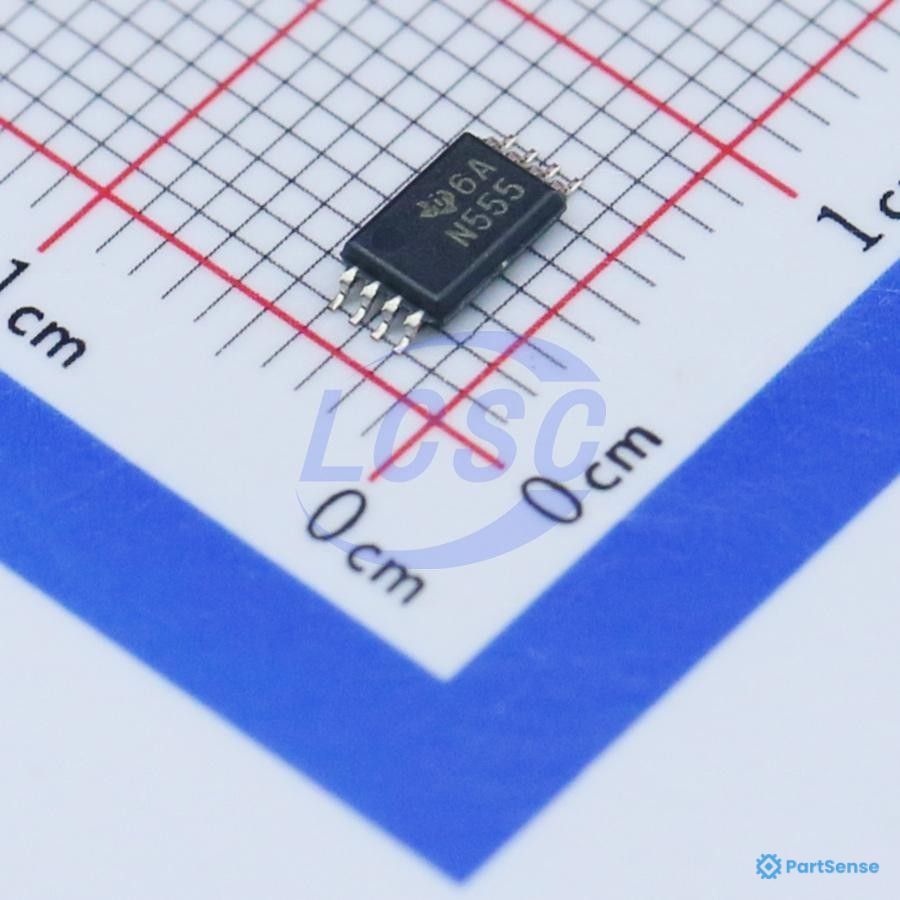

Texas Instruments NE555PWR

555 Type, Timer/Oscillator (Single) IC 100kHz 8-TSSOP

Datasheet
6 distributors in stock 7 distributors MSL 1
Package / Case: 8-TSSOP (0.173", 4.40mm Width); TSSOP8 Voltage: 4.5V to 16V Current: 200mA Temp: 0°C to 70°C
Component Details
Manufacturer Texas Instruments
MPN NE555PWR
PartSense # PS38164226
Availability 6 in-stock / 7 distributors
Classification
Category Watchdog and reset circuits
MSL Level 1

Start tracking your inventory today.

Create a free account to add this component to your workspace, manage stock levels across multiple locations, and organize your bills of materials.

  • Inventory visibility
  • Lot & batch tracking
  • Project organization
Parameter Value
Timer number
1
Input Voltage
4.5V to 16V
Output Current
200mA
Current
4mA
Temperature
0°C to 70°C
Features
占空比可调振荡; 复位功能
Type
555 Type; Timer/Oscillator (Single)
Frequency
100kHz
Current supply
10mA
Package
8-TSSOP (0.173", 4.40mm Width); TSSOP8
Mounting Type
SMD
Type of integrated circuit
Peripheral circuit
Kind of integrated circuit
Astable; Monostable; RC timer
Packaging
Reel; Tape
Number of Channels
1
Controlled voltage
10V
Supply Voltage Minimum
4.5V
Pin Count
8
Digital ic case
TSSOP
Supply Voltage Maximum
16V
