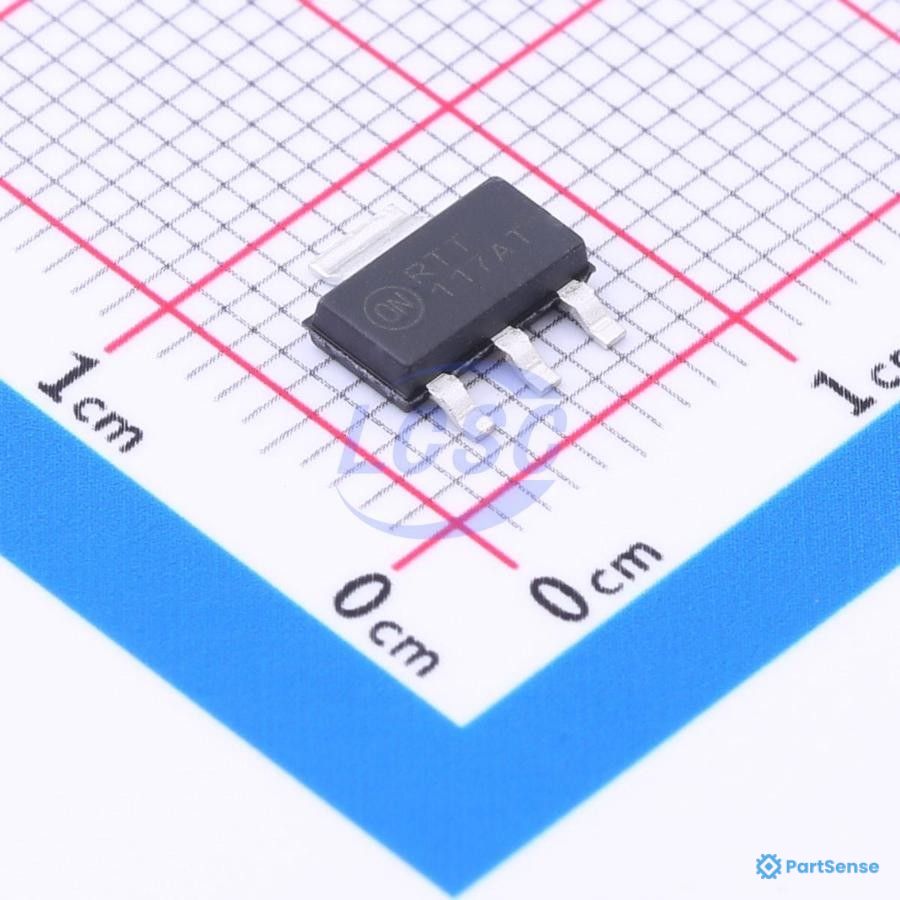

onsemi PS14328492 - Linear Voltage Regulator IC Positive Adjustable 1 Output 1A SOT-223
Images are property of their respective owners, including LCSC, DigiKey, Mouser, TME, element14, Farnell, Newark and Future Electronics
Adjustable voltage regulators

onsemi NCP1117ISTAT3G

Linear Voltage Regulator IC Positive Adjustable 1 Output 1A SOT-223

Datasheet
7 distributors in stock 7 distributors MSL 1
Package / Case: SOT223; TO-261-4 Voltage: 2.4V to 20V Current: 1A Power: 73dB@(1kHz) Tolerance: ±1% Temp: -40°C to 125°C
Component Details
Manufacturer onsemi
MPN NCP1117ISTAT3G
PartSense # PS14328492
Availability 7 in-stock / 7 distributors
Classification
Category Adjustable voltage regulators
Product Status Active
MSL Level 1

Start tracking your inventory today.

Create a free account to add this component to your workspace, manage stock levels across multiple locations, and organize your bills of materials.

  • Inventory visibility
  • Lot & batch tracking
  • Project organization
Parameter Value
Configuration
Positive
Input Voltage
2.4V to 20V
Output Voltage
1.25V to 18.8V
Output Current
1A
Power supply rejection ratio
73dB@(1kHz)
Voltage Drop
1.2V@(800mA); 1.2V@800mA
Quiescent Current
6mA
Noise
0.003%Vout
Features
Over Current Protection; Thermal shutdown
Temperature
-40°C to 125°C
Output
Adjustable
Number of outputs
1
Type of integrated circuit
Voltage regulator
Regulator Type
Adjustable; LDO; Linear
Package
SOT223; TO-261-4
Mounting Type
SMD
Series
NCP1117
Packaging
Reel; Tape
Tolerance
±1%
Number of Channels
1
Pin Count
3
Dropout voltage vdo
1.07V
Dropout voltage typ @ current
1.07V
Product range
Adj 1A LDO Voltage Regulators
No of outputs
1
Polarity
Positive Output
Number of regulators
1
Psrr
73dB (120Hz)
Grade
Automotive
Qualification
AEC-Q100
