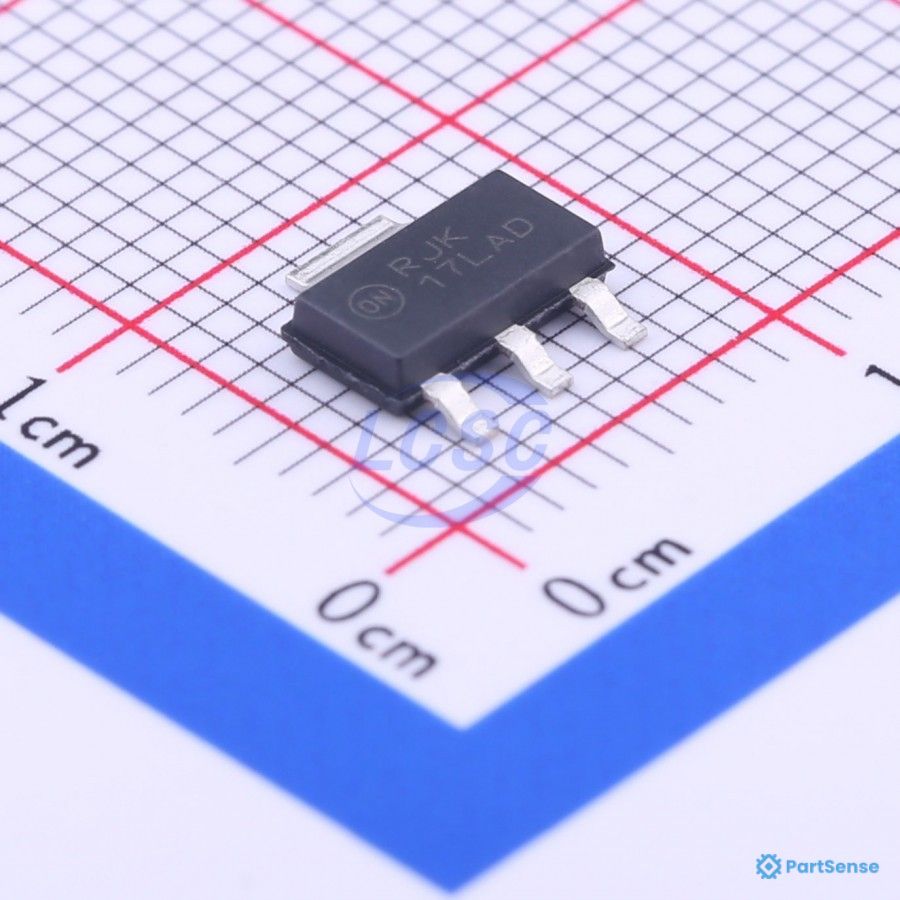

NCP1117LP Series 1 A ADJ Output LDO Positive Voltage Regulator - SOT-223
Create a free account to add this component to your workspace, manage stock levels across multiple locations, and organize your bills of materials.
| Parameter | Value | |
|---|---|---|
| Configuration |
Positive
|
|
| Input Voltage |
18V
|
|
| Output Voltage |
1.25V to 16.6V
|
|
| Output Current |
1A to 1.1A
|
|
| Power supply rejection ratio |
60dB@(120Hz)
|
|
| Voltage Drop |
1.4V@(1A)
|
|
| Quiescent Current |
50µA
|
|
| Features |
Over Current Protection; Thermal shutdown
|
|
| Temperature |
0°C to 125°C
|
|
| Output |
Adjustable
|
|
| Number of outputs |
1
|
|
| Type of integrated circuit |
Voltage regulator
|
|
| Regulator Type |
Adjustable; LDO; Linear
|
|
| Package |
SOT223; TO-261-4
|
|
| Mounting Type |
SMD
|
|
| Series |
NCP1117LP
|
|
| Packaging |
Reel; Tape
|
|
| Tolerance |
±1%
|
|
| Number of Channels |
1
|
|
| Pin Count |
4
|
|
| Dropout voltage vdo |
1.3V
|
|
| Dropout voltage typ @ current |
1.3V
|
|
| No of outputs |
1
|
|
| Polarity |
Positive Output
|
|
| Number of regulators |
1
|
|
| Psrr |
60dB (120Hz)
|
