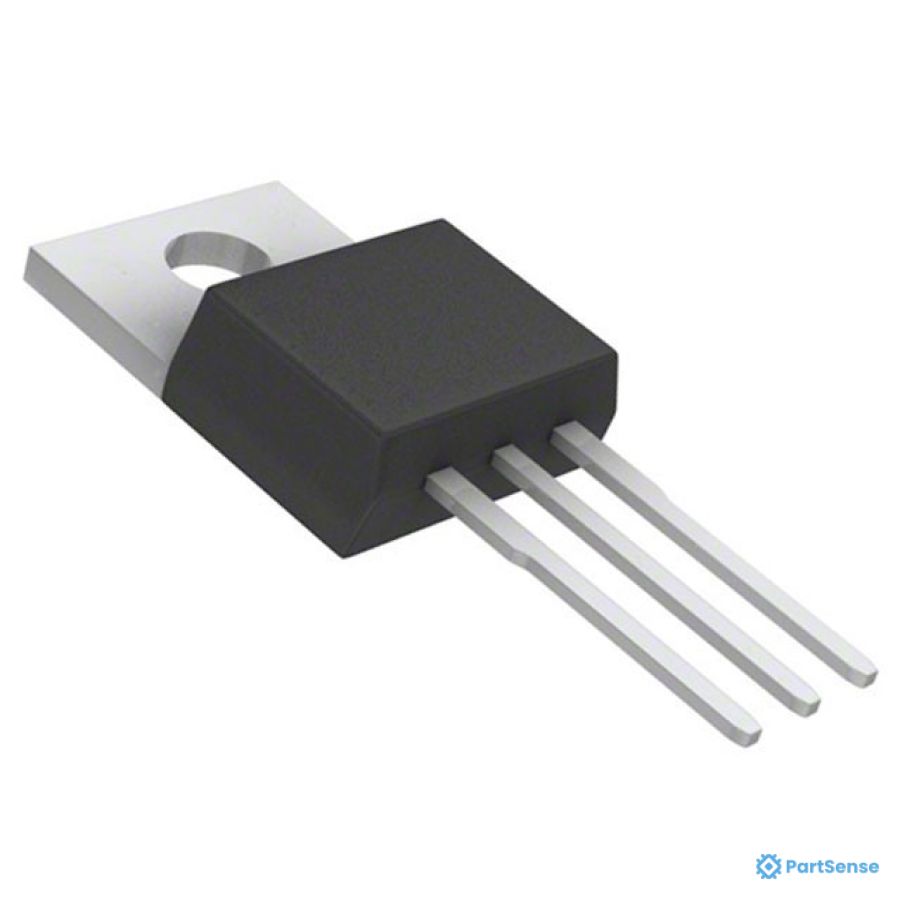

Linear Voltage Regulator IC Positive Adjustable 1 Output 800mA TO-220-3
Create a free account to add this component to your workspace, manage stock levels across multiple locations, and organize your bills of materials.
| Parameter | Value | |
|---|---|---|
| Type of integrated circuit |
Voltage regulator
|
|
| Regulator Type |
Adjustable; LDO
|
|
| Voltage Drop |
1.15V; 1.3V@800mA
|
|
| Output Voltage |
1.25V to 13.7V; 1.25V to 15V
|
|
| Output Current |
800mA
|
|
| Package |
TO220-3
|
|
| Mounting Type |
THT
|
|
| Number of Channels |
1
|
|
| Thickness |
0.46 to 0.61
|
|
| Packaging |
Tube
|
|
| Input Voltage |
2.7V to 15V
|
|
| Manufacturer standard package |
50pcs.
|
|
| Temperature |
0°C to 125°C
|
|
| Configuration |
Positive
|
|
| Output |
Adjustable
|
|
| Number of regulators |
1
|
|
| Quiescent Current |
10mA
|
|
| Psrr |
75dB (120Hz)
|
|
| Features |
Over Current; Over Temperature; Overcurrent Protection(OCP); Thermal Protection(TSD); 带使能; 自动放电功能; 防静电保护
|
|
| Power supply rejection ratio |
75dB@(120Hz)
|
|
| Dropout voltage |
1.3V@(800mA)
|
|
| Polarity |
Positive electrode
|
|
| Number of outputs |
1
|
Document details will be displayed in this section.
Compare prices across distributors
| Quantity | LCSC | DigiKey | TME |
|---|---|---|---|
| 1 |
$0.3864
Total: $0.39
|
Not Available
at this quantity
|
$0.77
Total: $0.77
|
| 10 |
$0.3864
Total: $3.86
|
Not Available
at this quantity
|
$0.551
Total: $5.51
|
| 50 |
$0.3864
Total: $19.32
|
Not Available
at this quantity
|
$0.464
Total: $23.20
|
| 100 |
$0.3864
Total: $38.64
|
Not Available
at this quantity
|
$0.434
Total: $43.40
|
| 200 |
$0.1496
Total: $29.92
|
Not Available
at this quantity
|
$0.434
Total: $86.80
|
| 250 |
$0.1496
Total: $37.40
|
Not Available
at this quantity
|
$0.403
Total: $100.75
|
| 500 |
$0.1443
Total: $72.15
|
Not Available
at this quantity
|
$0.403
Total: $201.50
|
| 579 |
$0.1443
Total: $83.55
|
$0.52
Total: $301.08
|
$0.403
Total: $233.34
|
| 1,000 |
$0.1417
Total: $141.70
|
$0.52
Total: $520.00
|
$0.403
Total: $403.00
|
| 2,500 |
$0.1417
Total: $354.25
|
$0.52
Total: $1300.00
|
$0.348
Total: $870.00
|
| Qty | Unit Price | Total |
|---|---|---|
| 1 | $0.3864 | $0.39 |
| 200 | $0.1496 | $29.92 |
| 500 | $0.1443 | $72.15 |
| 1000 | $0.1417 | $141.70 |
| Qty | Unit Price | Total |
|---|---|---|
| 579 | $0.52 | $301.08 |
| Qty | Unit Price | Total |
|---|---|---|
| 1 | $0.77 | $0.77 |
| 10 | $0.551 | $5.51 |
| 50 | $0.464 | $23.20 |
| 100 | $0.434 | $43.40 |
| 250 | $0.403 | $100.75 |
| 2500 | $0.348 | $870.00 |
