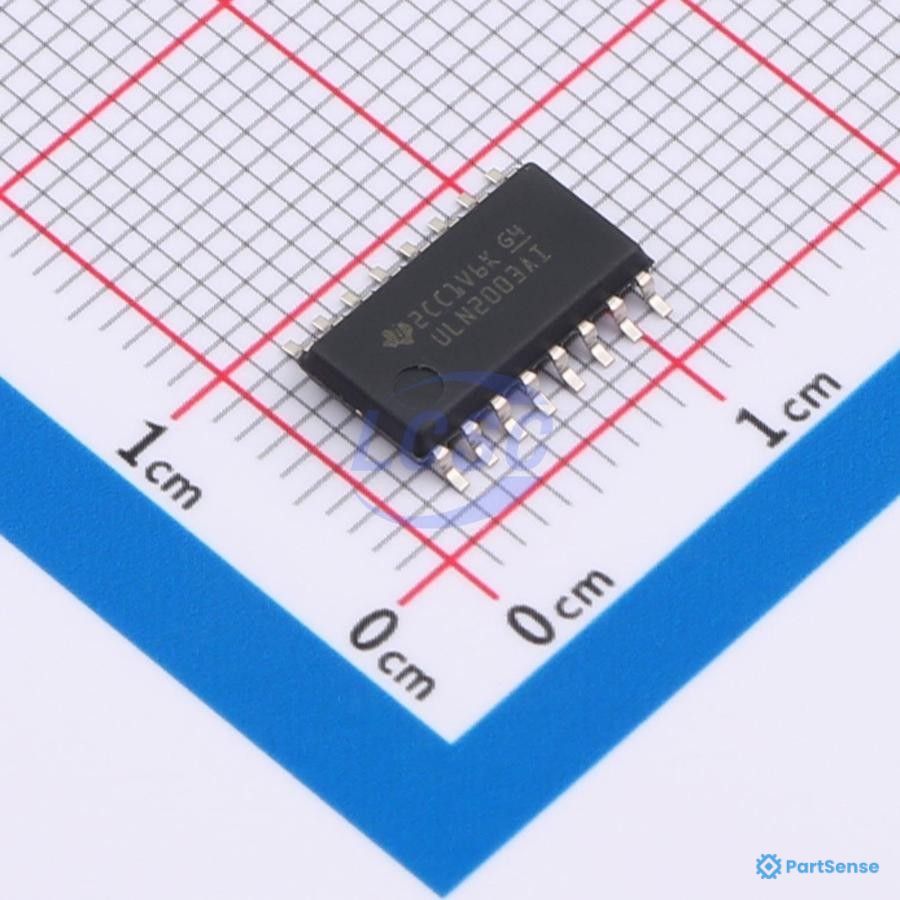

Texas Instruments PS87230729 - Bipolar (BJT) Transistor Array 7 NPN Darlington 50V 500mA Surface Mount 16-SO
Images are property of their respective owners, including LCSC, DigiKey, Mouser, TME, element14, Farnell, Newark and Future Electronics
Darlington Transistors

Texas Instruments ULN2003AINSR

Bipolar (BJT) Transistor Array 7 NPN Darlington 50V 500mA Surface Mount 16-SO

Datasheet
6 distributors in stock 6 distributors MSL 1
Package / Case: 16-SOIC (0.209", 5.30mm Width); SOP Voltage: 50; 50V Current: 500; 500mA; 50µA Temp: -40°C to 105°C; 105°C
Component Details
Manufacturer Texas Instruments
MPN ULN2003AINSR
PartSense # PS87230729
Availability 6 in-stock / 6 distributors
Classification
Category Darlington Transistors
Product Status Active
MSL Level 1
