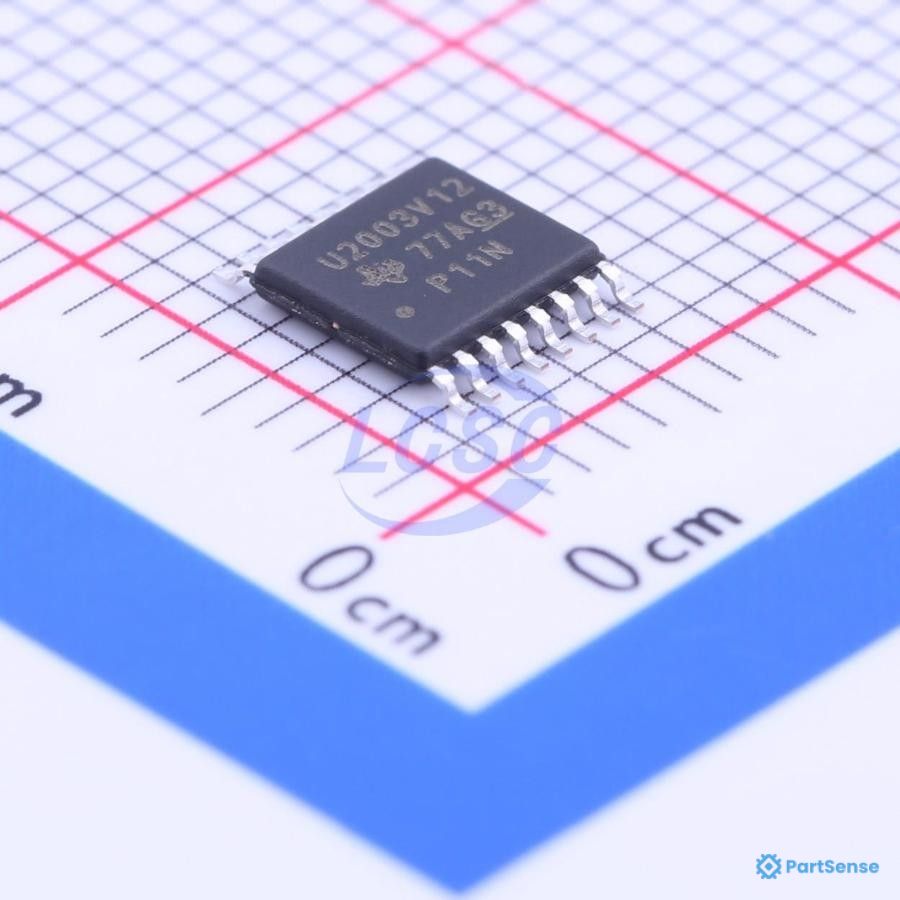

Texas Instruments PS47783339 - Bipolar (BJT) Transistor Array 7 NPN Darlington 50V 500mA Surface Mount 16-TSSOP
Images are property of their respective owners, including LCSC, DigiKey, Mouser, TME, element14, Farnell, Newark and Future Electronics
Darlington Transistors

Texas Instruments ULN2003V12PWR

Bipolar (BJT) Transistor Array 7 NPN Darlington 50V 500mA Surface Mount 16-TSSOP

Datasheet
6 distributors in stock 6 distributors MSL 1
Package / Case: 16-TSSOP; 16-TSSOP (0.173", 4.40mm Width); TSSOP Voltage: 20V; 50V Current: 140mA Temp: -40°C to 125°C
Component Details
Manufacturer Texas Instruments
MPN ULN2003V12PWR
PartSense # PS47783339
Availability 6 in-stock / 6 distributors
Classification
Category Darlington Transistors
Product Status Active
MSL Level 1
