STMicroelectronics PS11123880 - L7805 Series 1.5 A 5 V Flange Mount Three Terminal Voltage Regulator - TO-220
Images are property of their respective owners, including LCSC, DigiKey, Mouser, TME, element14, Farnell, Newark and Future Electronics
Fixed voltage regulators

STMicroelectronics L7805ABV-DG

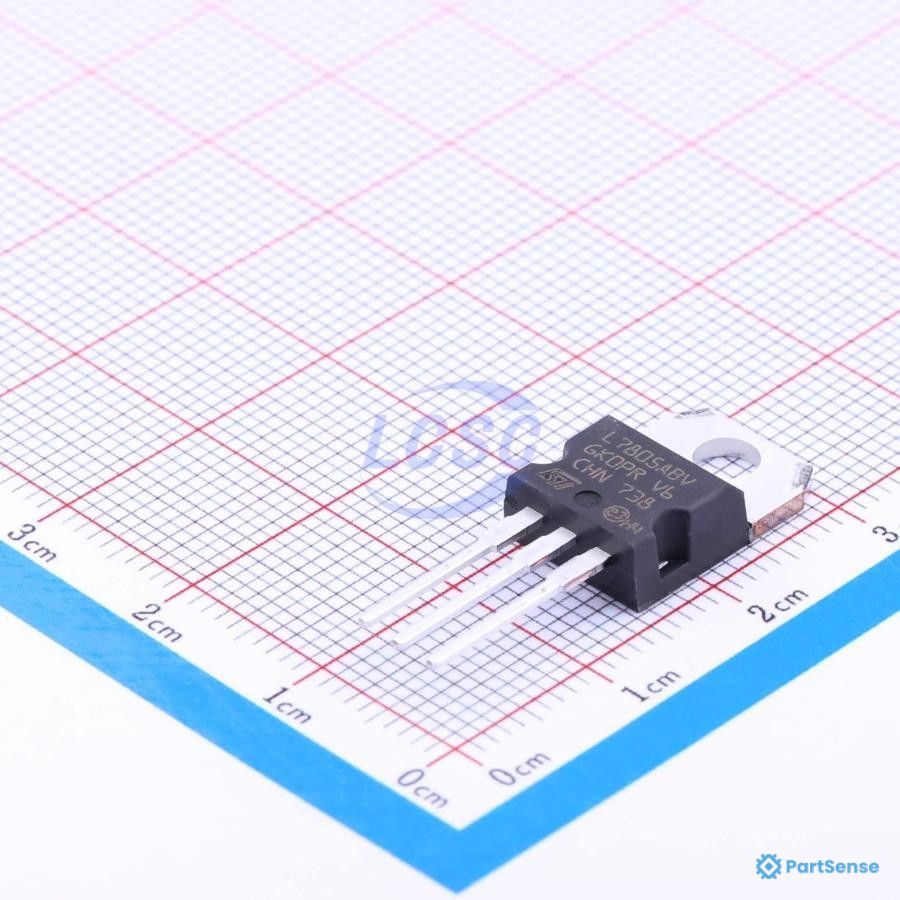

L7805 Series 1.5 A 5 V Flange Mount Three Terminal Voltage Regulator - TO-220

Datasheet
6 distributors in stock 7 distributors MSL 1
Package / Case: TO-220; TO220AB Voltage: 7.5V to 35V Current: 1.5A Power: 68dB@(120Hz) Tolerance: ±2% Temp: -40°C to 125°C
Component Details
Manufacturer STMicroelectronics
MPN L7805ABV-DG
PartSense # PS11123880
Availability 6 in-stock / 7 distributors
Classification
Category Fixed voltage regulators
Product Status Active
MSL Level 1

Start tracking your inventory today.

Create a free account to add this component to your workspace, manage stock levels across multiple locations, and organize your bills of materials.

  • Inventory visibility
  • Lot & batch tracking
  • Project organization
Parameter Value
Configuration
Positive
Input Voltage
7.5V to 35V
Output Voltage
5V
Output Current
1.5A
Power supply rejection ratio
68dB@(120Hz)
Voltage Drop
2V@(1A)
Quiescent Current
6mA
Features
Over Current Protection; Short Circuit Protection; Thermal shutdown
Temperature
-40°C to 125°C
Output
Adjustable; Fixed
Number of outputs
1
Type of integrated circuit
Voltage regulator
Regulator Type
Fixed; Linear
Package
TO-220; TO220AB
Mounting Type
THT
Series
L78
Packaging
Tube
Tolerance
±2%
Number of Channels
1
Thickness
1.23 to 1.32
No of outputs
1
Pin Count
3
Product range
5V 1.5A Linear Voltage Regulators
