STMicroelectronics L7805CDT-TR

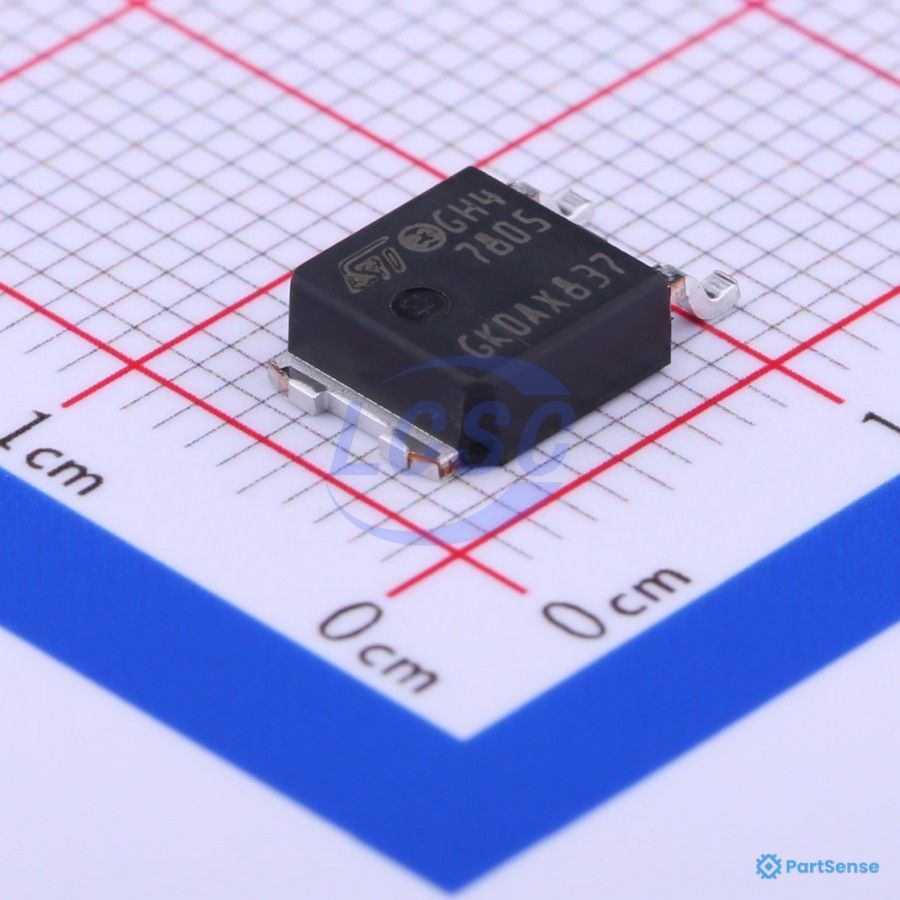

L7805 Series 1.5 A 5 V SMT Three Terminal Voltage Regulator - DPAK

Datasheet
6 distributors in stock 7 distributors
Package / Case: DPAK; TO-252 (DPAK) Voltage: 7.5V to 35V Current: 1.5A Power: 68dB@(120Hz) Tolerance: ±5% Temp: 0°C to 125°C
Component Details
Manufacturer STMicroelectronics
MPN L7805CDT-TR
PartSense # PS55623309
Availability 6 in-stock / 7 distributors
Classification
Category Fixed voltage regulators
Product Status Active

Start tracking your inventory today.

Create a free account to add this component to your workspace, manage stock levels across multiple locations, and organize your bills of materials.

  • Inventory visibility
  • Lot & batch tracking
  • Project organization
Parameter Value
Configuration
Positive
Input Voltage
7.5V to 35V
Output Voltage
5V
Output Current
1.5A
Power supply rejection ratio
68dB@(120Hz)
Voltage Drop
2V@(1A)
Quiescent Current
6mA
Features
Short Circuit Protection; Thermal shutdown
Temperature
0°C to 125°C
Output
Fixed
Number of outputs
1
Type of integrated circuit
Voltage regulator
Regulator Type
Fixed; Linear
Package
DPAK; TO-252 (DPAK)
Mounting Type
SMD
Series
L78
Packaging
Reel; Tape
Tolerance
±5%
Number of Channels
1
No of outputs
1
Pin Count
3
Product range
5V 1.5A Linear Voltage Regulators
