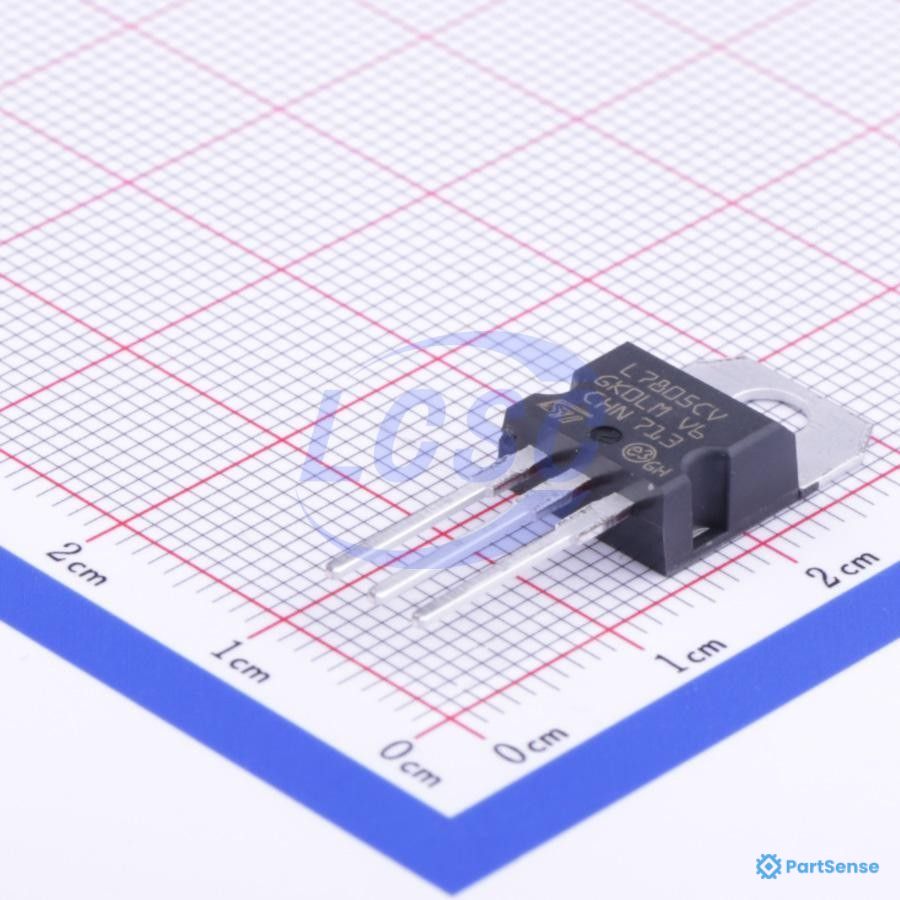

L7805 Series 5 V 1.5 A Fixed Flange Mount Voltage Regulator - TO-220-3
Create a free account to add this component to your workspace, manage stock levels across multiple locations, and organize your bills of materials.
| Parameter | Value | |
|---|---|---|
| Configuration |
Positive
|
|
| Input Voltage |
7.5V to 35V
|
|
| Output Voltage |
5V
|
|
| Output Current |
1.5A
|
|
| Power supply rejection ratio |
68dB@(120Hz)
|
|
| Voltage Drop |
2V@(1A)
|
|
| Quiescent Current |
8mA
|
|
| Features |
Over Current Protection; Short Circuit Protection; Thermal shutdown
|
|
| Temperature |
0°C to 125°C
|
|
| Output |
Fixed
|
|
| Number of outputs |
1
|
|
| Type of integrated circuit |
Voltage regulator
|
|
| Regulator Type |
Fixed; Linear
|
|
| Package |
TO-220
|
|
| Mounting Type |
THT
|
|
| Series |
L78
|
|
| Packaging |
Tube
|
|
| Tolerance |
±5%
|
|
| Number of Channels |
1
|
|
| Thickness |
0.51 to 0.6
|
|
| No of outputs |
1
|
|
| Pin Count |
3
|
|
| Product range |
5V 1.5A Linear Voltage Regulators
|
