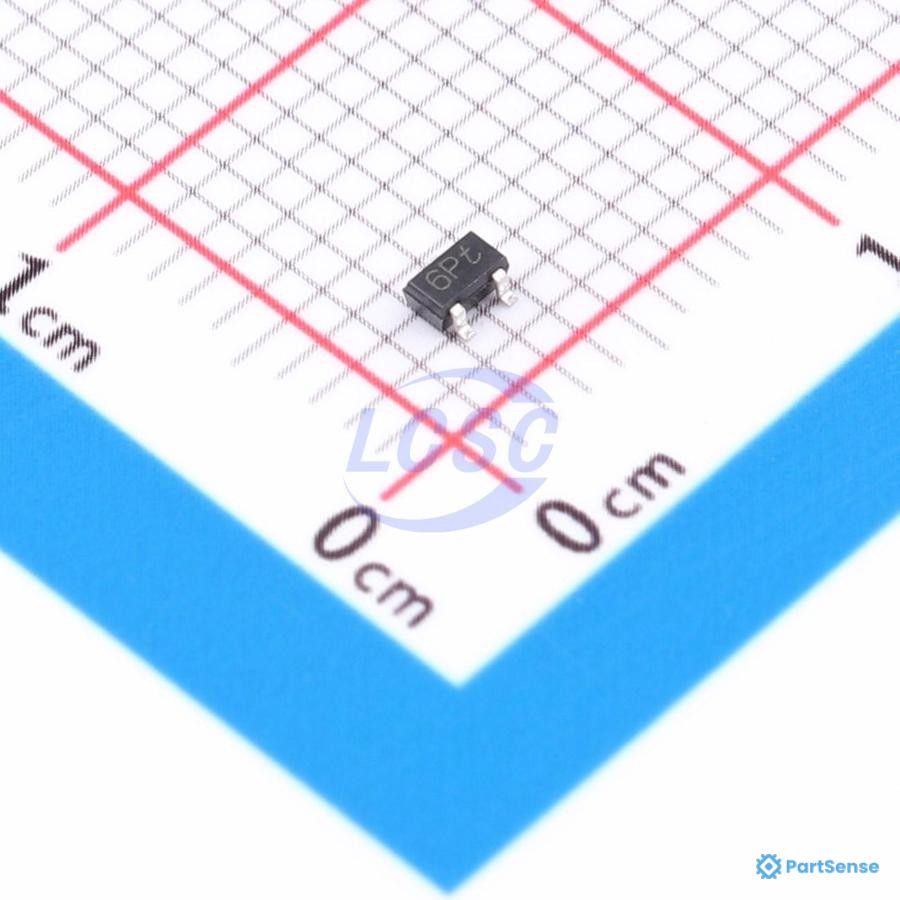

Nexperia BSS138AKW-QX

N-Channel 60 V 220mA (Ta) 270mW (Ta), 1.3W (Tc) Surface Mount SOT-323

Datasheet
4 distributors in stock 7 distributors MSL 1
Package / Case: SC-70; SOT-323 Voltage: 10; 10V Current: 220; 220mA Power: 1.3; 1.3W; 1.3W (Tc); 270mW (Ta) Temp: -55°C to 175°C; 175; 175°C
Component Details
Manufacturer Nexperia
MPN BSS138AKW-QX
PartSense # PS38300631
Availability 4 in-stock / 7 distributors
Classification
Category MOSFETs
Product Status Active
MSL Level 1

Start tracking your inventory today.

Create a free account to add this component to your workspace, manage stock levels across multiple locations, and organize your bills of materials.

  • Inventory visibility
  • Lot & batch tracking
  • Project organization
Parameter Value
Rds test voltage
10; 10V
Gate Threshold Voltage
1.5; 1.5V
Transistor case style
SC-70
Pin Count
3; 3 Pins
Drain-Source Voltage
60; 60V
Transistor Type
N Channel
Power
1.3; 1.3W; 1.3W (Tc); 270mW (Ta)
Qualification
AEC-Q101
Drain Current
220; 220mA
Temperature
-55°C to 175°C; 175; 175°C
Mounting Type
SMD
Drain-Source On-State Resistance
3Ω
Type
N-Channel
Technology
MOSFET (Metal Oxide)
Drive voltage
10V; 2.5V
Rds on @ id, vgs
3Ω
Vgs @ id
1.5V@250µA
Gate Charge
315pC@10V
Gate-Source Voltage
±20V
Input capacitance @ vds
9pF@30V
Grade
Automotive
Package
SC-70; SOT-323

Where to Buy the BSS138AKW-QX
