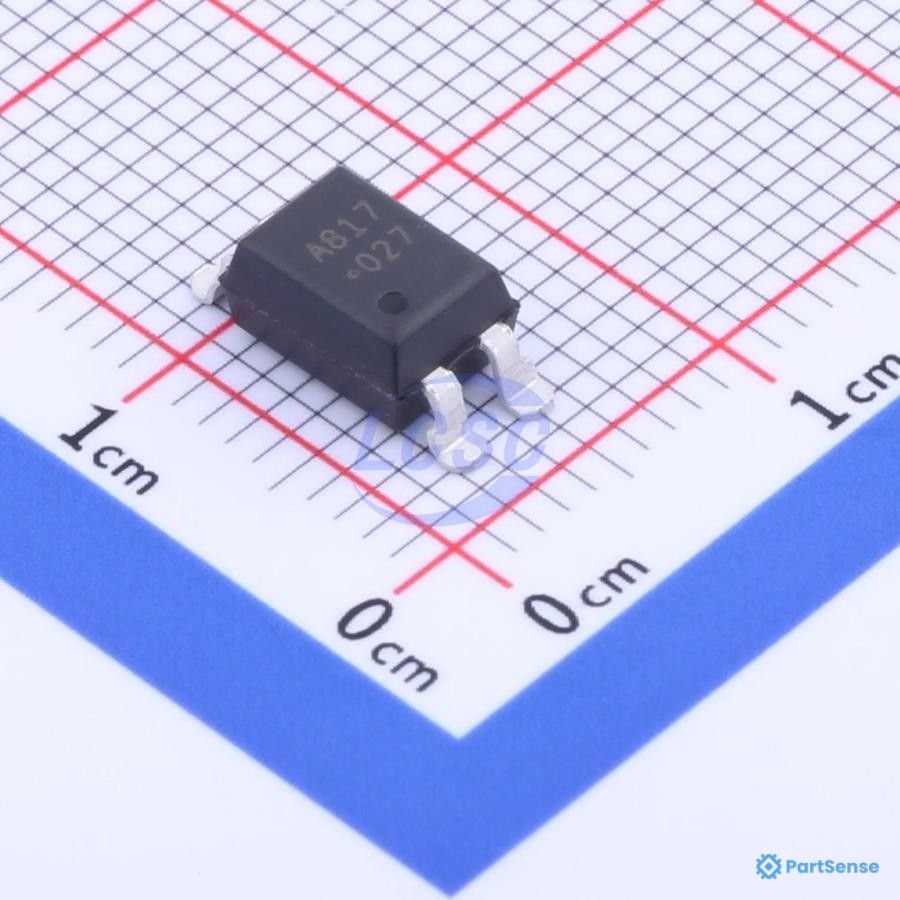

Broadcom PS72027410 - Optocoupler, Transistor Output, 1 Channel, Surface Mount DIP, 4 Pins, 50 mA, 5 kV, 50 %
Images are property of their respective owners, including LCSC, DigiKey, Mouser, TME, element14, Farnell, Newark and Future Electronics
Optocouplers - analog output

Broadcom HCPL-817-300E

Optocoupler, Transistor Output, 1 Channel, Surface Mount DIP, 4 Pins, 50 mA, 5 kV, 50 %

Datasheet
3 distributors in stock 5 distributors MSL 1
Package / Case: 4-SMD; Gull Wing; Surface Mount DIP Voltage: 5; 5kV Current: 50; 50mA Temp: -30°C to 100°C
Component Details
Manufacturer Broadcom
MPN HCPL-817-300E
PartSense # PS72027410
Availability 3 in-stock / 5 distributors
Classification
Category Optocouplers - analog output
Product Status Active
MSL Level 1
