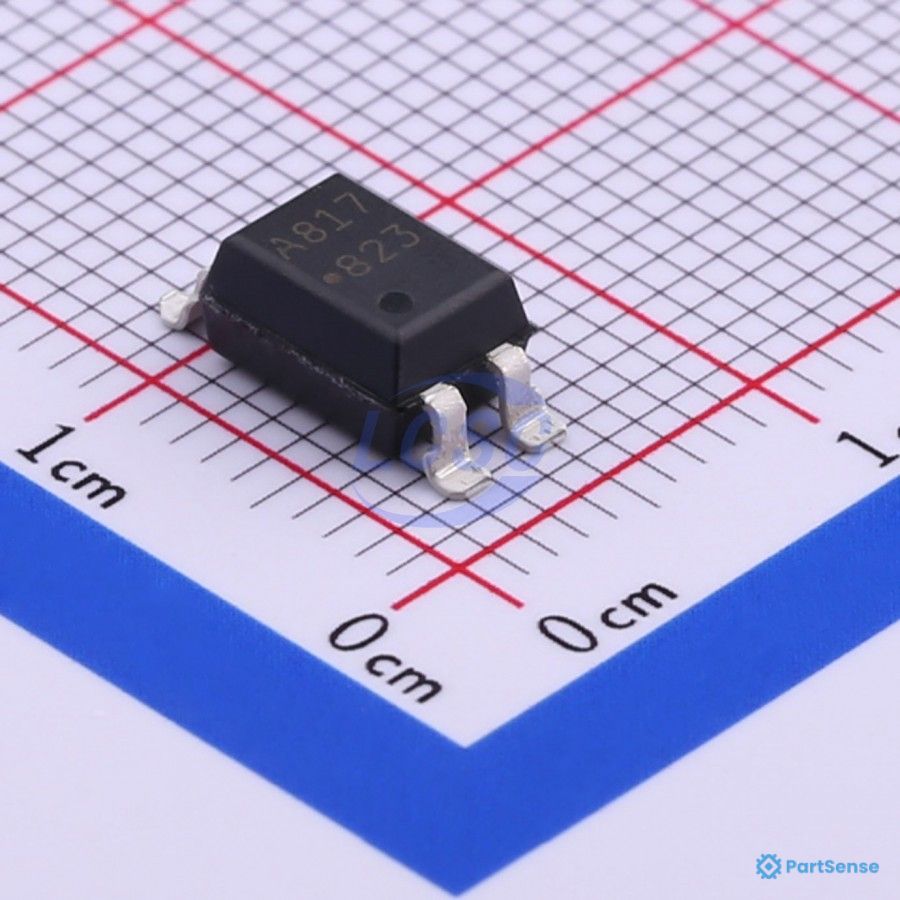

Broadcom HCPL-817-500E

Optocoupler, Transistor Output, 1 Channel, Surface Mount DIP, 4 Pins, 50 mA, 5 kV, 50 %

Datasheet
6 distributors in stock 6 distributors MSL 1
Package / Case: 4-SMD; Gull wing 4; Surface Mount DIP Voltage: 5; 5kV Current: 50; 50mA Temp: -30°C to 100°C
Component Details
Manufacturer Broadcom
MPN HCPL-817-500E
PartSense # PS53201455
Availability 6 in-stock / 6 distributors
Classification
Category Optocouplers - analog output
Product Status Active
MSL Level 1

Start tracking your inventory today.

Create a free account to add this component to your workspace, manage stock levels across multiple locations, and organize your bills of materials.

  • Inventory visibility
  • Lot & batch tracking
  • Project organization
Parameter Value
No of channels
1 Channel
Ctr min
50; 50 %
Package
4-SMD; Gull wing 4; Surface Mount DIP
Forward Current
50; 50mA
Isolation Voltage
5; 5kV
Pin Count
4; 4 Pins
Collector-Emitter Voltage
70; 70V
Type
DC
Output
Phototransistor
Forward Voltage
1.2V
Output Current
50mA
Reverse Voltage
6V
Load voltage
70V
Number of outputs
1
Collector-Emitter Saturation Voltage
100mV@1mA,20mA; 200mV
Rise time
4µs@2mA,100Ω
Fall time
3us; 4us
Temperature
-30°C to 100°C
Current Transfer Ratio
50-600%@5mA; ±50%; ±50%@5mA; ±600%; ±600%@5mA
Type of optocoupler
Optocoupler
Mounting Type
SMD
Number of Channels
1
Kind of output
Transistor
Turn on time
4us
Turn off time
3us
Collector Current
50mA
Series
HCPL-817
Load current
20mA
Max load current
50mA
Output Voltage
70V
Current dc forward
50mA
