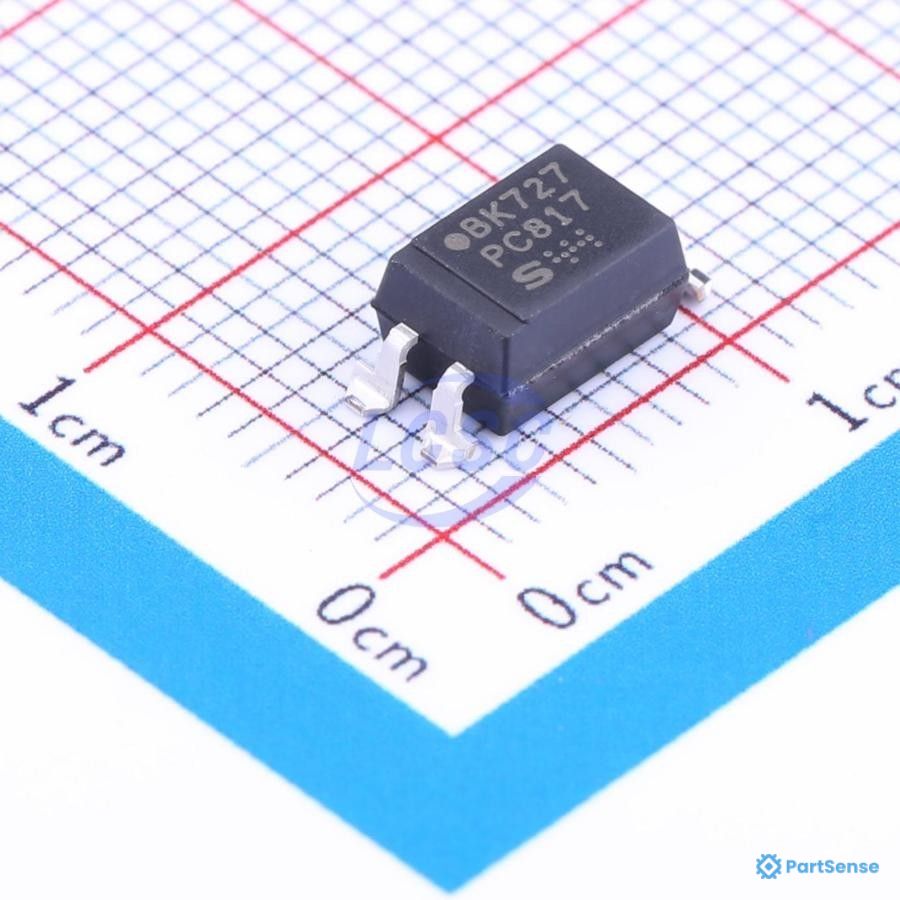

Sharp PC817X2NIP1B

Electronic Component

Datasheet
3 distributors in stock 4 distributors MSL 1
Package / Case: 4-SMD; Gull wing 4 Voltage: 5kV Current: 50mA Temp: -30°C to 100°C
Component Details
Manufacturer Sharp
MPN PC817X2NIP1B
PartSense # PS33970769
Availability 3 in-stock / 4 distributors
Classification
Category Optocouplers - analog output
MSL Level 1

Start tracking your inventory today.

Create a free account to add this component to your workspace, manage stock levels across multiple locations, and organize your bills of materials.

  • Inventory visibility
  • Lot & batch tracking
  • Project organization
Parameter Value
Type of optocoupler
Optocoupler
Mounting Type
SMD
Number of Channels
1
Kind of output
Transistor
Isolation Voltage
5kV
Collector-Emitter Voltage
80V
Package
4-SMD; Gull wing 4
Turn off time
3us
Series
PC817
Turn on time
4us
Type
DC
Output
Phototransistor
Forward Voltage
1.2V
Output Current
50mA
Reverse Voltage
6V
Load voltage
80V
Number of outputs
1
Collector-Emitter Saturation Voltage
100mV@1mA,20mA; 200mV
Rise time
4µs@2mA,100Ω
Fall time
3us; 4us
Temperature
-30°C to 100°C
Forward Current
50mA
Output Voltage
80V
Current dc forward
50mA
