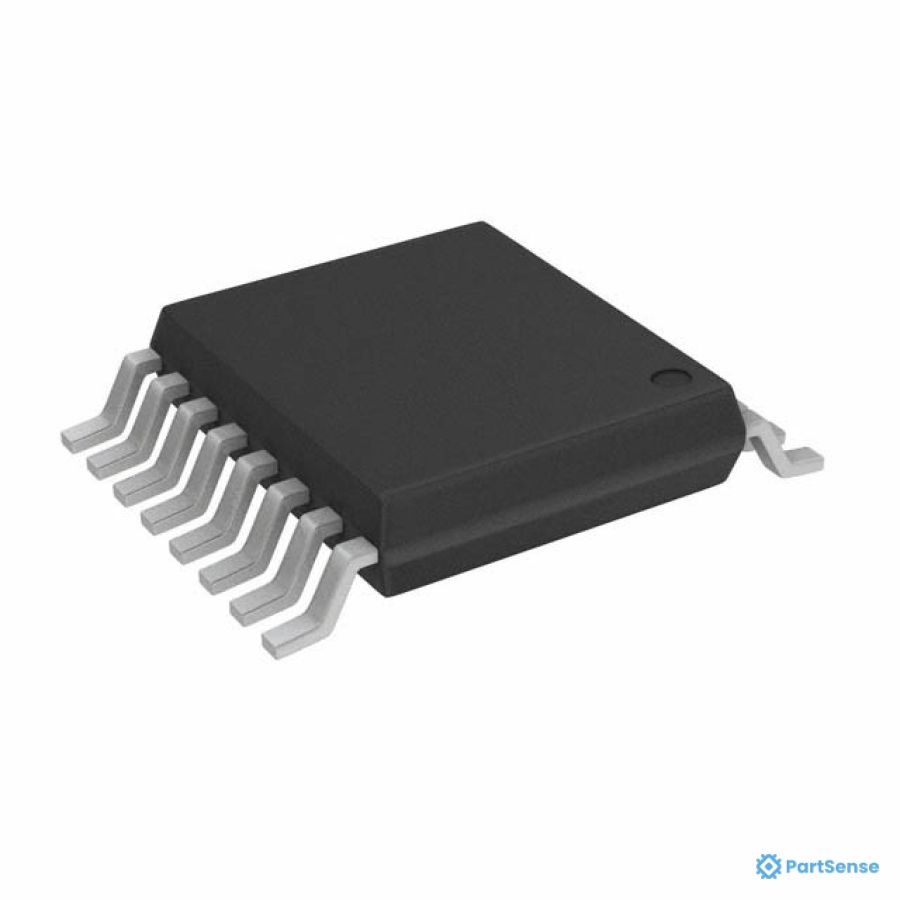

74HC595 Series 6 V 8 mA 8-Bit Shift Register w/ Output Register - TSSOP-16
Create a free account to add this component to your workspace, manage stock levels across multiple locations, and organize your bills of materials.
| Parameter | Value | |
|---|---|---|
| Type of integrated circuit |
Digital
|
|
| Core Size |
8bit; Parallel out; Serial input; Shift register
|
|
| Number of Channels |
8
|
|
| Mounting Type |
SMD
|
|
| Package |
16-TSSOP (0.173", 4.40mm Width); TSSOP16
|
|
| Series |
74HC; HC
|
|
| Temperature |
-40°C to 125°C; -40°C to 150°C
|
|
| Input Voltage |
2V to 6V
|
|
| Packaging |
Reel; Tape
|
|
| Kind of output |
3-state
|
|
| Technology |
CMOS
|
|
| Kind of input |
with Schmitt trigger
|
|
| Ic output type |
Tri State
|
|
| Supply Voltage Minimum |
2V
|
|
| No of elements |
1 Element
|
|
| Pin Count |
16
|
|
| Logic ic base number |
74595
|
|
| No of bits per element |
8 Bit
|
|
| Supply Voltage Maximum |
6V
|
|
| Shift register function |
Parallel; Serial
|
|
| Logic ic family |
74HC
|
|
| Base number |
74HC595
|
|
| Type |
Schmitt trigger; Shift Register
|
|
| Output |
Tri-State
|
|
| Number of elements |
1
|
|
| Number of bits per element |
8
|
|
| Function |
Serial to Parallel; Serial-to-Serial or Parallel
|
|
| Frequency |
108MHz
|
|
| Power |
500mW
|
|
| Propagation delay |
15ns@6V,50pF
|
|
| Output Current |
8mA
|
|
| Resolution |
8
|
|
| Features |
Asynchronous clear function; Output enable
|
