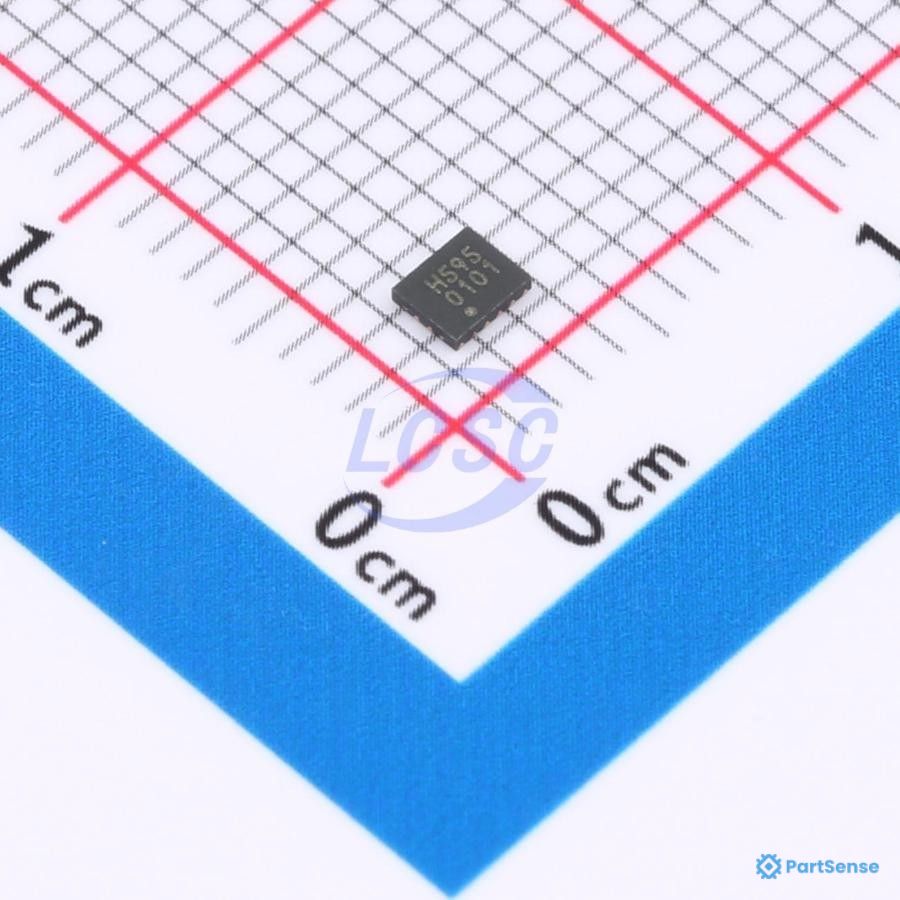

Nexperia PS43242607 - Shift Shift Register 1 Element 8 Bit 16-DHXQFN (2x2.4)
Images are property of their respective owners, including LCSC, DigiKey, Mouser, TME, element14, Farnell, Newark and Future Electronics
Shift registers

Nexperia 74HC595BZX

Shift Shift Register 1 Element 8 Bit 16-DHXQFN (2x2.4)

Datasheet
7 distributors in stock 8 distributors MSL 1
Package / Case: 16-DHXQFN (2x2.4); 16-XFQFN Exposed Pad; DHXQFN16 Voltage: 2V to 6V Current: 35mA Power: 250mW Temp: -40°C to 125°C
Component Details
Manufacturer Nexperia
MPN 74HC595BZX
PartSense # PS43242607
Availability 7 in-stock / 8 distributors
Classification
Category Shift registers
Product Status Active
MSL Level 1

Start tracking your inventory today.

Create a free account to add this component to your workspace, manage stock levels across multiple locations, and organize your bills of materials.

  • Inventory visibility
  • Lot & batch tracking
  • Project organization
Parameter Value
Function
Serial-to-Serial or Parallel
Input Voltage
2V to 6V
Frequency
100MHz
Number of elements
1
Output
Tri-State
Series
74HC
Power
250mW
Propagation delay
15ns@6V,50pF
Output Current
35mA
Resolution
8
Type
Shift Register; StandardCMOS
Temperature
-40°C to 125°C
Features
Asynchronous clear function; Output enable
Type of integrated circuit
Digital
Core Size
8bit; Parallel/serial out; Serial input; Shift register
Package
16-DHXQFN (2x2.4); 16-XFQFN Exposed Pad; DHXQFN16
Packaging
Reel; Tape
Kind of output
3-state
Ic output type
Tri State
Supply Voltage Minimum
2V
No of elements
1 Element
Pin Count
16
Logic ic base number
74595
No of bits per element
8 Bit
Supply Voltage Maximum
6V
Shift register function
Parallel; Serial
Logic ic family
74HC
Base number
74HC595
Number of bits per element
8
Mounting Type
SMD
