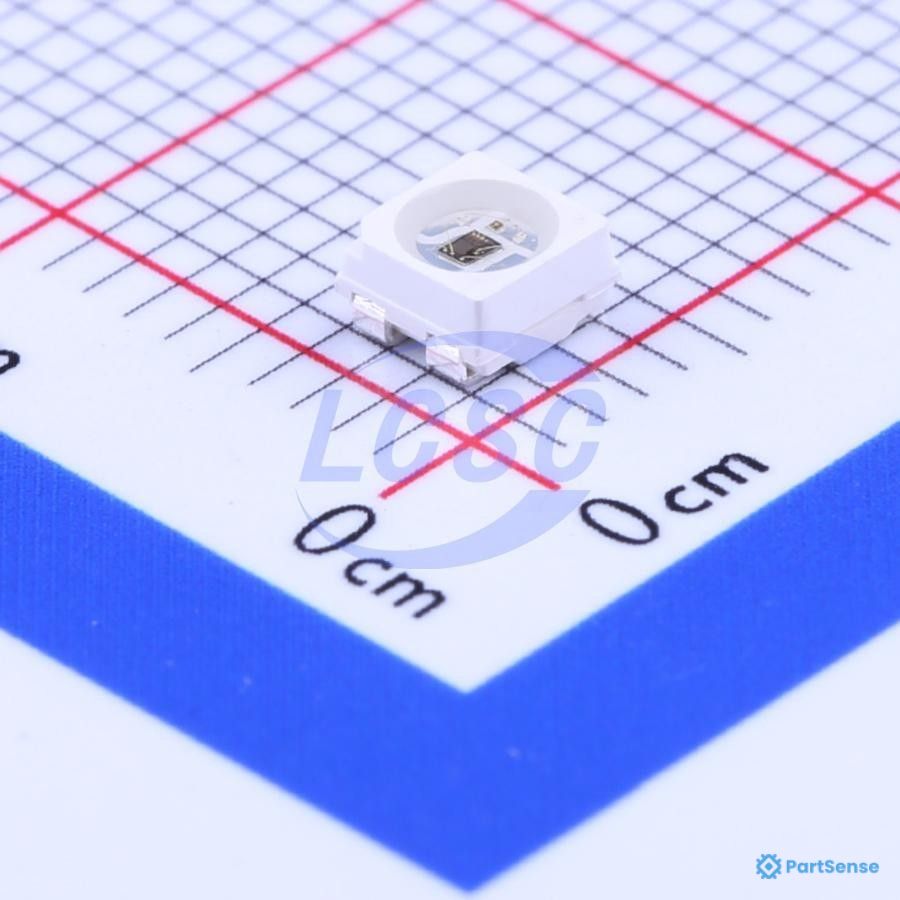

Worldsemi PS34170926 - Programmable LED; RGB; SMD; PLCC4; 3.5÷5.3VDC; 3.5x3.5x1.95mm
Images are property of their respective owners, including LCSC, DigiKey, Mouser, TME, element14, Farnell, Newark and Future Electronics
SMD colour LEDs

Worldsemi WS2812B-Mini

Programmable LED; RGB; SMD; PLCC4; 3.5÷5.3VDC; 3.5x3.5x1.95mm

Datasheet
1 distributor in stock 2 distributors
Package / Case: 3535; PLCC4 Voltage: 3.7V to 5.3V Current: 600µA Temp: -25°C to 80°C
Component Details
Manufacturer Worldsemi
MPN WS2812B-Mini
PartSense # PS34170926
Availability 1 in-stock / 2 distributors
Classification
Category SMD colour LEDs

Start tracking your inventory today.

Create a free account to add this component to your workspace, manage stock levels across multiple locations, and organize your bills of materials.

  • Inventory visibility
  • Lot & batch tracking
  • Project organization
Parameter Value
Wavelength Dominant
465nm to 475nm; 515nm to 525nm; 620nm to 630nm
Data Rate
800Kbit/s
Input Voltage
3.7V to 5.3V
Quiescent Current
600µA
Overload Voltage
4kV
Fixed frequency pwm mode
2kHz
Width
3.46mm
Thickness
1.9mm
Features
Built-in power-on reset circuit; Integrated intelligent reverse connection protection function
Luminous Intensity
215mcd; 310mcd; 780mcd
Transmission delay
300ns
Fall time
120us
Type of diode
programmable LED
Lens Color
RGB
Mounting Type
SMD
Package
3535; PLCC4
Operating Voltage
3.5V to 5.3V
Dimensions
3.5mm × 3.5mm × 1.95mm
Wavelength
465nm to 630nm
Led lens
Transparent
Led version
Tricolour
Luminosity of red colour
600mcd
Luminosity of blue colour
300mcd
Luminosity of green colour
1200mcd
No of colours
16.7m
Temperature
-25°C to 80°C

Where to Buy the WS2812B-Mini

Price Comparison

Compare prices across distributors

Quantity LCSC TME
2
Not Available
at this quantity
$0.40
Total: $0.80
5
$0.108
Total: $0.54
$0.40
Total: $2.00
10
$0.108
Total: $1.08
$0.234
Total: $2.34
50
$0.0844
Total: $4.22
$0.193
Total: $9.65
150
$0.0726
Total: $10.89
$0.193
Total: $28.95
250
$0.0726
Total: $18.15
$0.153
Total: $38.25
900
$0.0638
Total: $57.42
$0.128
Total: $115.20
2,700
$0.0567
Total: $153.09
$0.113
Total: $305.10
5,400
$0.0532
Total: $287.28
$0.113
Total: $610.20
Prices shown are per unit in USD

LCSC

C114583
Out of stock
$0.108 USD
Unit price (1 pc)

Volume pricing

Qty Unit Price Total
5 $0.108 $0.54
50 $0.0844 $4.22
150 $0.0726 $10.89
900 $0.0638 $57.42
2700 $0.0567 $153.09
5400 $0.0532 $287.28
Buy from LCSC

TME

WS2812B-MINI
11,383 in stock
$0.40 USD
Unit price (1 pc)

Volume pricing

Qty Unit Price Total
2 $0.40 $0.80
10 $0.234 $2.34
50 $0.193 $9.65
250 $0.153 $38.25
900 $0.128 $115.20
2700 $0.113 $305.10
Buy from TME
