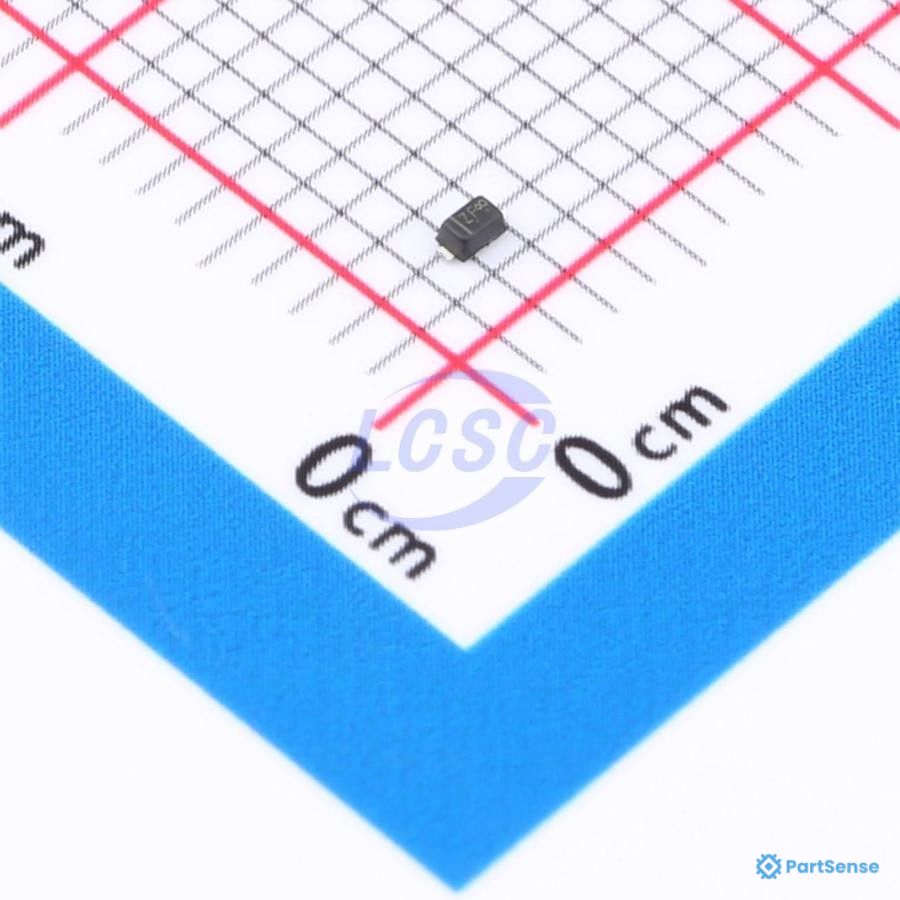

Kuu PS65904947 - ESD Protection Device, 11.6 V, SOD-523, 2 Pins, 5 V, 200 mW, ESD5Z Series
Images are property of their respective owners, including LCSC, DigiKey, Mouser, TME, element14, Farnell, Newark and Future Electronics
Unidirectional TVS SMD diodes

Kuu ESD5Z5.0T1G

ESD Protection Device, 11.6 V, SOD-523, 2 Pins, 5 V, 200 mW, ESD5Z Series

Datasheet
4 distributors in stock 7 distributors MSL 1
Package / Case: SC-79; SOD-523 Voltage: 400V; 5; 5V Current: 9.4A Power: 174W Temp: -55°C to 150°C
Component Details
Manufacturer Kuu
MPN ESD5Z5.0T1G
PartSense # PS65904947
Availability 4 in-stock / 7 distributors
Classification
Category Unidirectional TVS SMD diodes
Product Status Active
MSL Level 1
