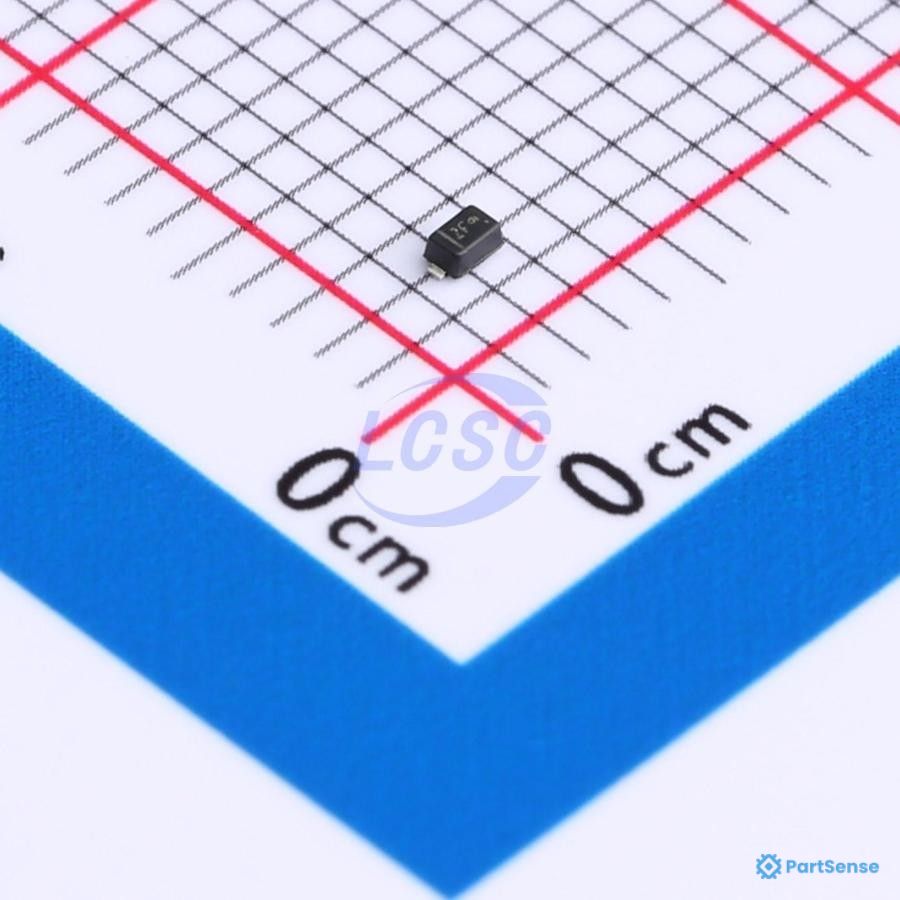

Unbranded PS36001528 - ESD Protection Device, 11.6 V, SOD-523, 2 Pins, 5 V, 200 mW, ESD5Z Series
Images are property of their respective owners, including LCSC, DigiKey, Mouser, TME, element14, Farnell, Newark and Future Electronics
Unidirectional TVS SMD diodes

Unbranded ESD5Z5.0T1G

ESD Protection Device, 11.6 V, SOD-523, 2 Pins, 5 V, 200 mW, ESD5Z Series

Datasheet
4 distributors in stock 5 distributors
Package / Case: SOD523 Voltage: 400V; 5; 5V Current: 9.4A; 9.4A@8/20us Power: 174; 174W; 174W@8/20us; 200; 200mW; 500; 500mW Temp: 110°C
Component Details
Manufacturer Unbranded
MPN ESD5Z5.0T1G
PartSense # PS36001528
Availability 4 in-stock / 5 distributors
Classification
Category Unidirectional TVS SMD diodes
Product Status Active
