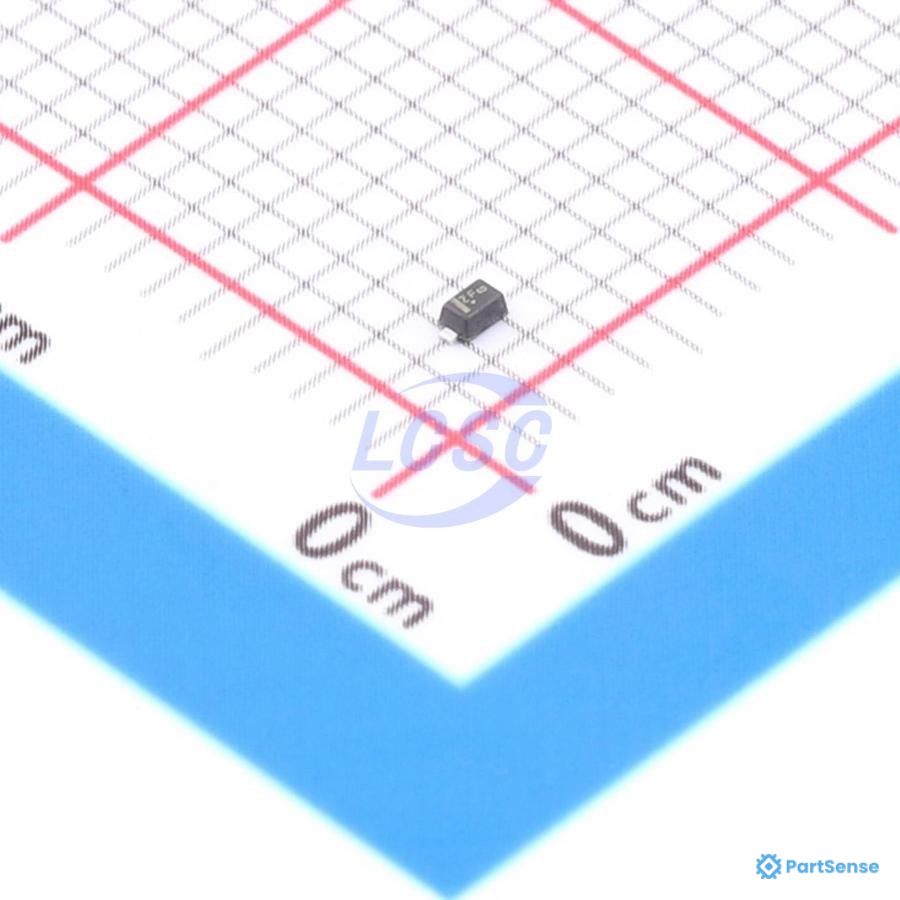

onsemi PS88408426 - Diode: TVS; 0.174kW; 6.2V; 9.4A; unidirectional; SOD523; Ch: 1; 80pF
Images are property of their respective owners, including LCSC, DigiKey, Mouser, TME, element14, Farnell, Newark and Future Electronics
Unidirectional TVS SMD diodes

onsemi ESD5Z5.0T5G

Diode: TVS; 0.174kW; 6.2V; 9.4A; unidirectional; SOD523; Ch: 1; 80pF

Datasheet
1 distributor in stock 7 distributors MSL 1
Package / Case: SC-79; SOD523 Voltage: 18.6V Current: 9.4A; 9.4A@8/20us Power: 174W; 500mW Temp: -55°C to 150°C
Component Details
Manufacturer onsemi
MPN ESD5Z5.0T5G
PartSense # PS88408426
Availability 1 in-stock / 7 distributors
Classification
Category Unidirectional TVS SMD diodes
Product Status Active
MSL Level 1
